Terex Texoma 800-95 Pressure Digger 2010 Peterbilt 367 Tri Drive

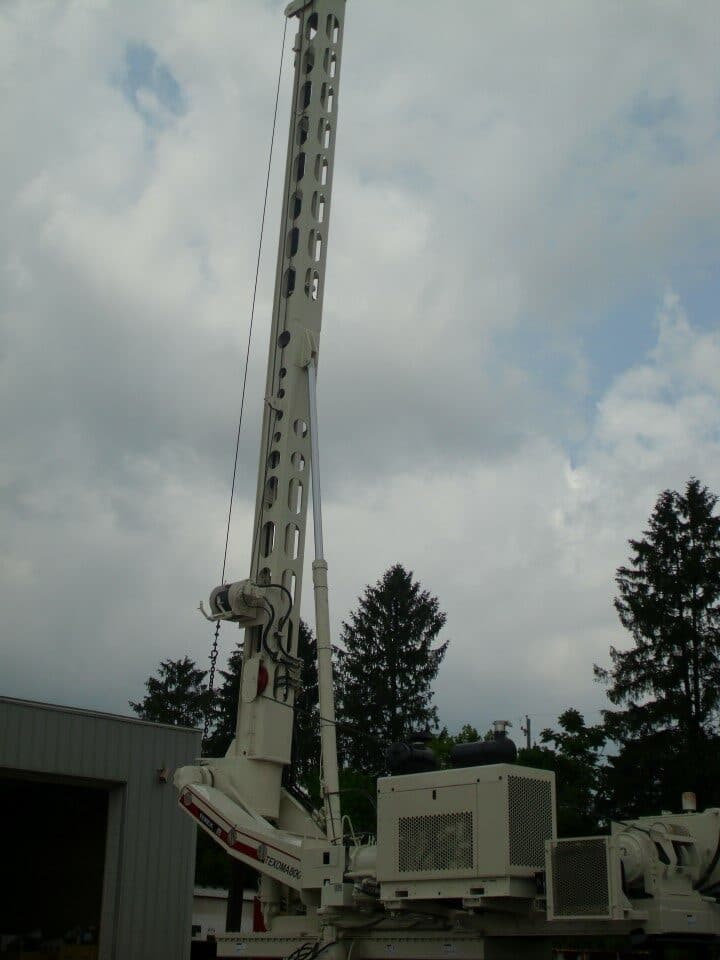

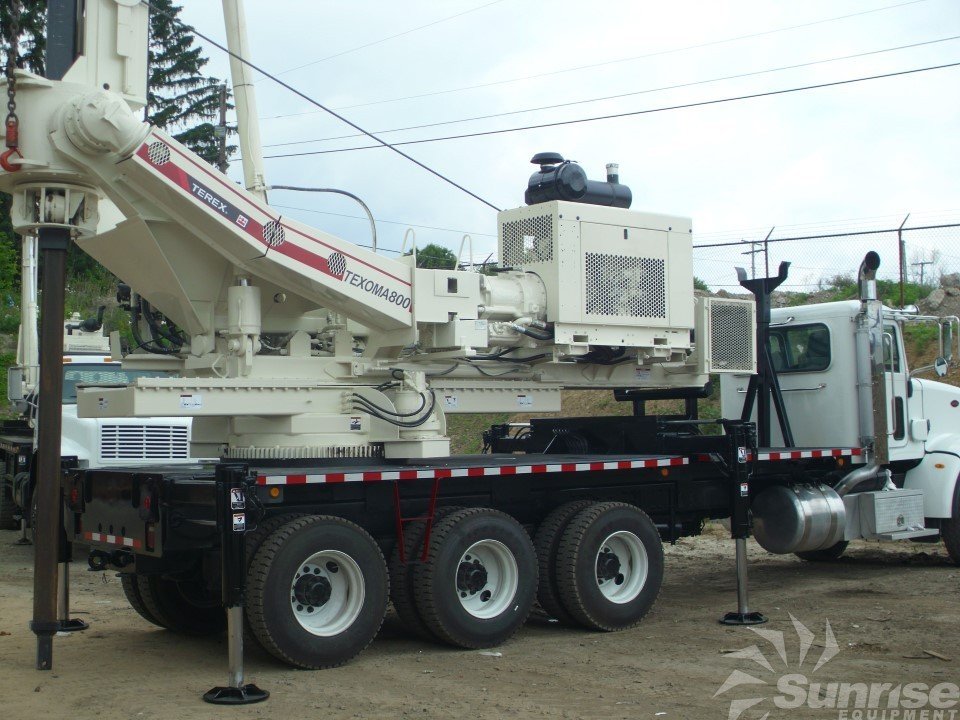

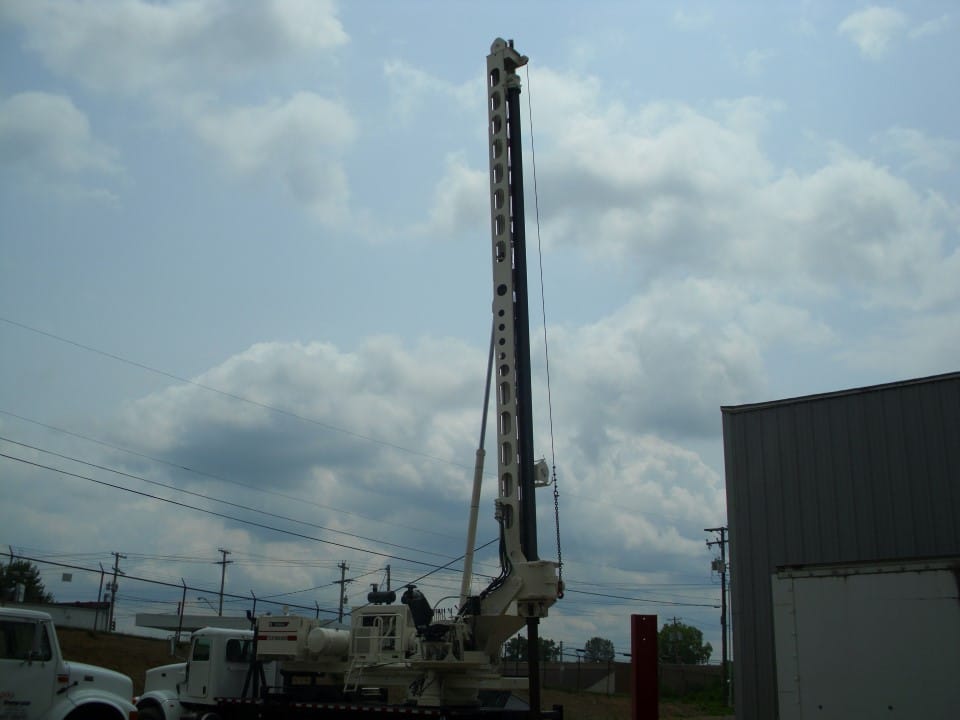

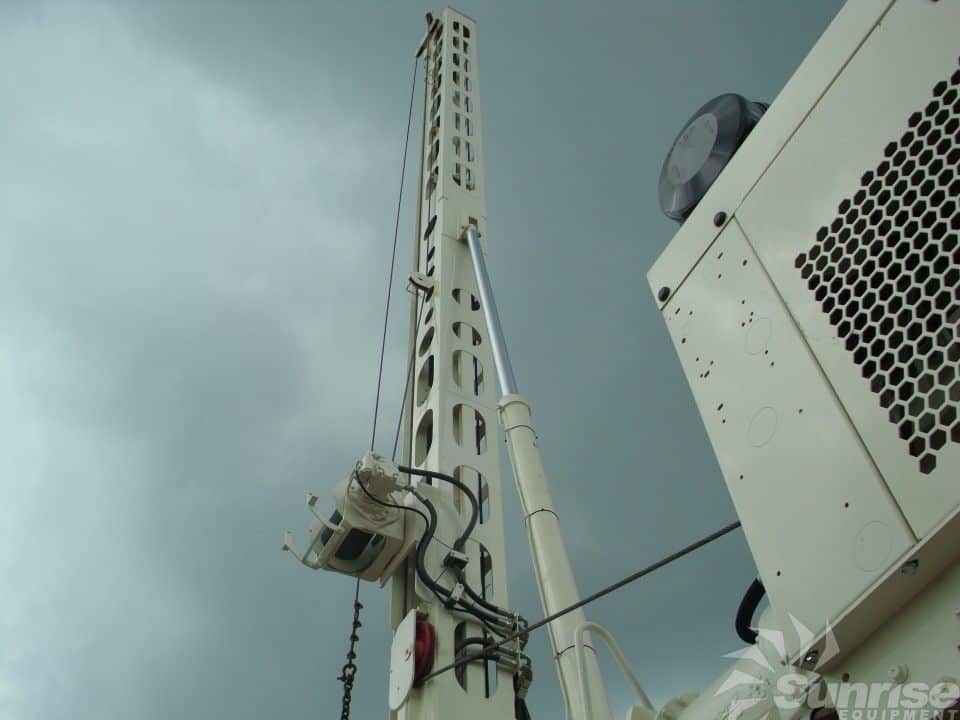

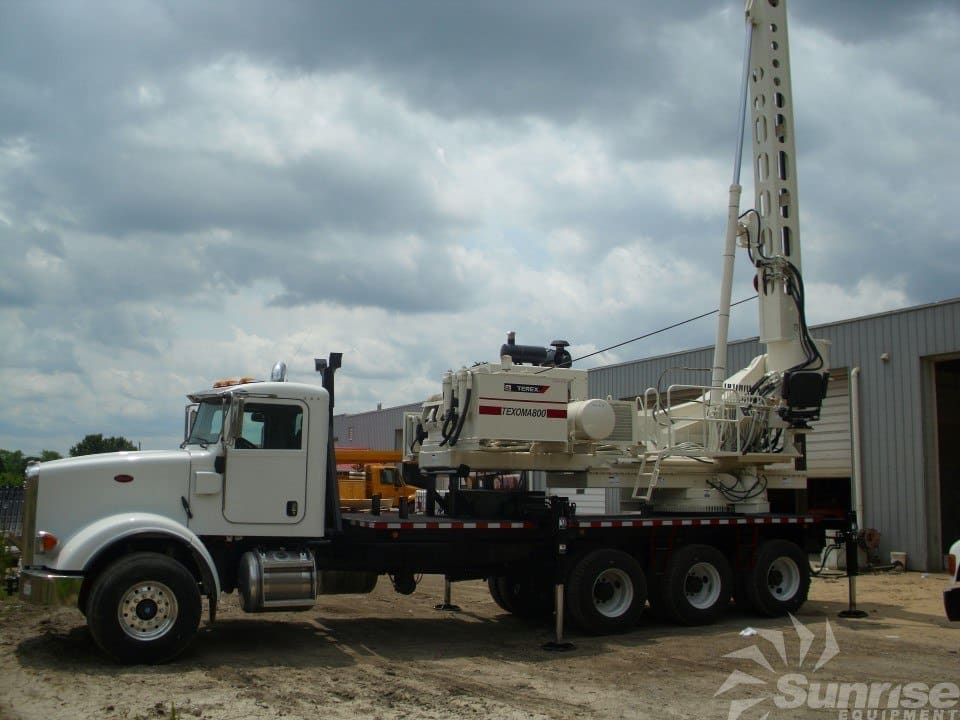

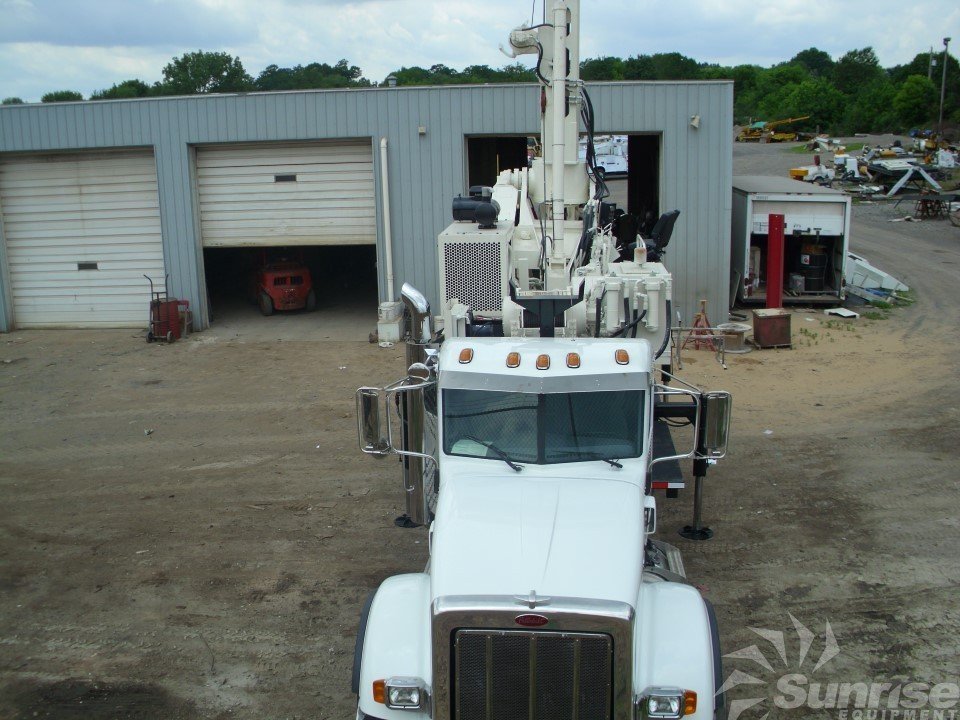

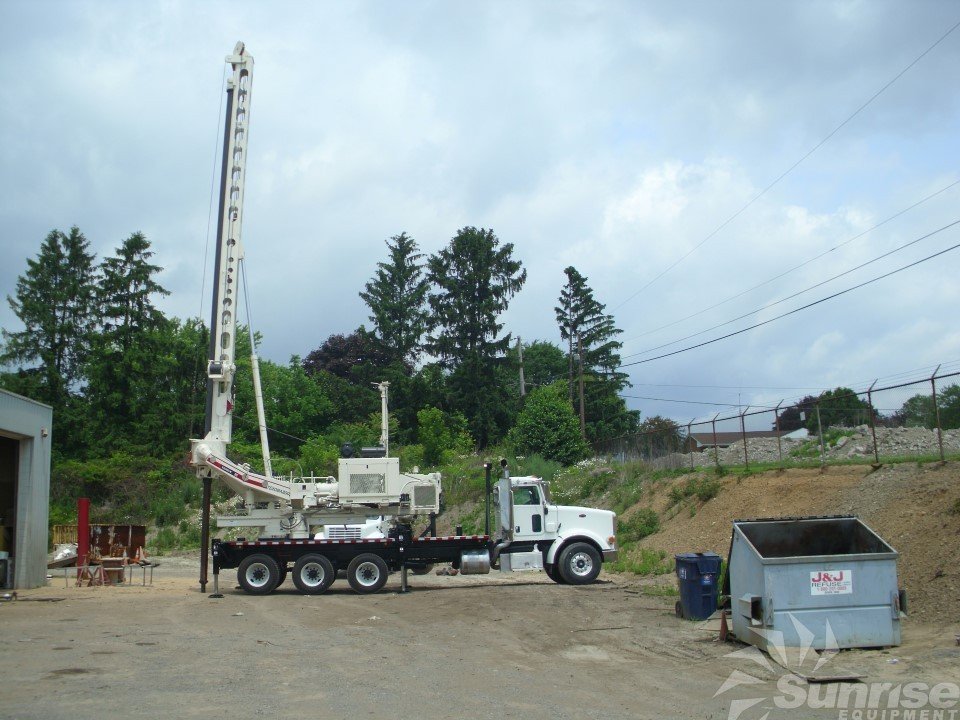

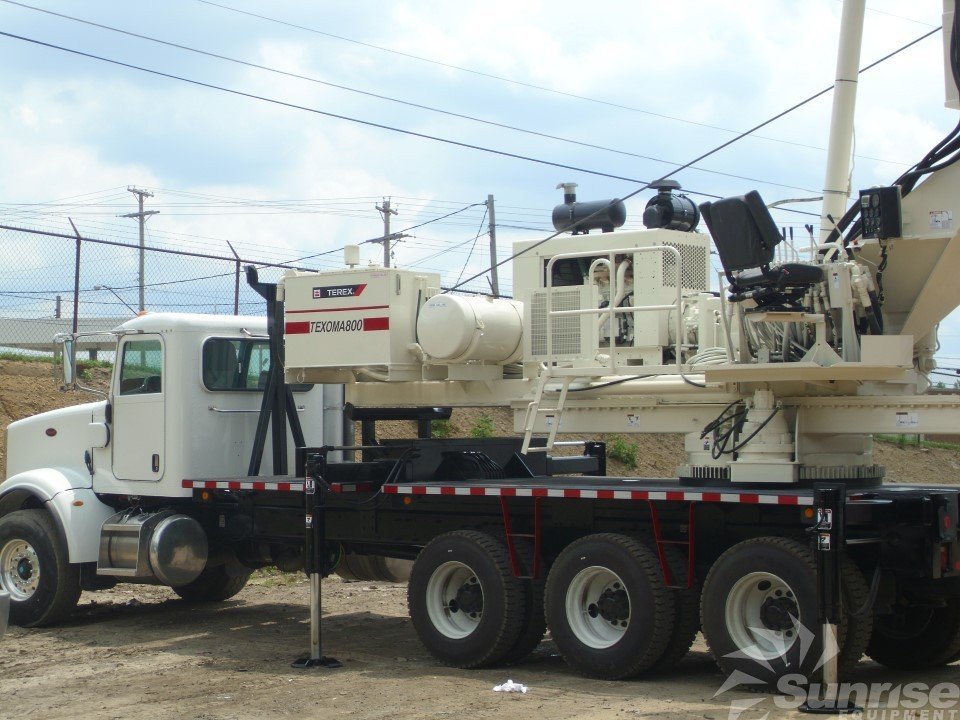

Texoma 800-95 pressure digger with 95 foot digging depth mounted on a 2010 Peterbilt 367 Tri Drive.

Chassis has a ISX500 Cummins Diesel engine, an 18 speed transmission, and is double framed.

The drill rig has a John Deere 6068 engine and an Allison Powershift 3 speed.  It is completely reconditioned by a Reedrill/Texoma dealer.  It has a near new appearance and is job and road ready.

This unit is available now for rent or purchase. SR# 3754

Axle weights

Front 15,700

Front Rear 21,400

Intermediate Drive 22,400

Rear Drive 19,100

Total Weight: 78,600

SR# 3754

Vehicle Specifications

Engine:
ISX500 Cummins Diesel
Front Axle:
20000
Front Tires:
425-65-R22.5
Horsepower:
500
Make:
Peterbilt
Miles:
21628
Model:
367
Other:
2-60 Gallon Fuel Tanks, AM/FM/CD, 2 Bucket Se
Rear Axle:
19,330 X 3=57990
Rear Tires:
11R 22.5
Title:
Engine #16908LL Trans#K0773878
Transmission:
Eaton Fuller 8LL
Wheels:
10 Hole Motor
Year:
2010

Equipment Specifications

Depth:
90'
Engine:
John Deere 6068
Horsepower:
140
Hours:
1811
Kelly Bar(in):
4"
Make:
Texoma
Model:
800
Other:
Lever Controls, Center over rear mount
Out Riggers:
4
Transmission:
Allison powershift 3 speed
Year:
2009

Body Specifications and Dimensions

Length:
36'9"
Other:
3/16 tHICK X 10.5 Frame
Width:
100"
