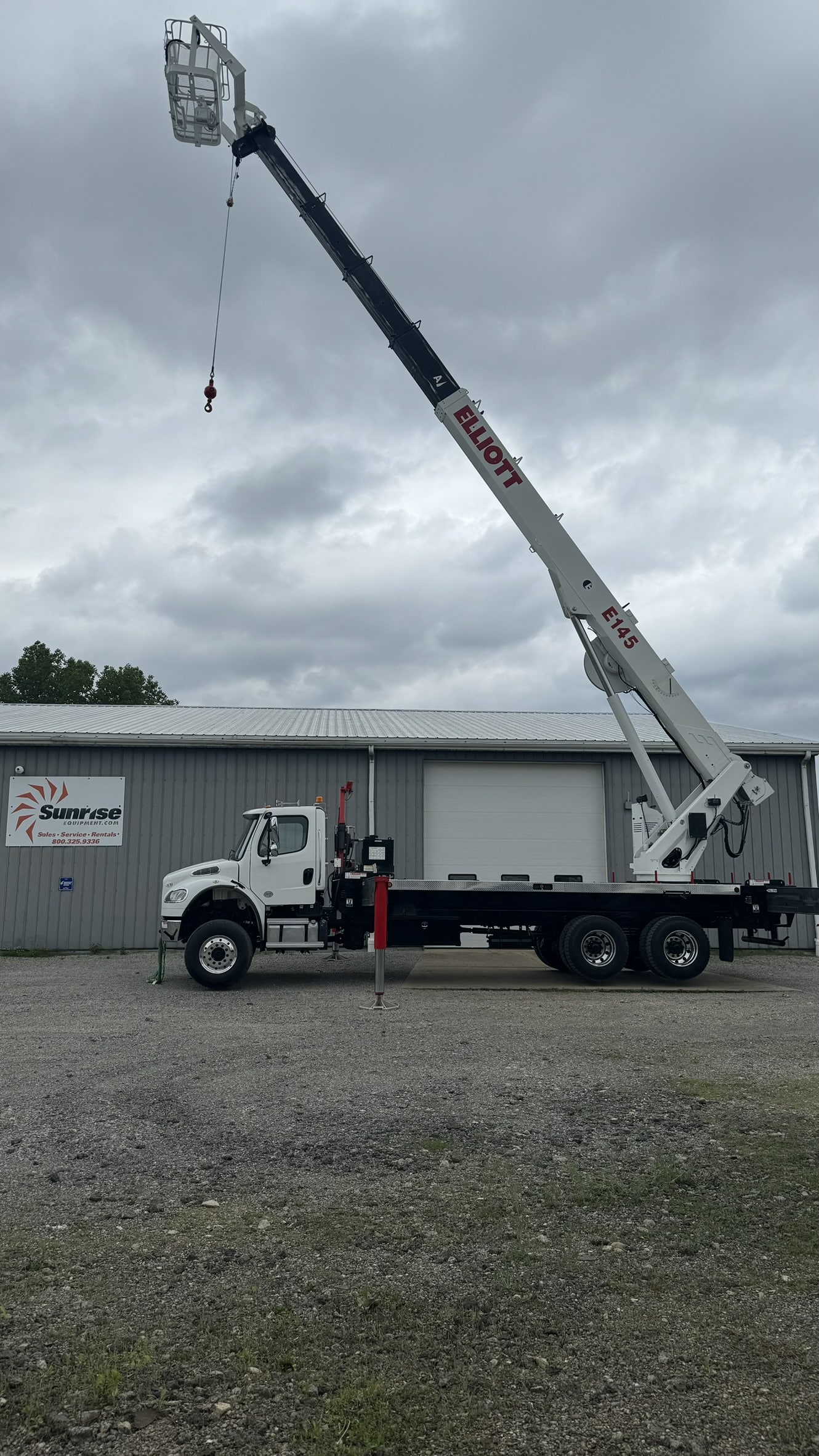

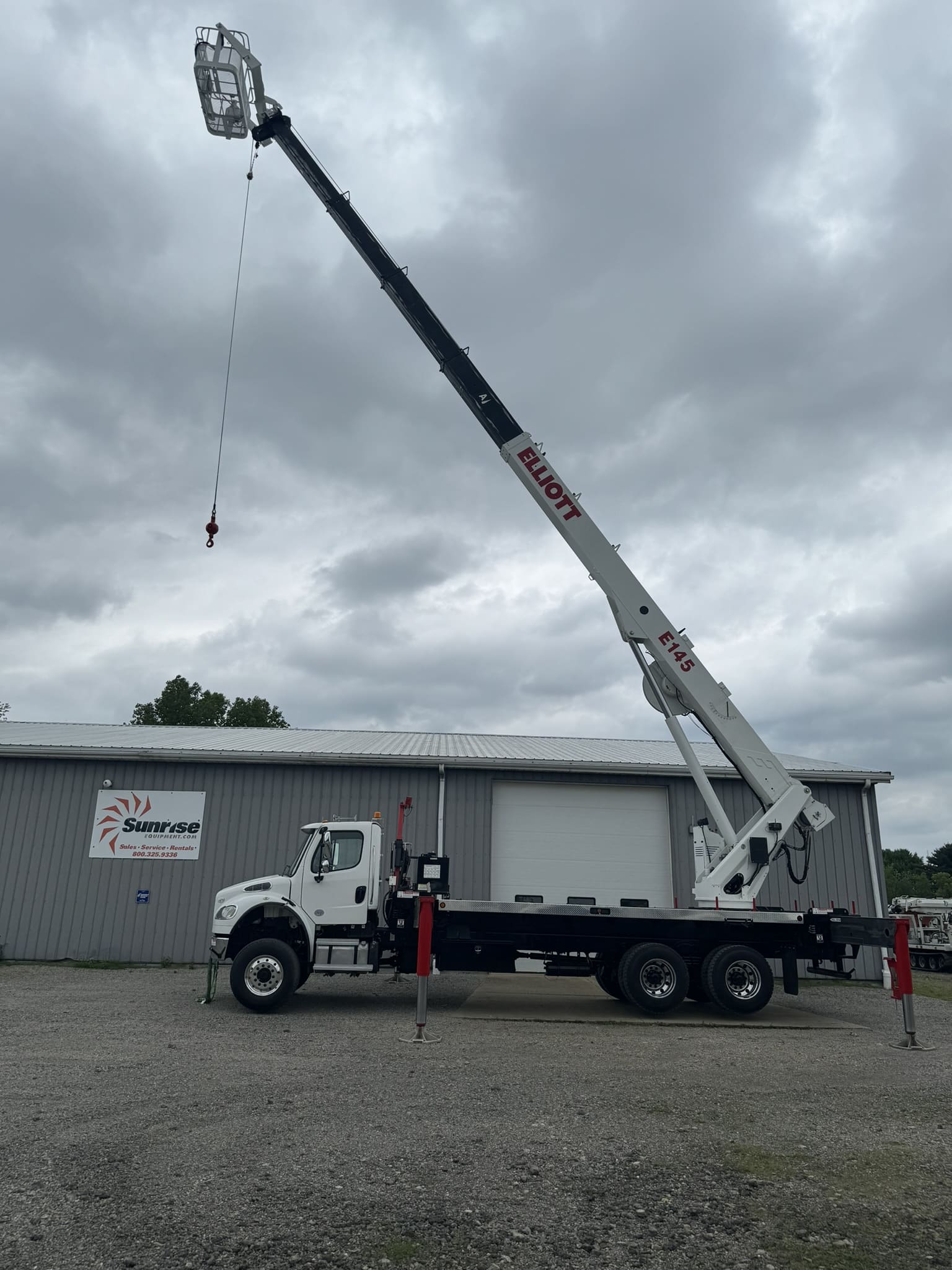

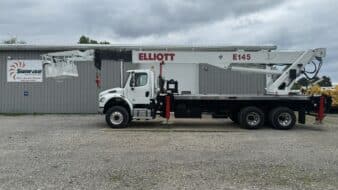

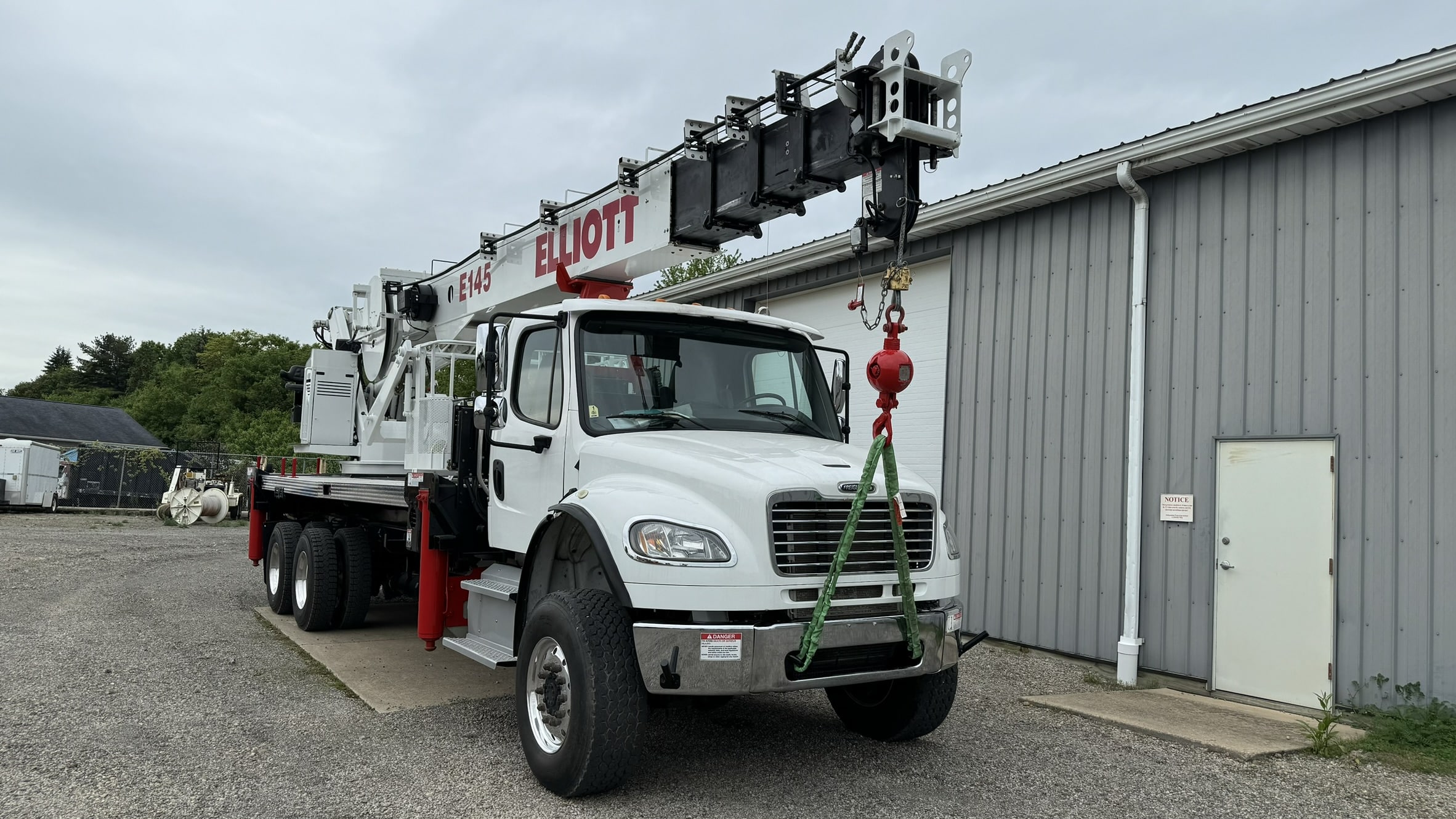

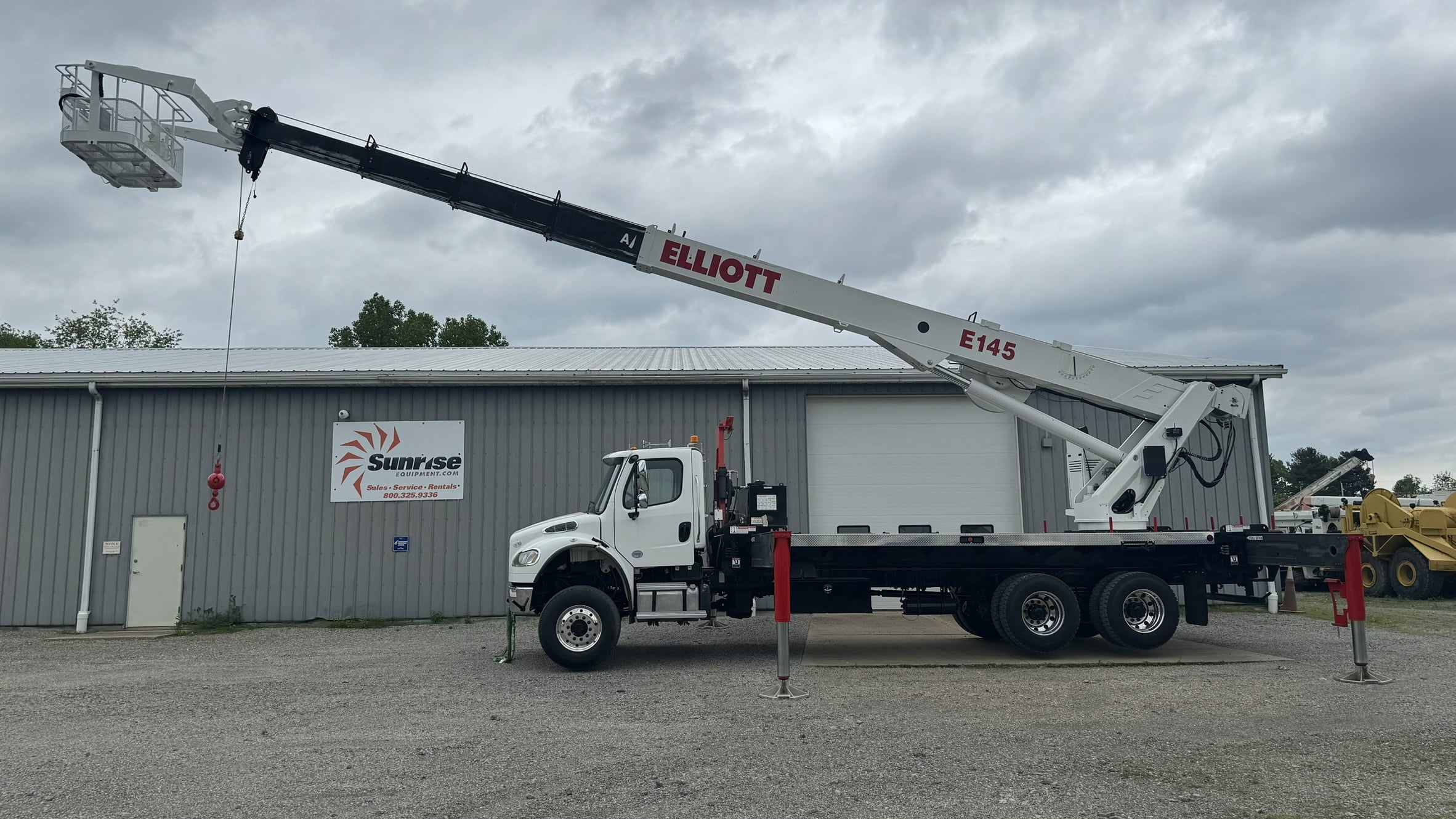

145′ ELLIOTT E-145 ON 2016 FREIGHTLINER M2 6X6 CHASSIS 9 TON AERIAL LIFT CRANE WITH 1,200 LBS CAPACITY PLATFORM- LOW MILES

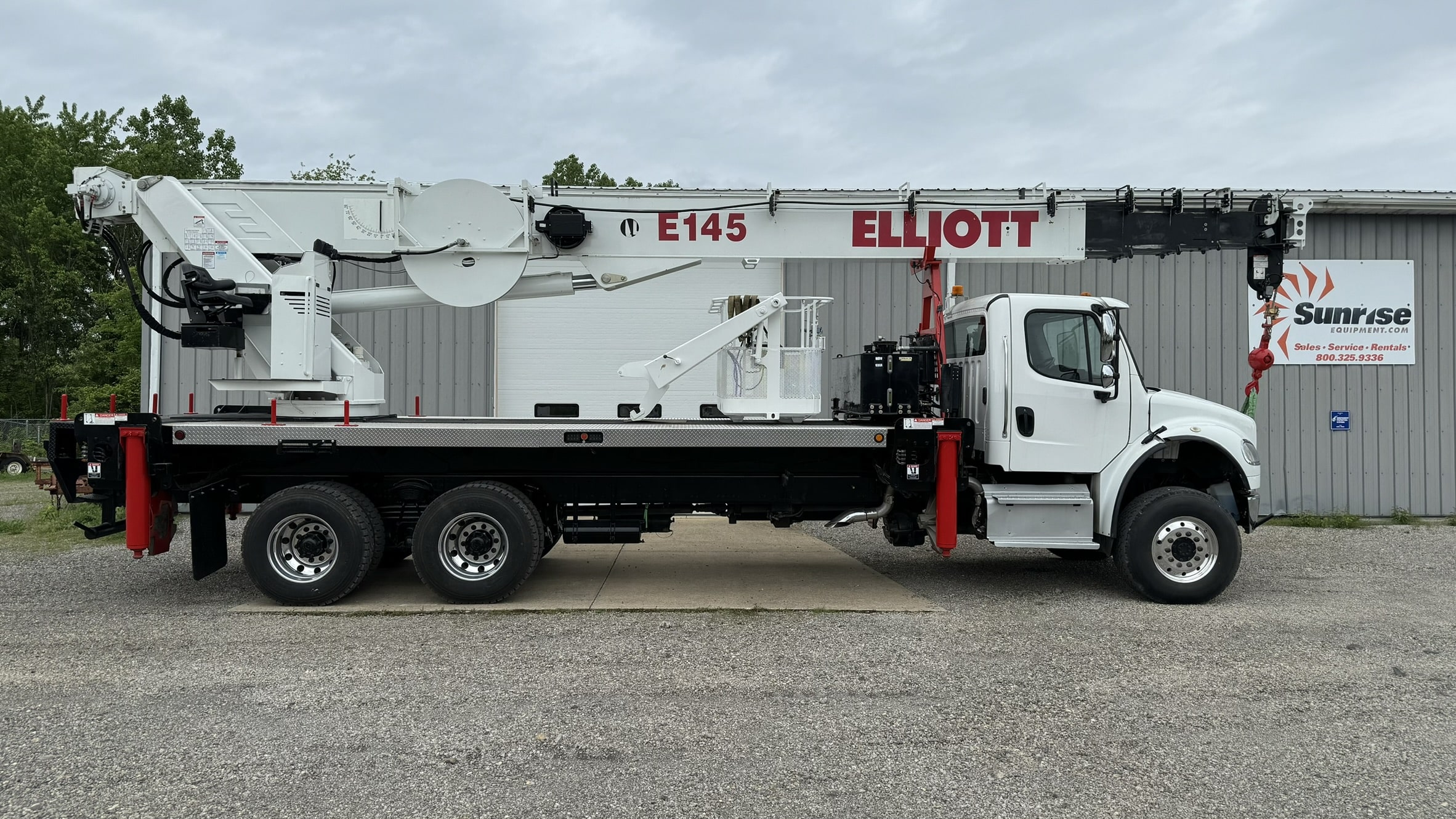

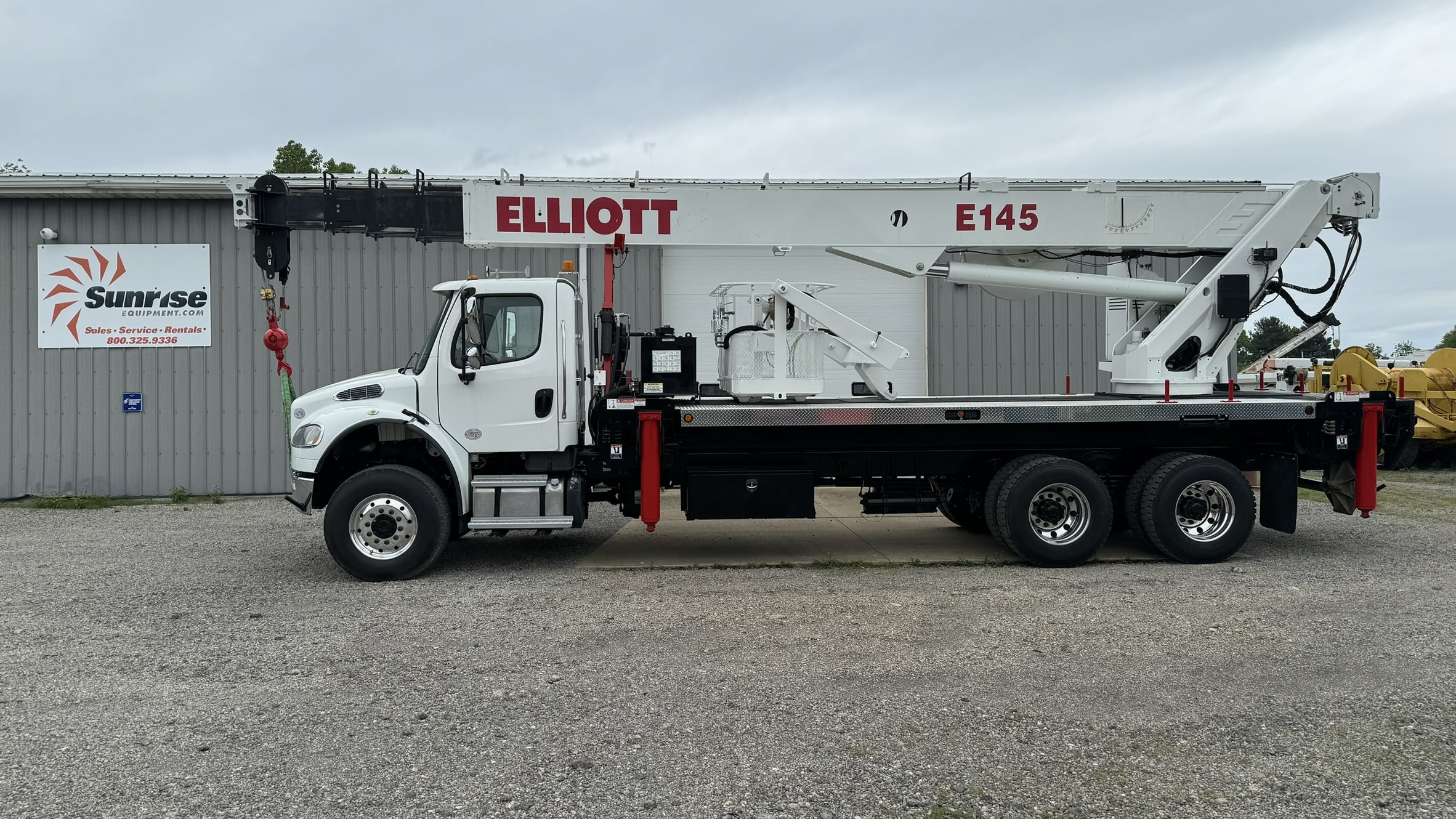

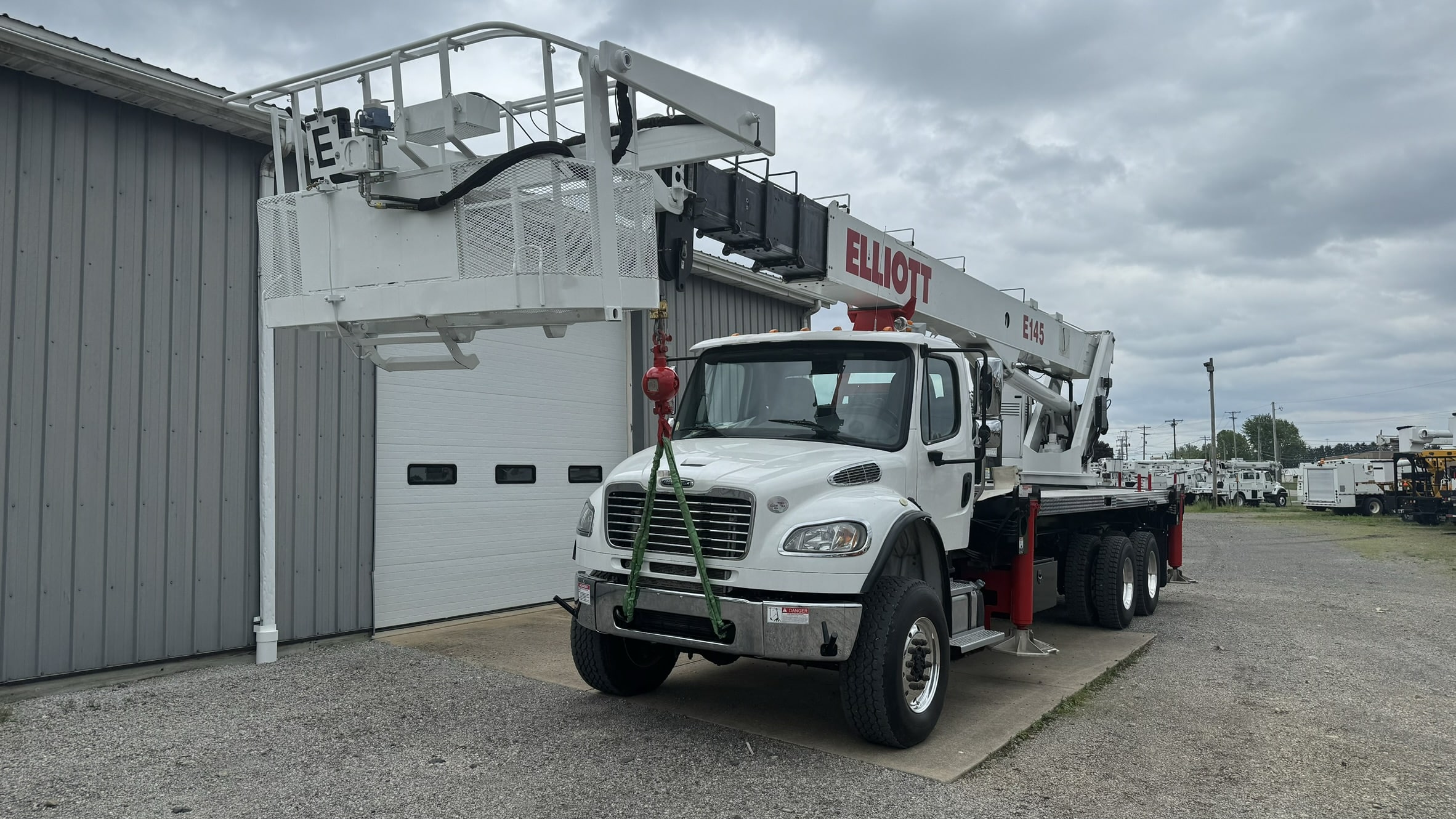

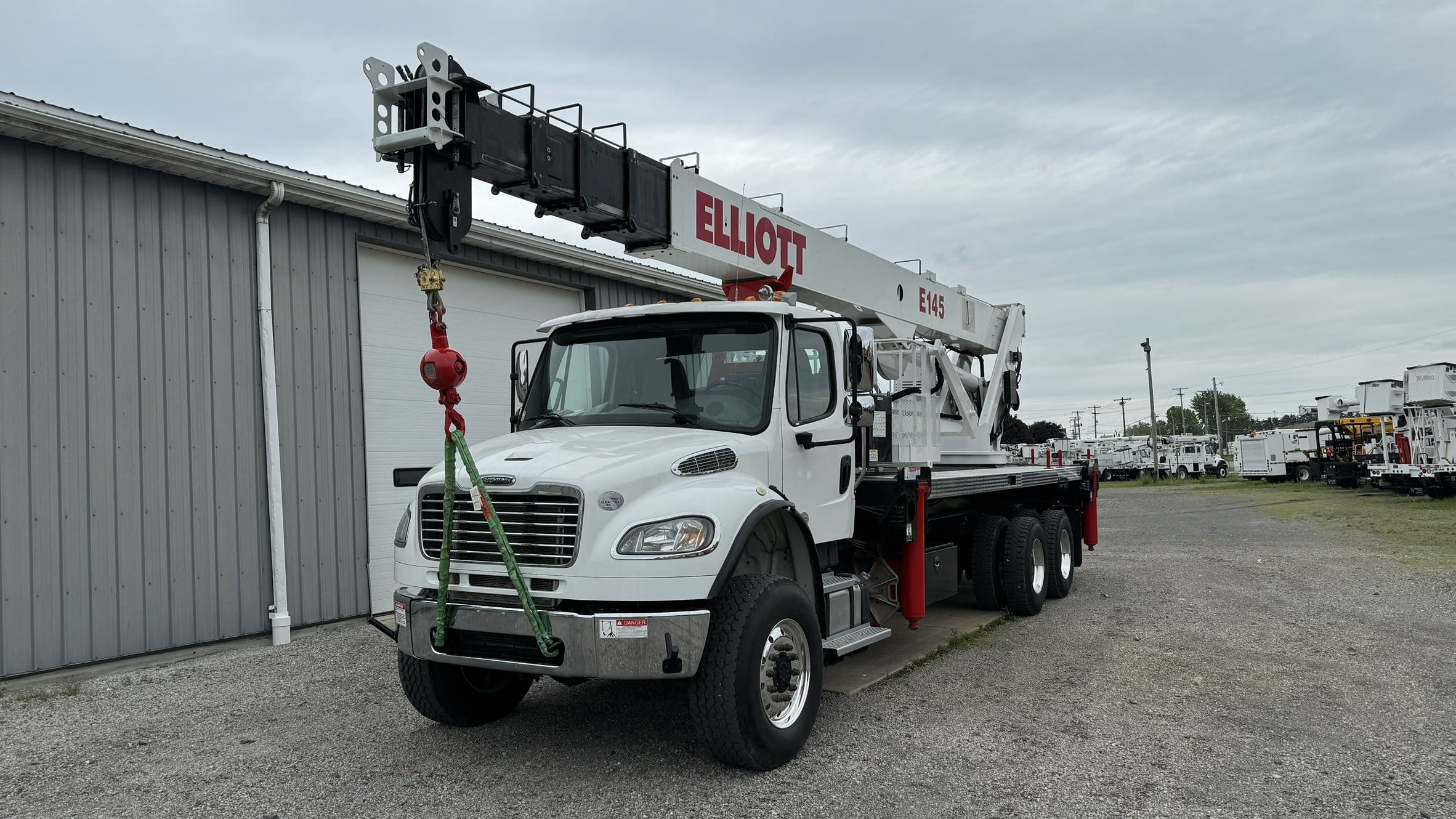

This 2016 Freightliner M2 6×6 is equipped with an Elliott E‑145 aerial work platform, one of the tallest telescopic truck-mounted aerials available on the market today. Designed for serious elevation and outreach, the E-145 delivers a 145-foot working height, 80-foot side reach, and a 1,200 lb platform capacity, making it a top choice for transmission line work, wind energy, utility infrastructure, lighting maintenance, and sign service. Mounted on a rugged all-wheel-drive Freightliner chassis with extremely low miles and just 4,507 hours, this unit is ready to be put to work in the most demanding conditions. Combining Elliott’s proven boom performance with Freightliner’s reliability and power, this truck offers the total package in high-access utility and service work.

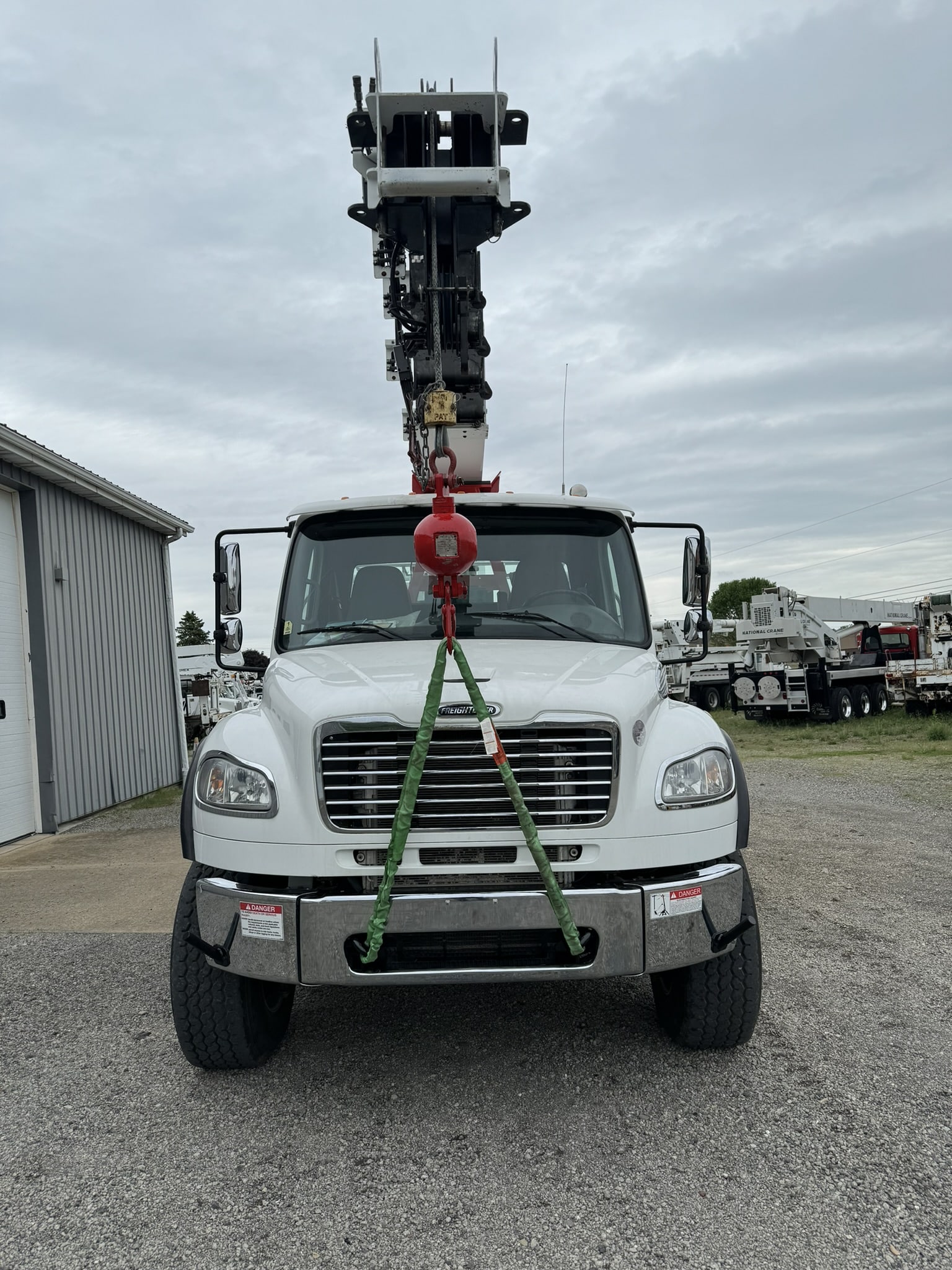

Chassis – 2016 Freightliner M2 6×6
Built for off-road traction and on-road performance, this Freightliner M2 6×6 features a robust Cummins ISL9 8.9L turbo diesel engine, delivering 350 horsepower and exceptional torque, ideal for powering both highway drives and off-road job sites. It’s paired with a durable Allison 3000 series 6-speed automatic transmission, designed to handle frequent start-stop operations and load shifts smoothly under pressure.
Engine: Cummins ISL9 8.9L Diesel- 350 HP

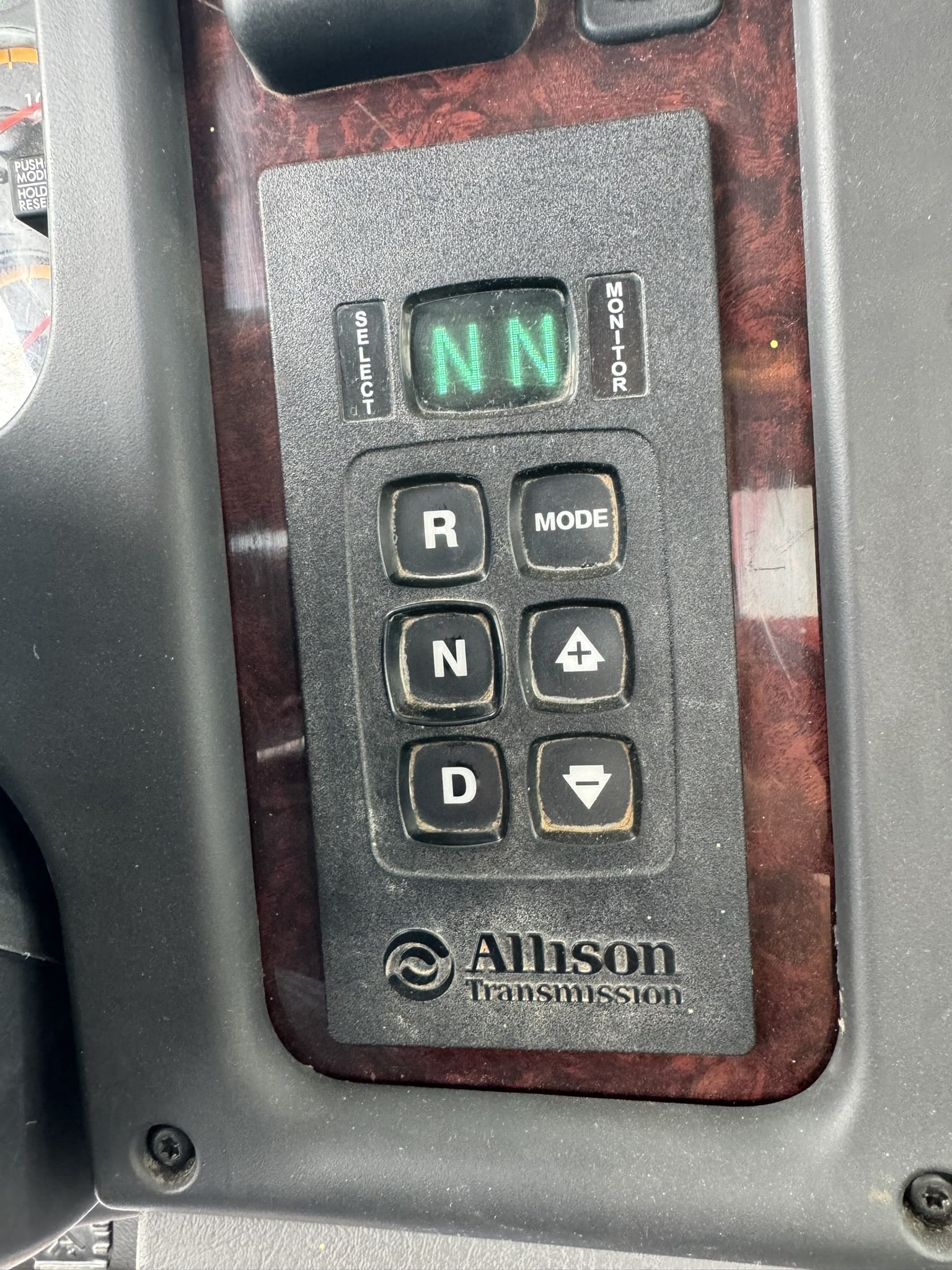

Transmission: Allison 3000 Series 6-Speed Automatic
Front Axle: 18,000 lb
Rear Axle: 40,000 lb tandem
Drive: 6×6
Fuel Capacity: 50 gallons

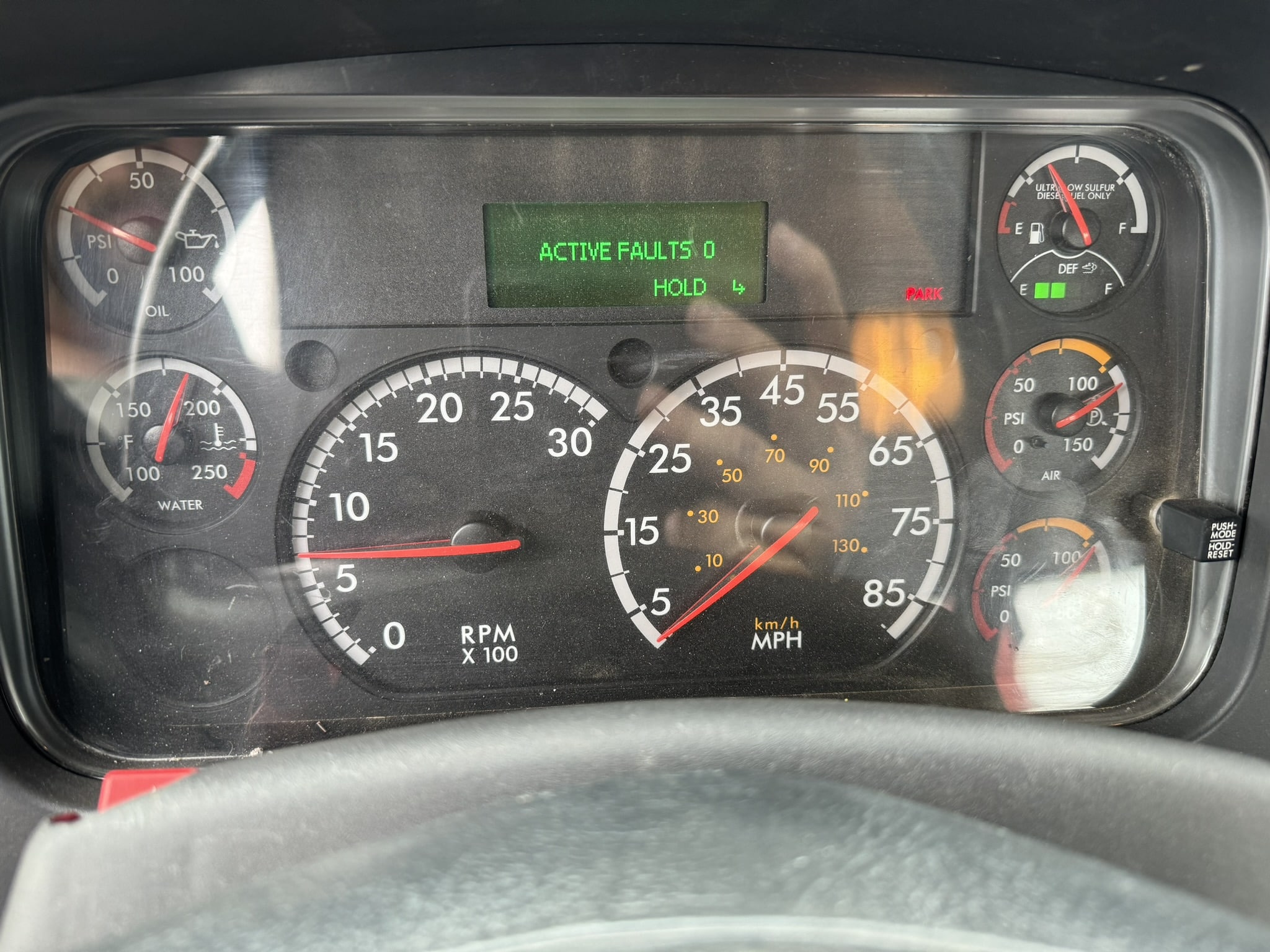

Mileage: 24,827 mi
Hours: 4,507
Brakes: Air

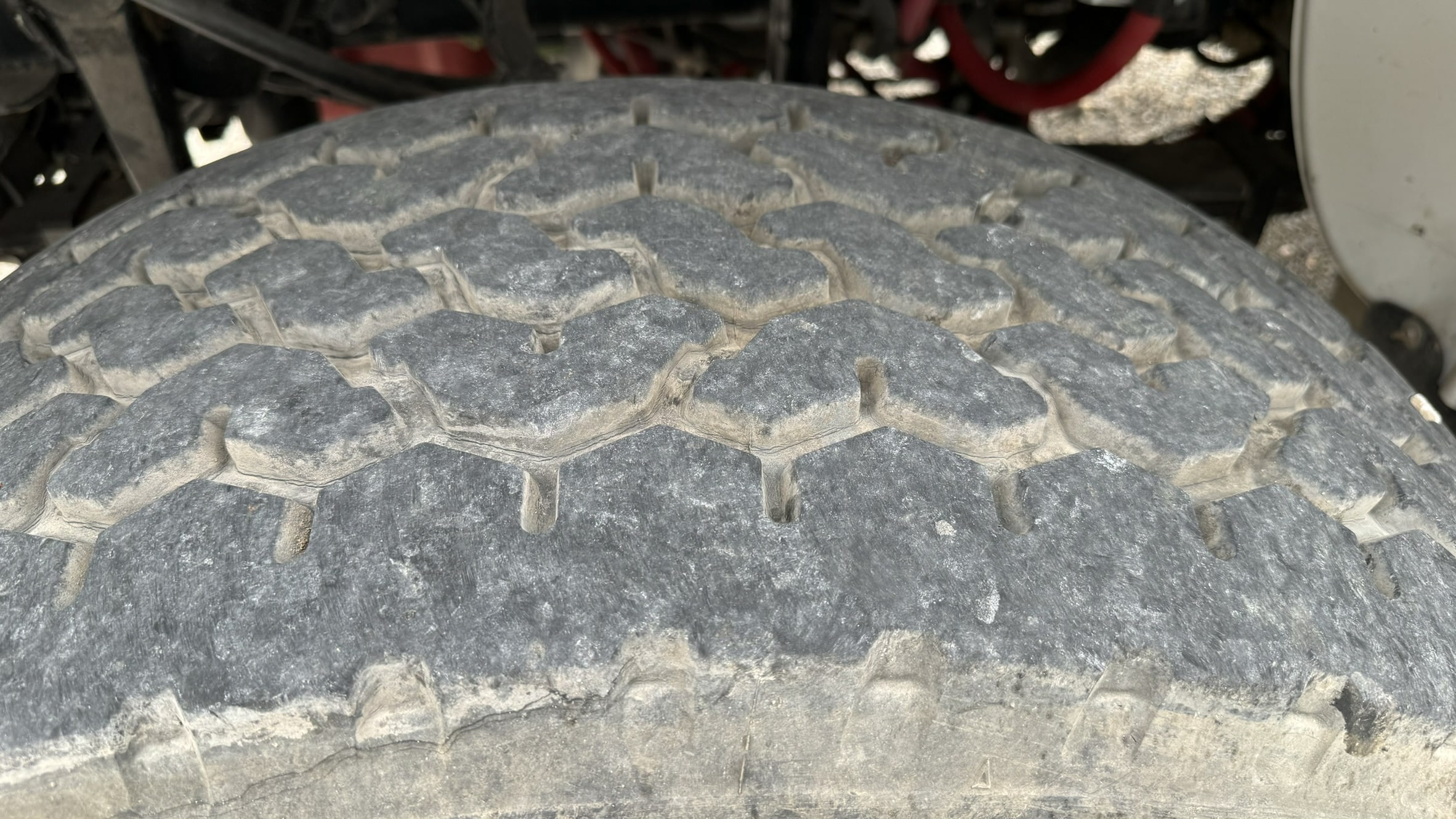

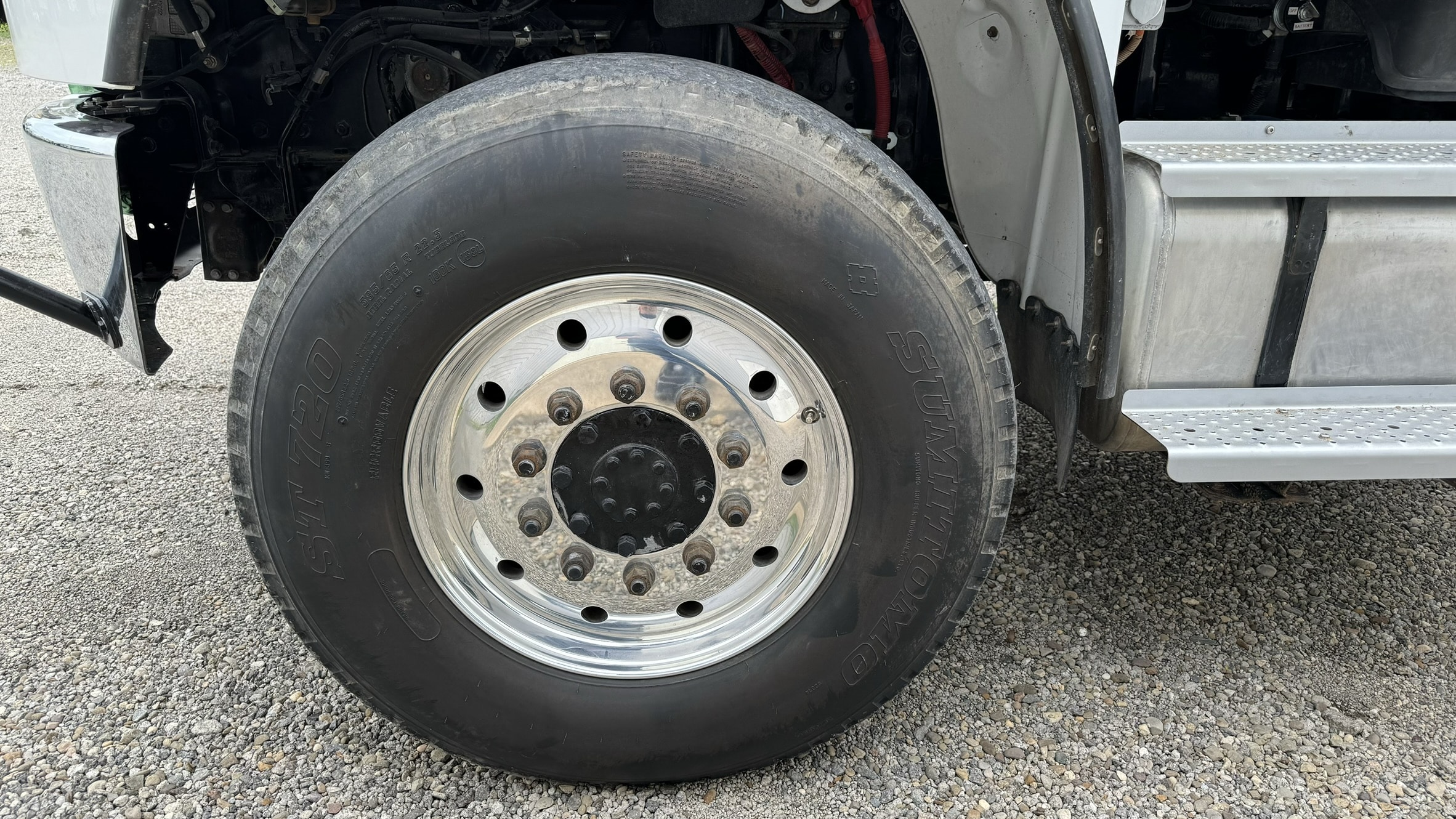

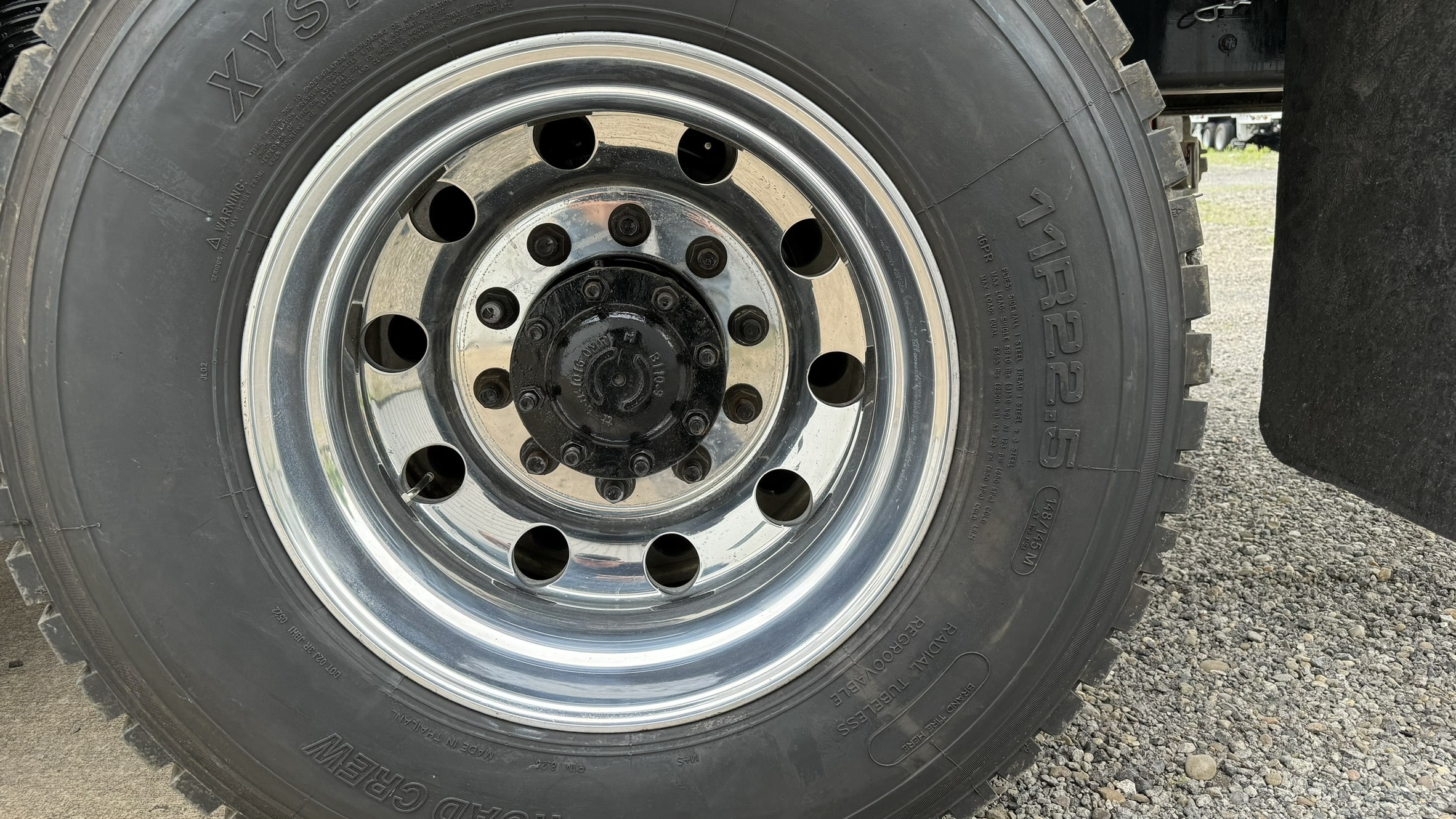

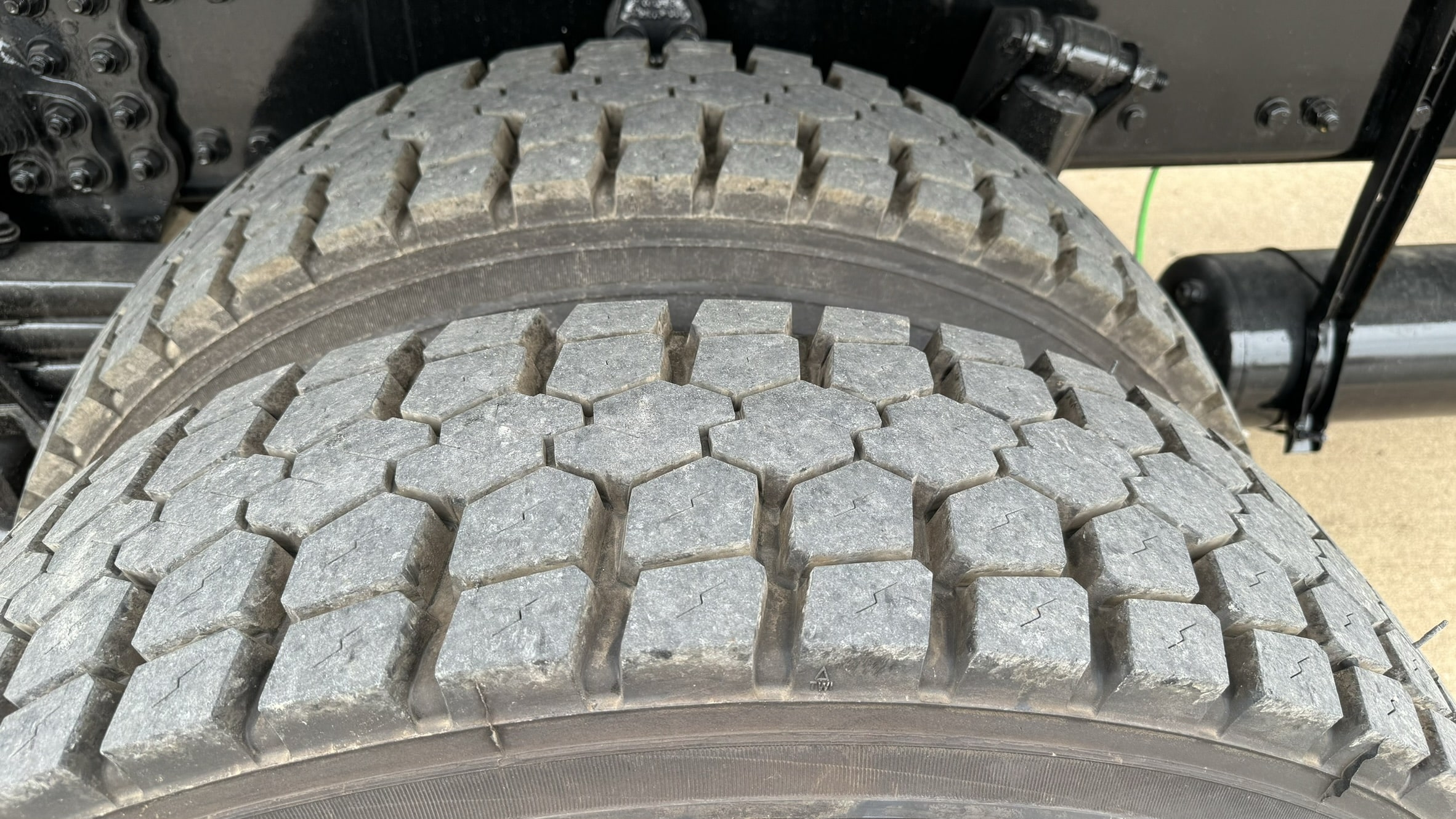

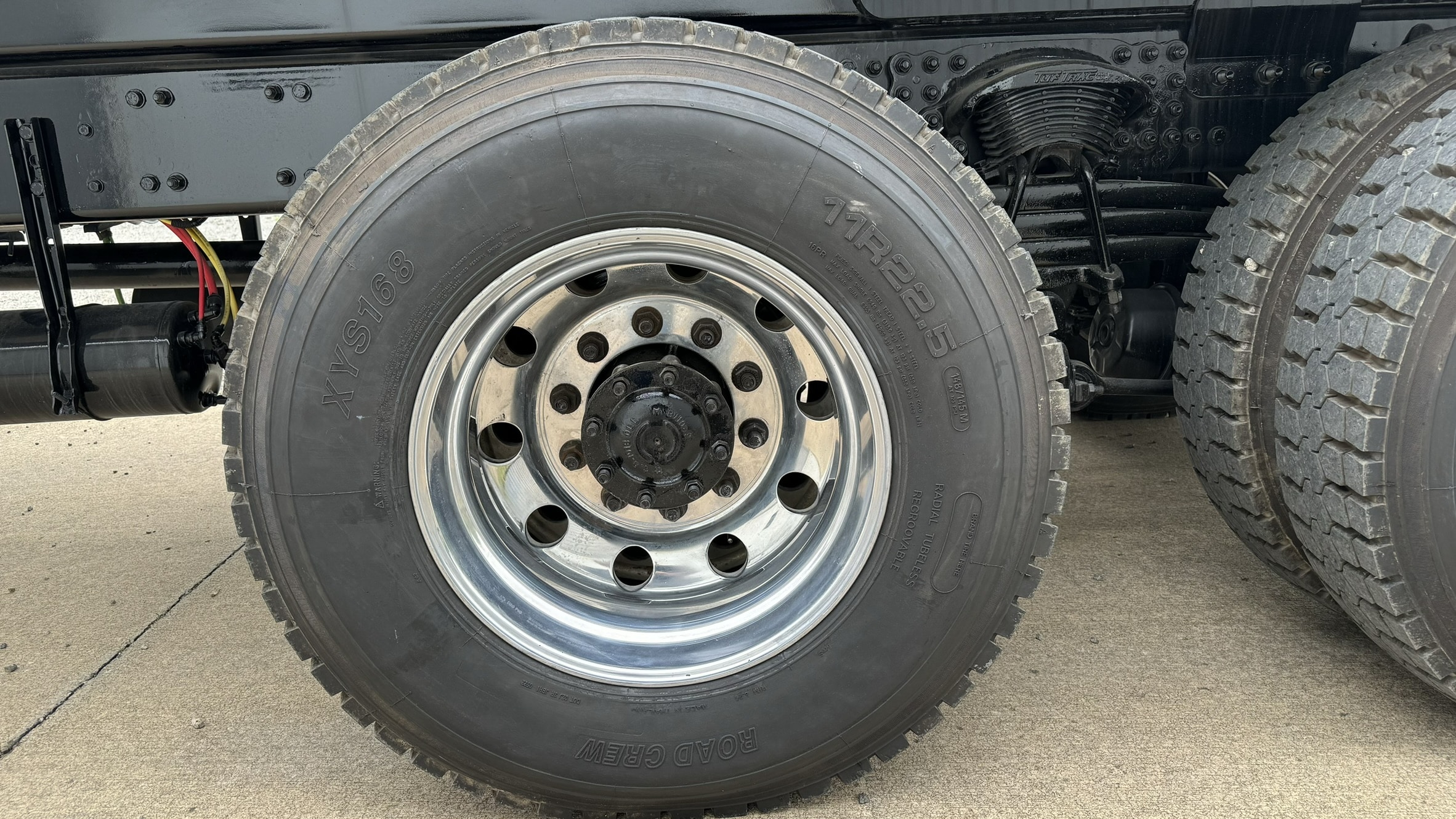

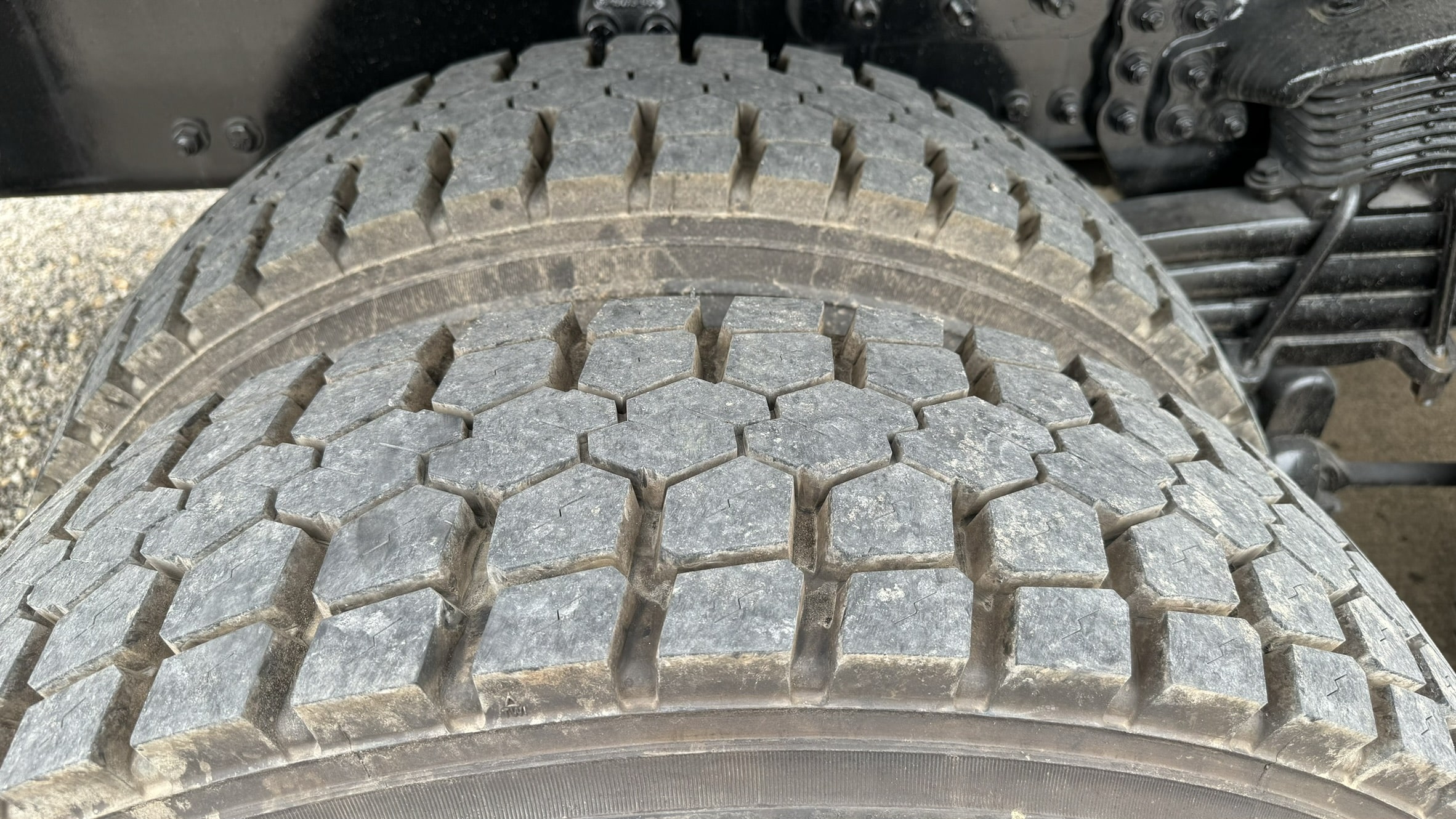

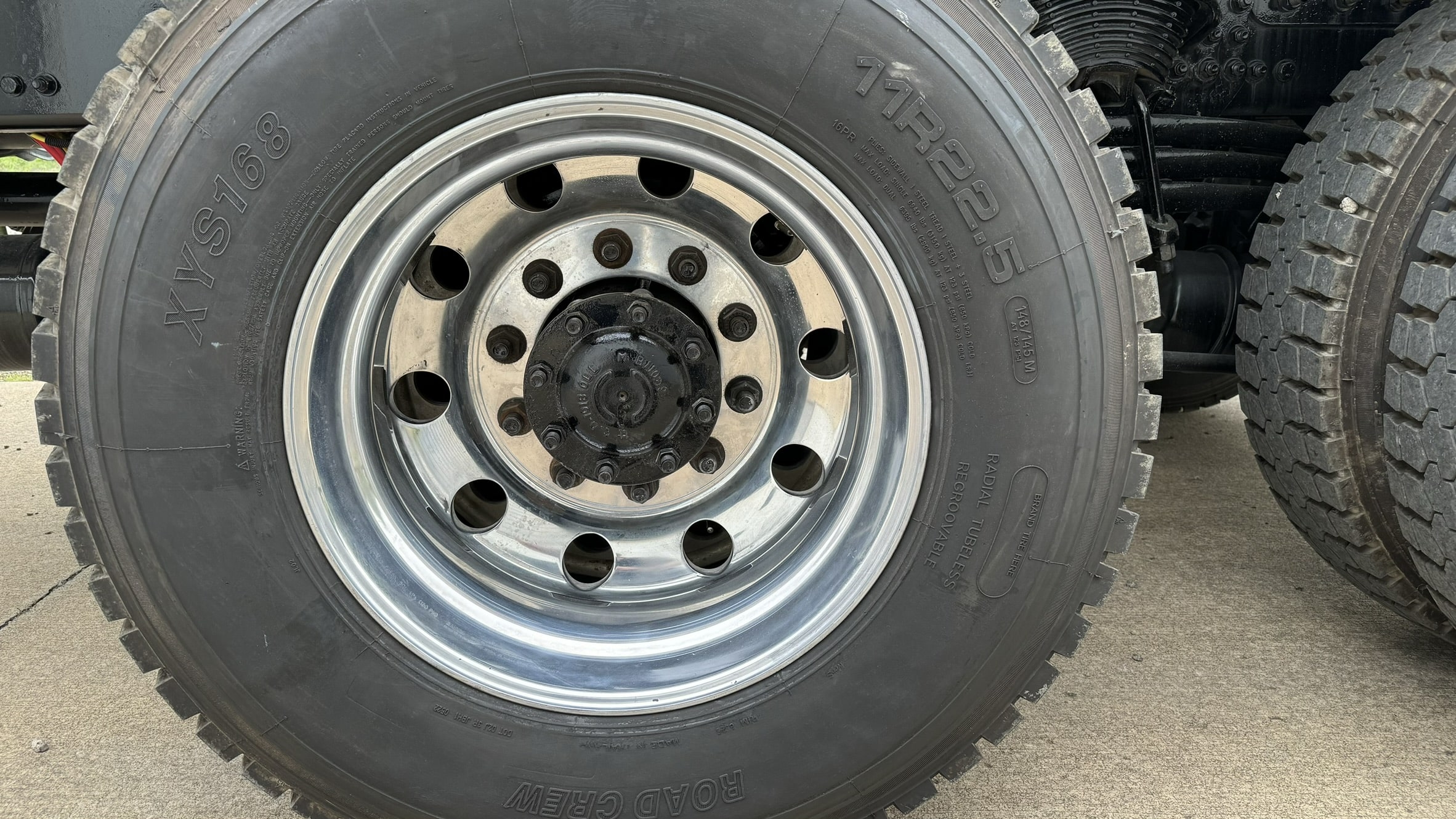

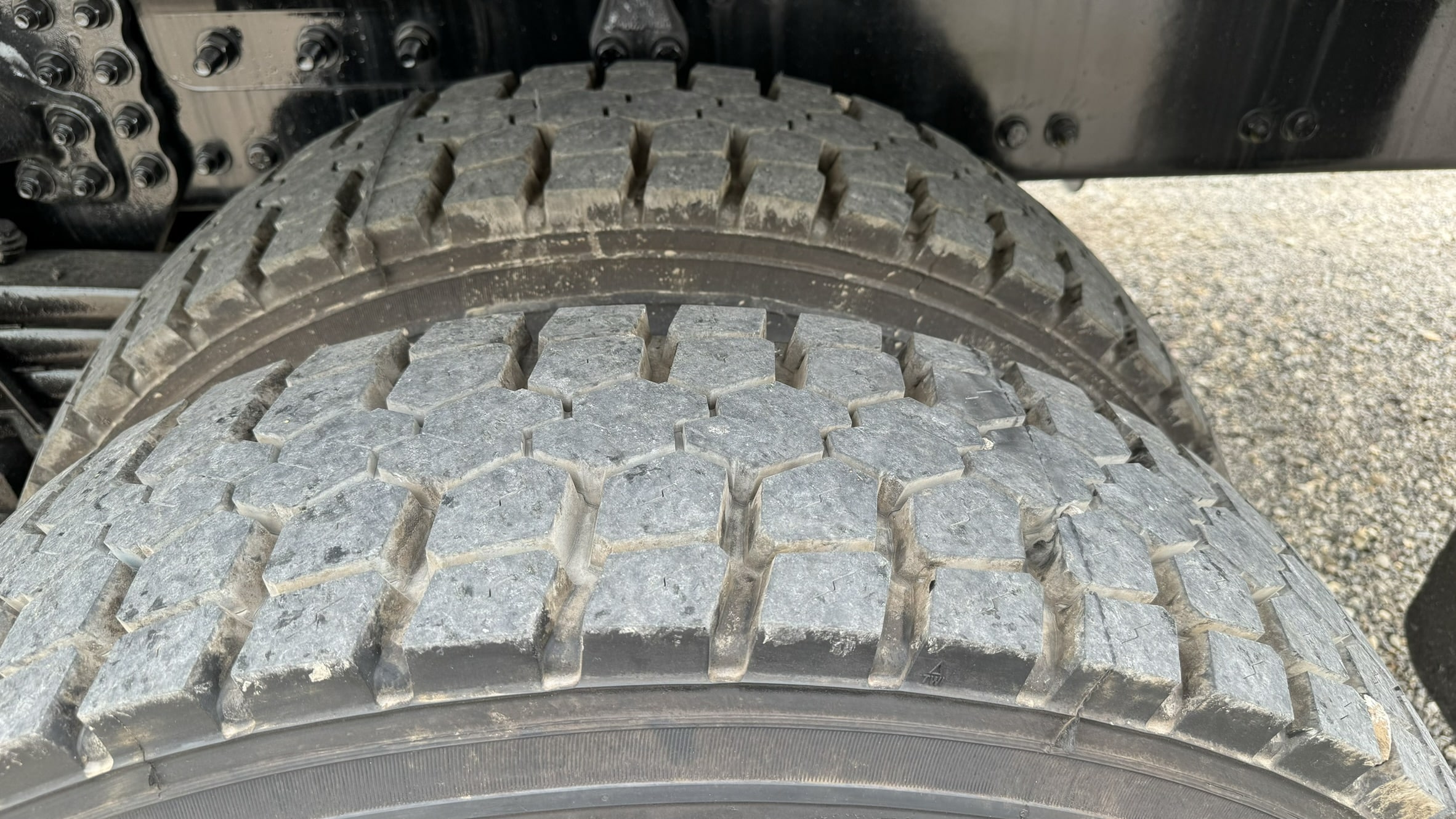

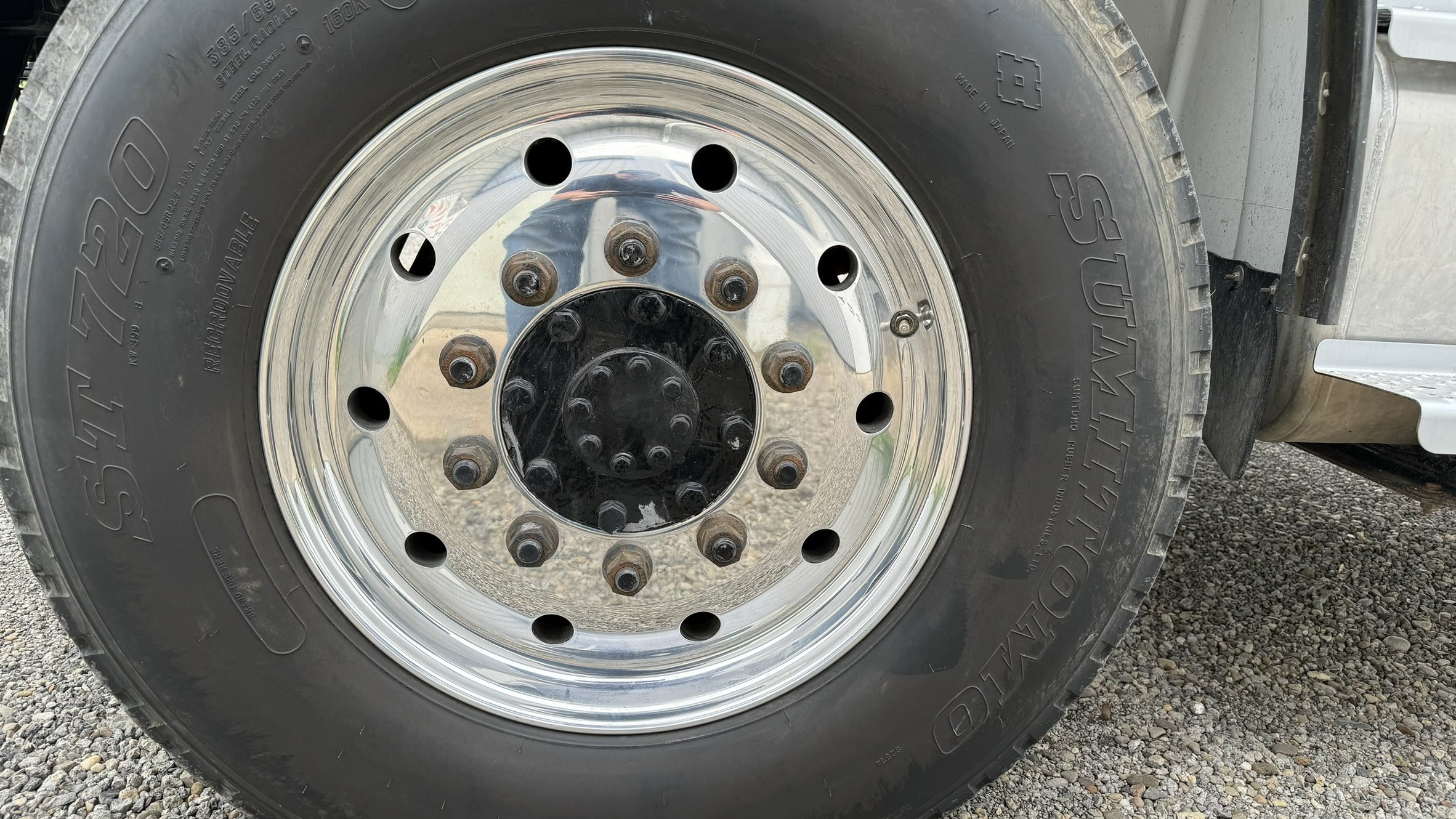

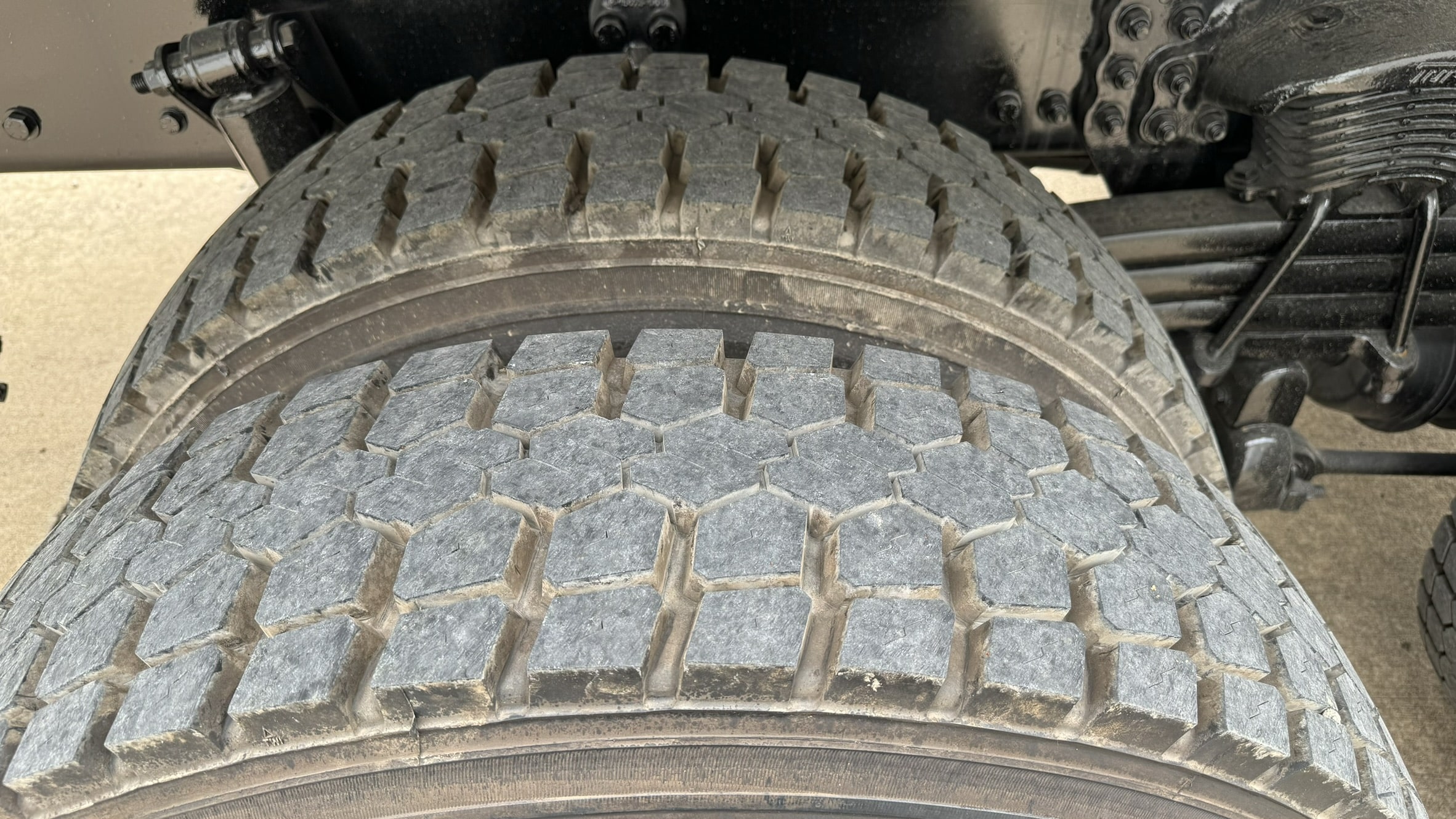

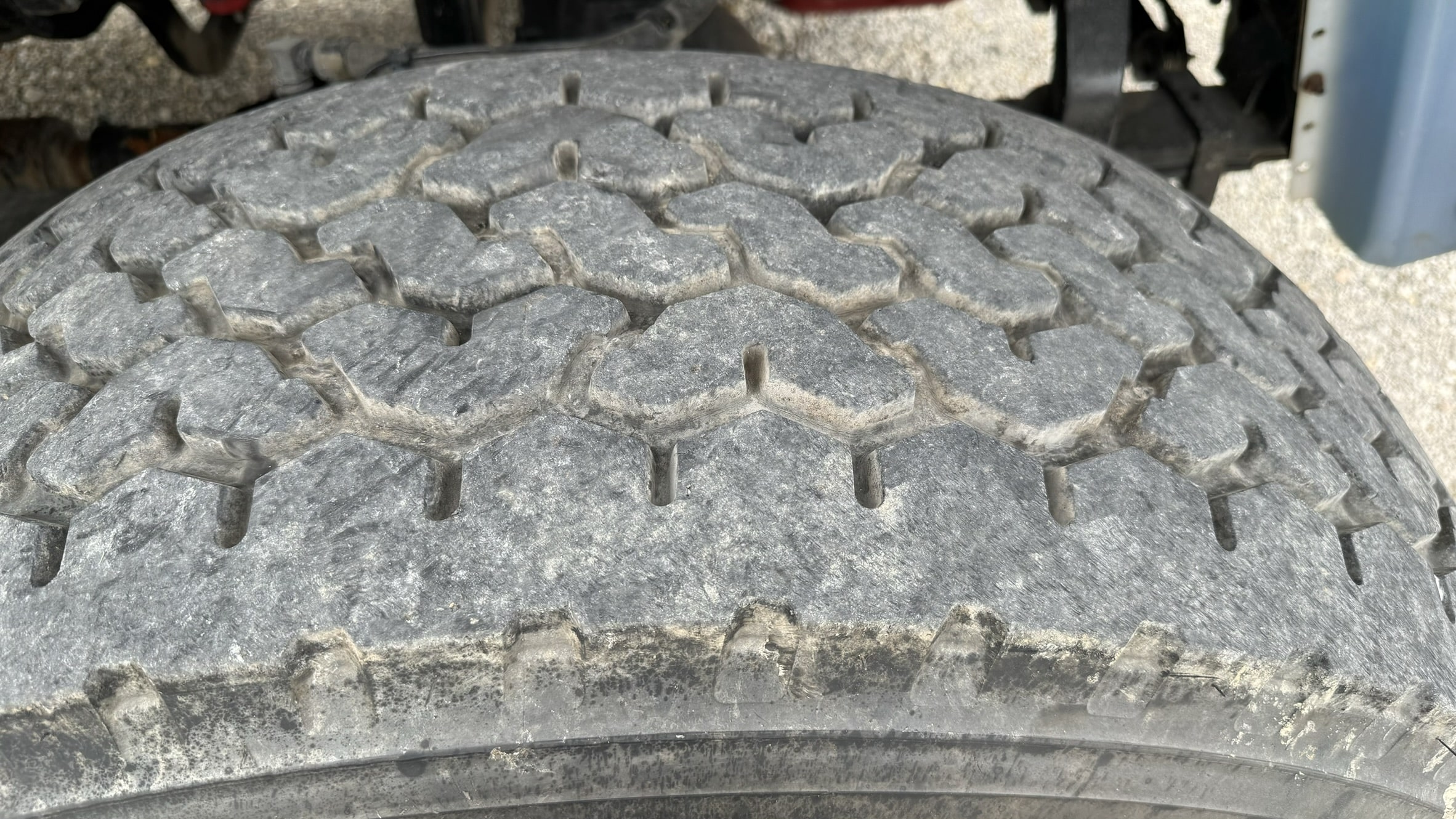

Wheels/Tires: 385/65R22.5 front, 11R22.5 rear, 10-lug aluminum wheels

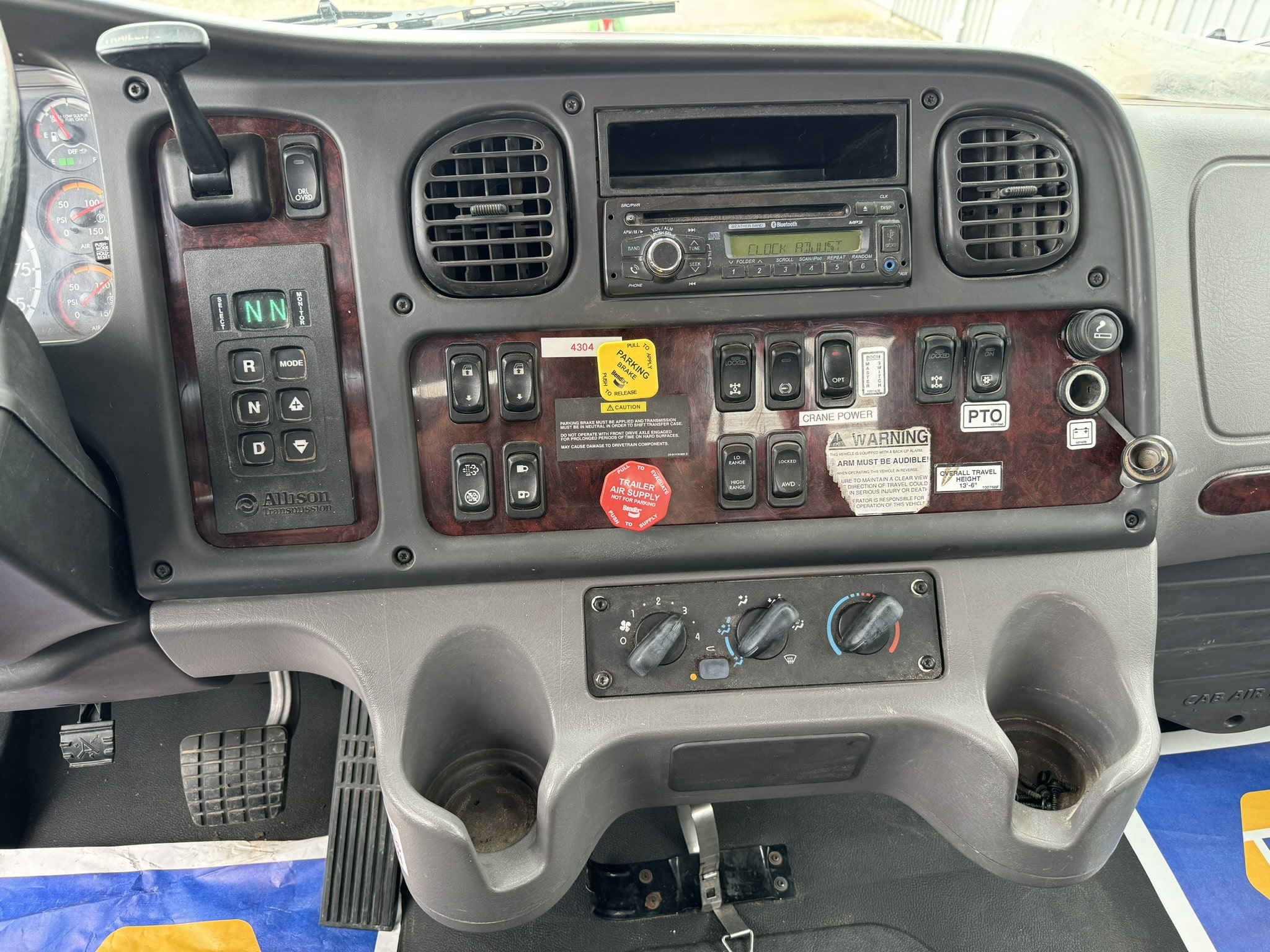

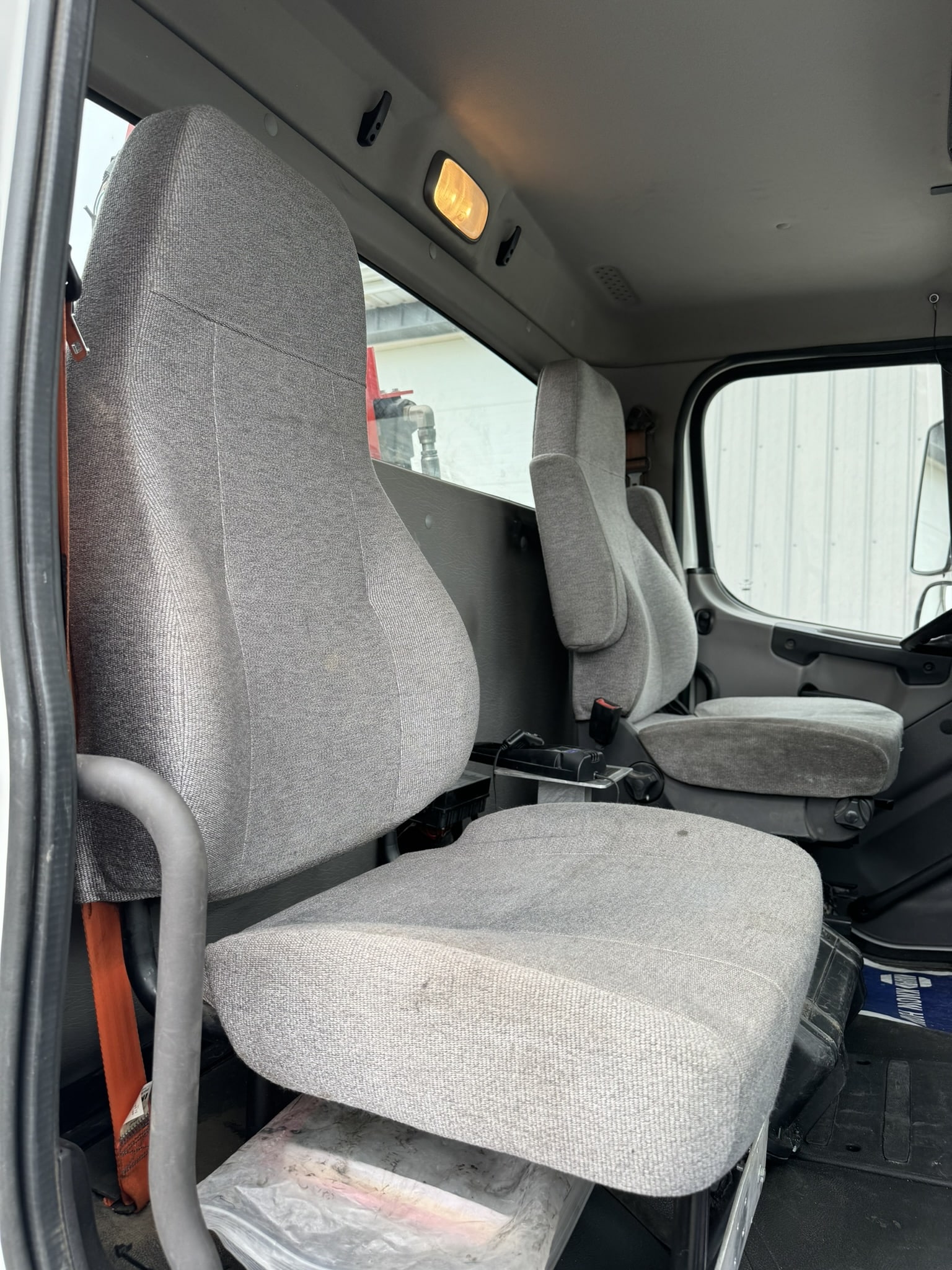

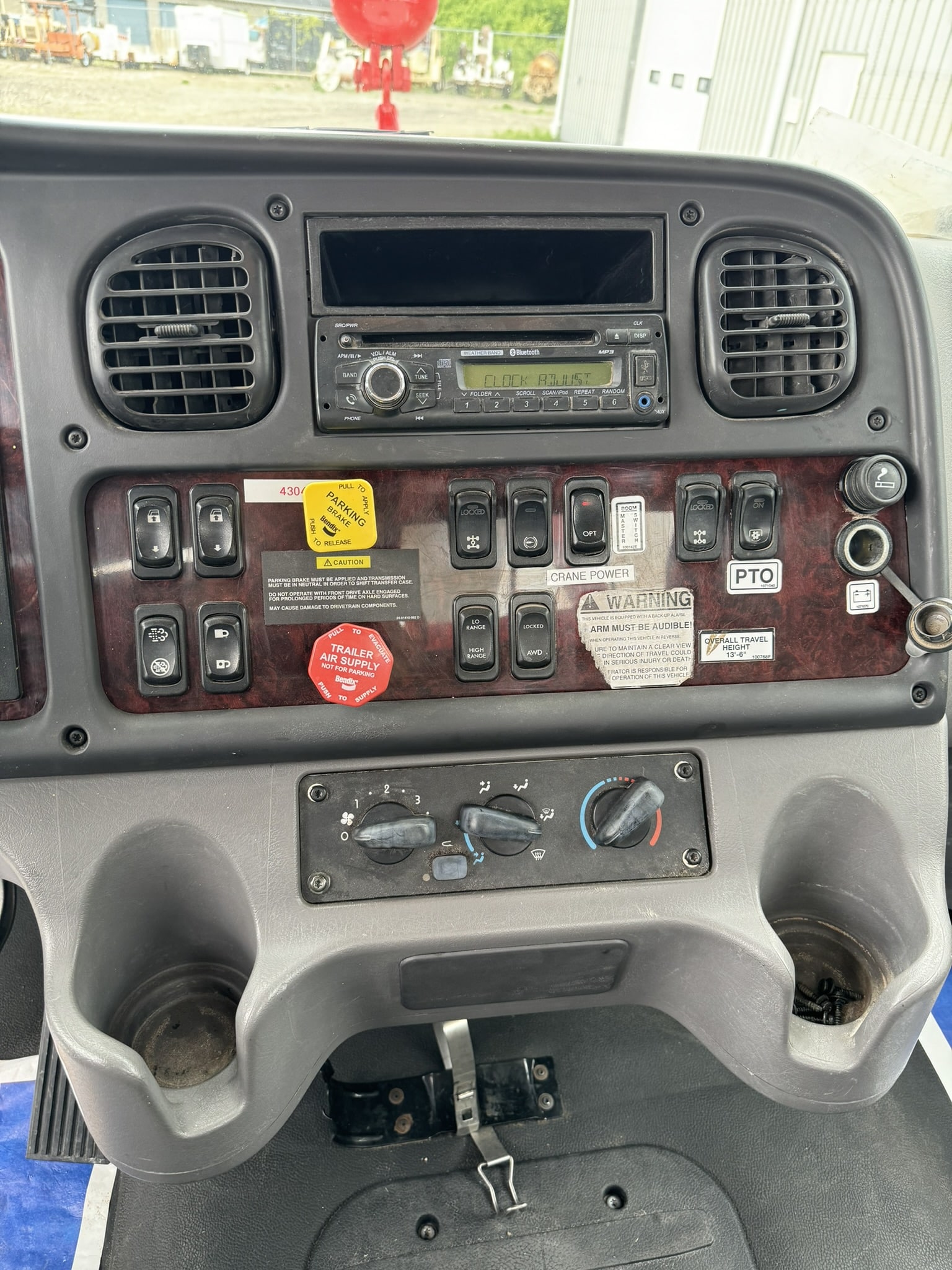

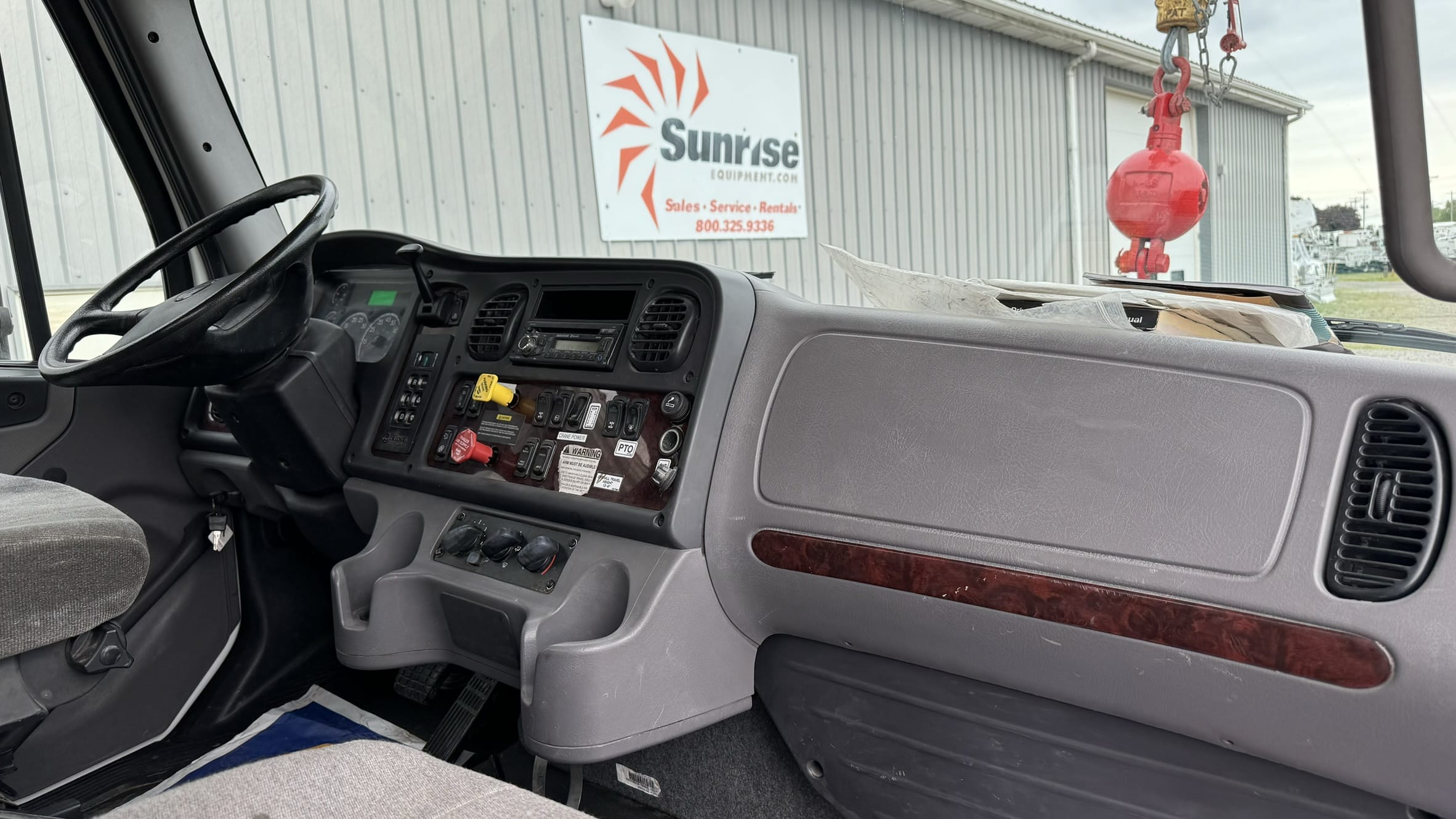

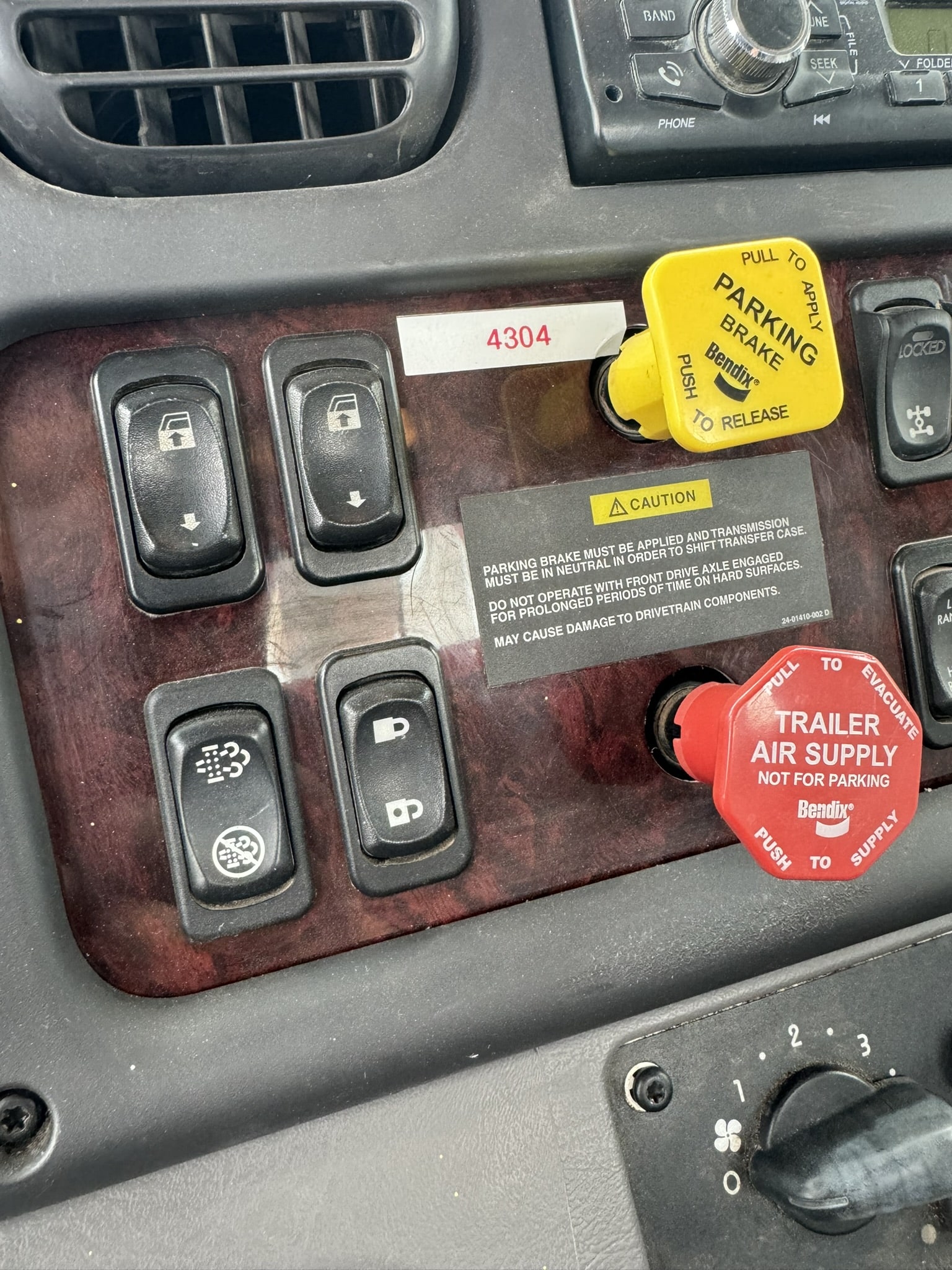

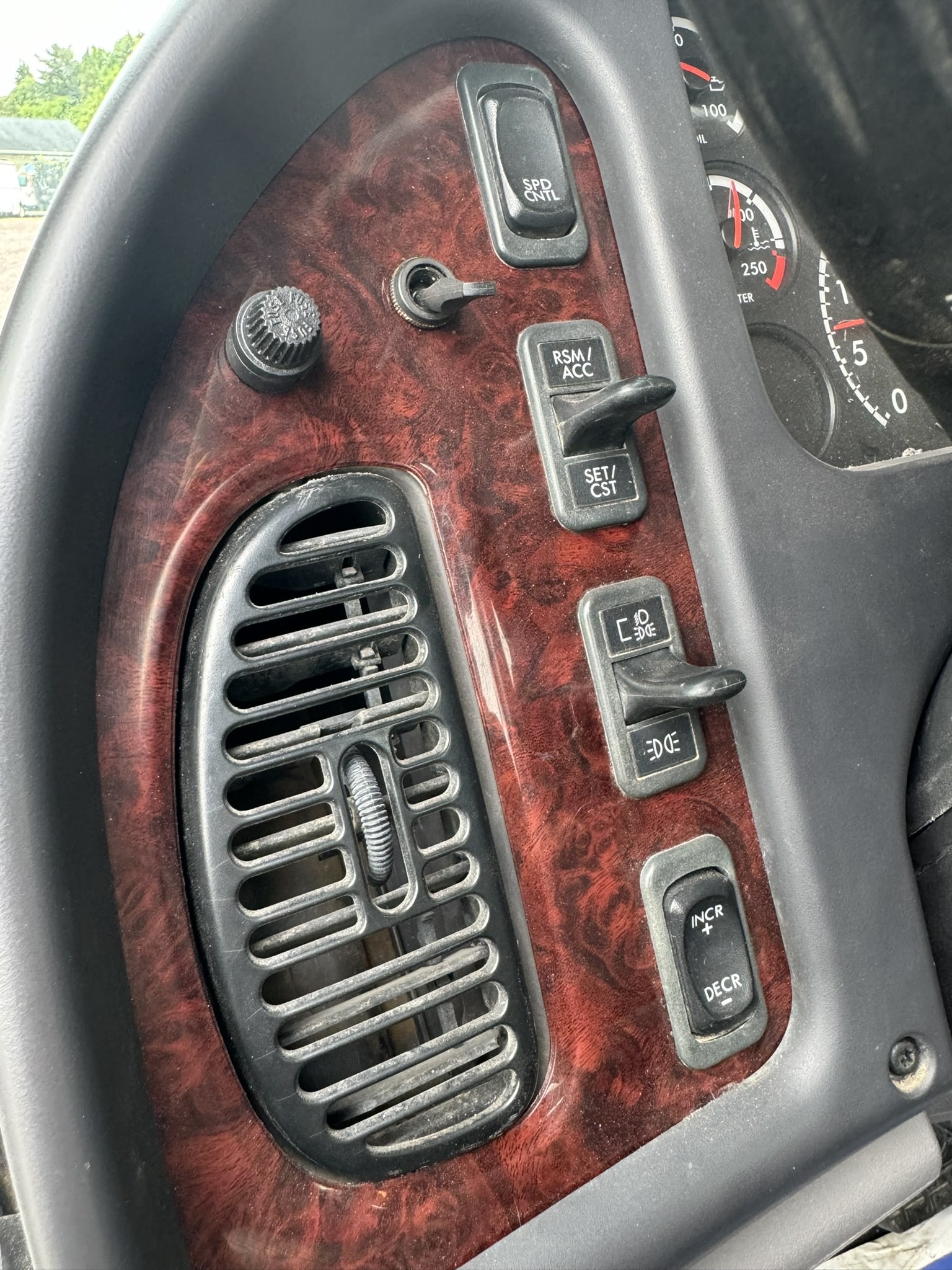

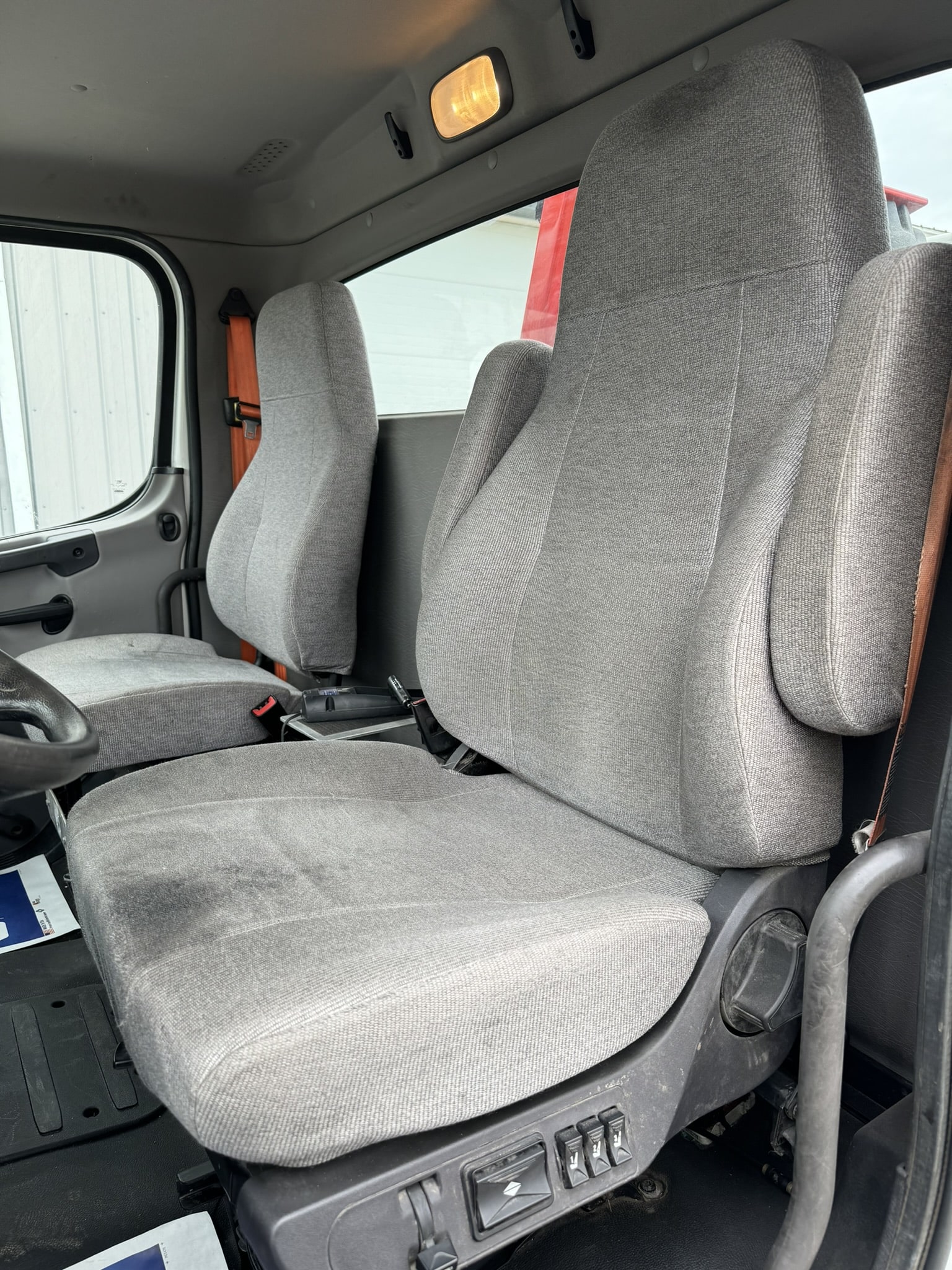

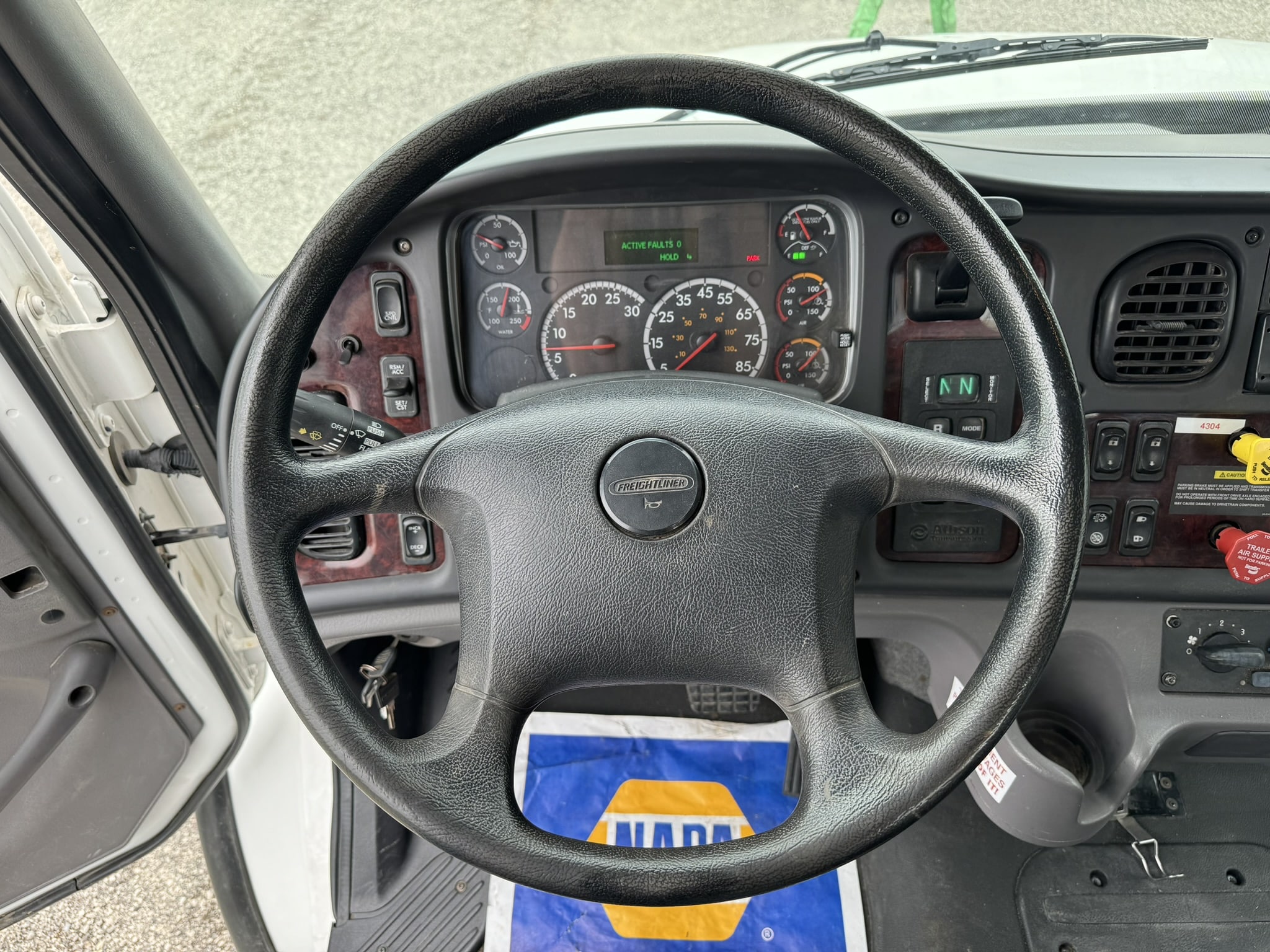

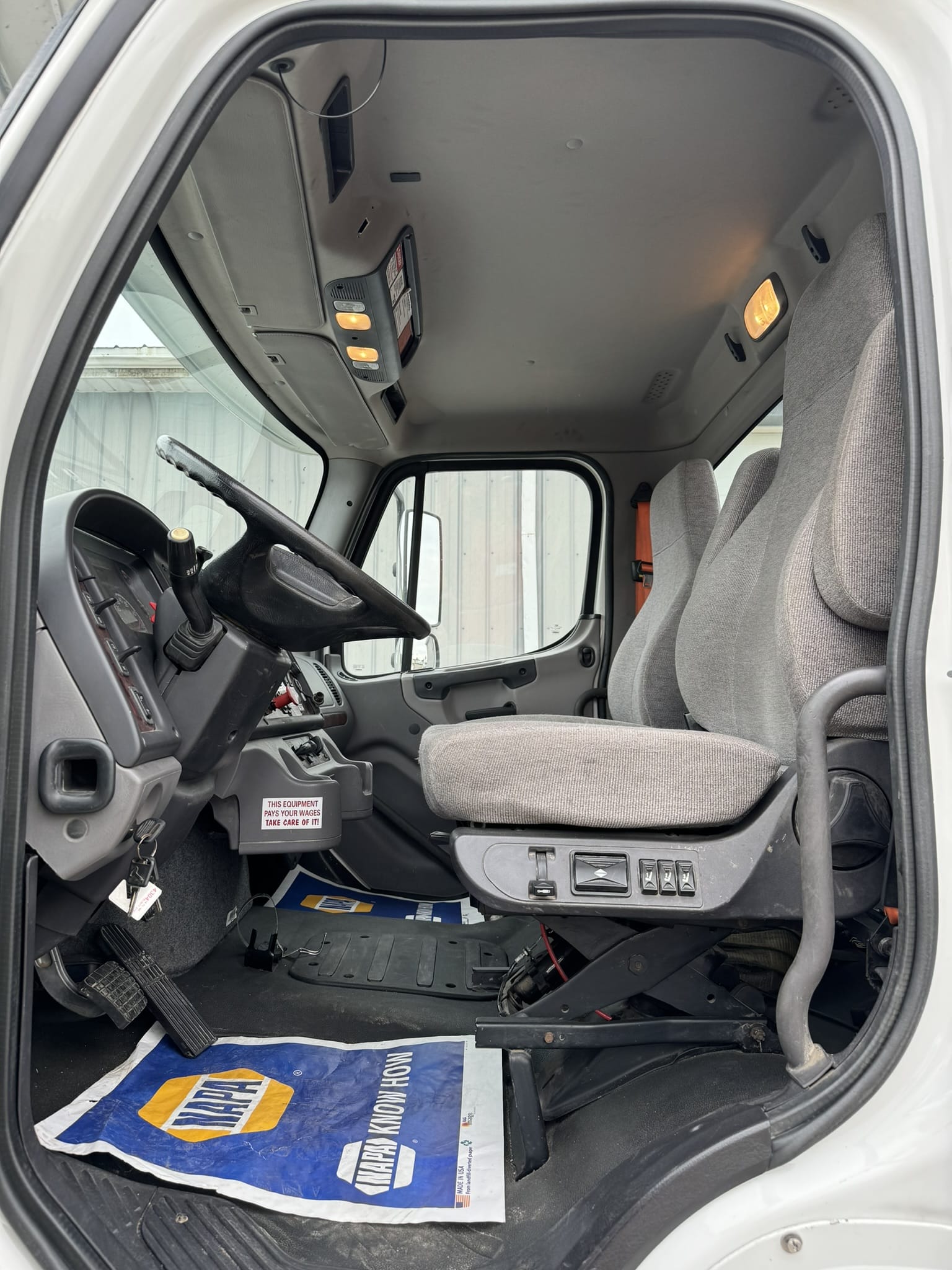

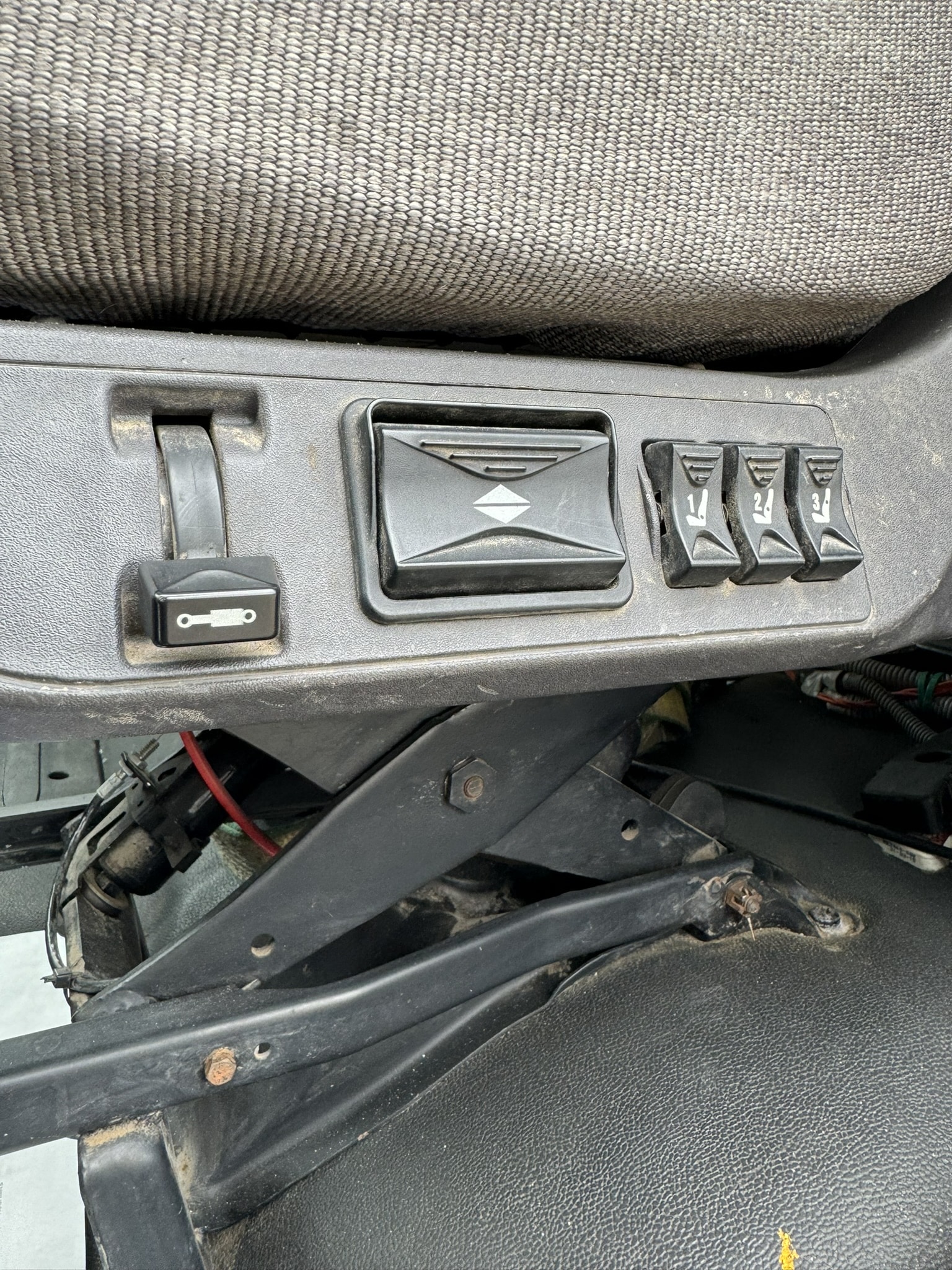

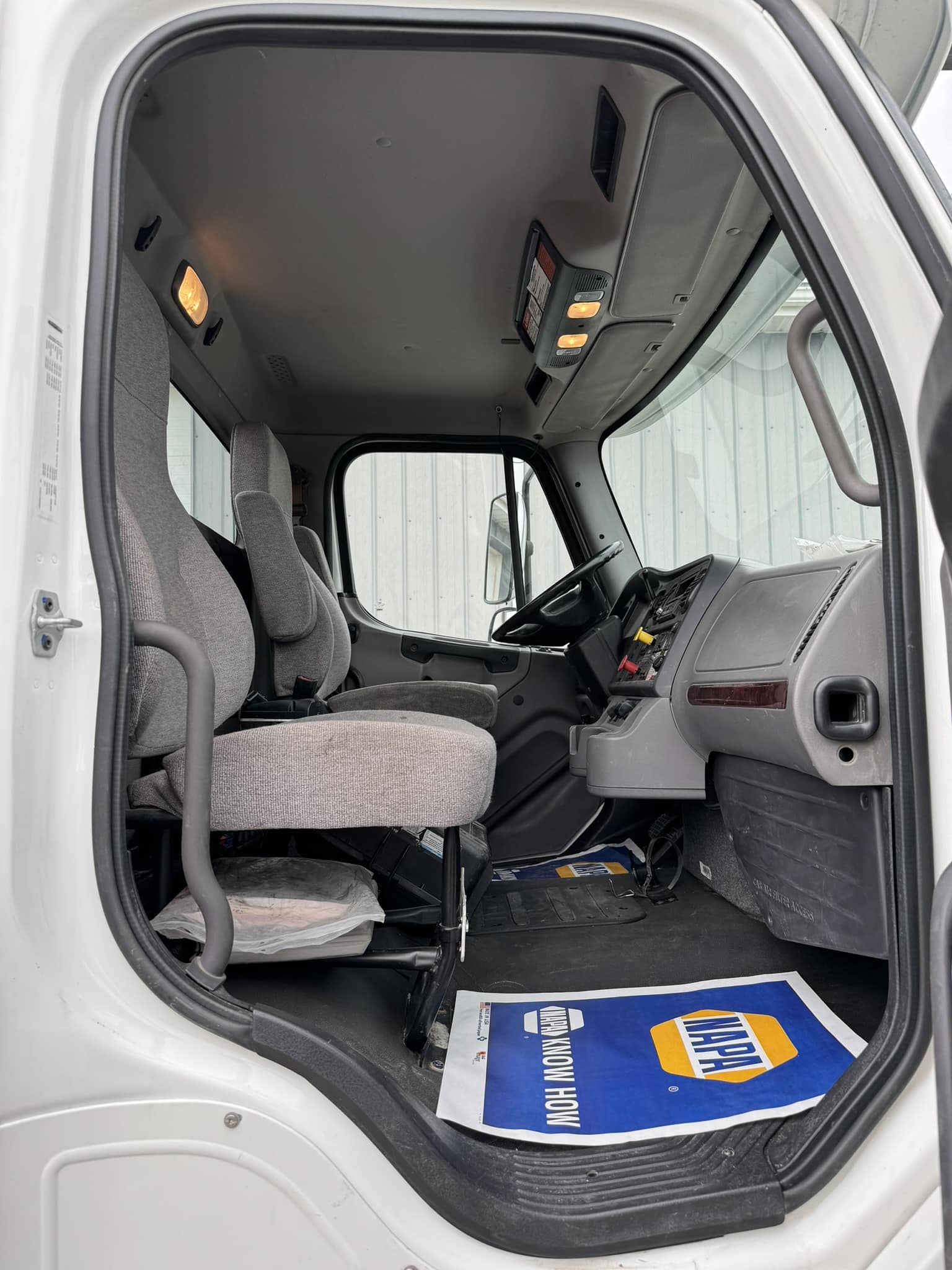

Interior Features: AM/FM/WX/CD/Bluetooth stereo, power windows & locks, 1 bucket seat, 1 bench seat

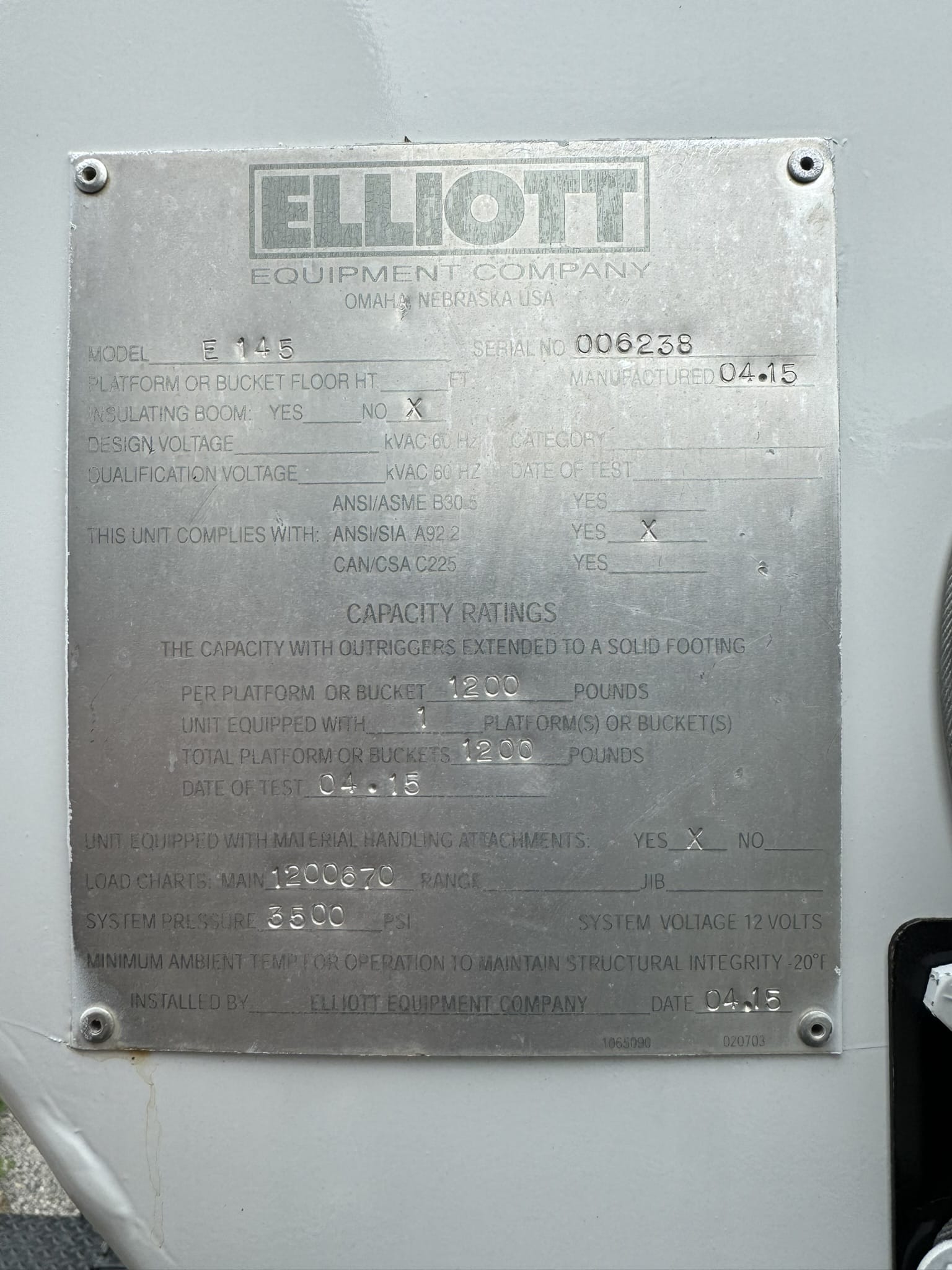

Boom & Platform – Elliott E‑145 E‑Line

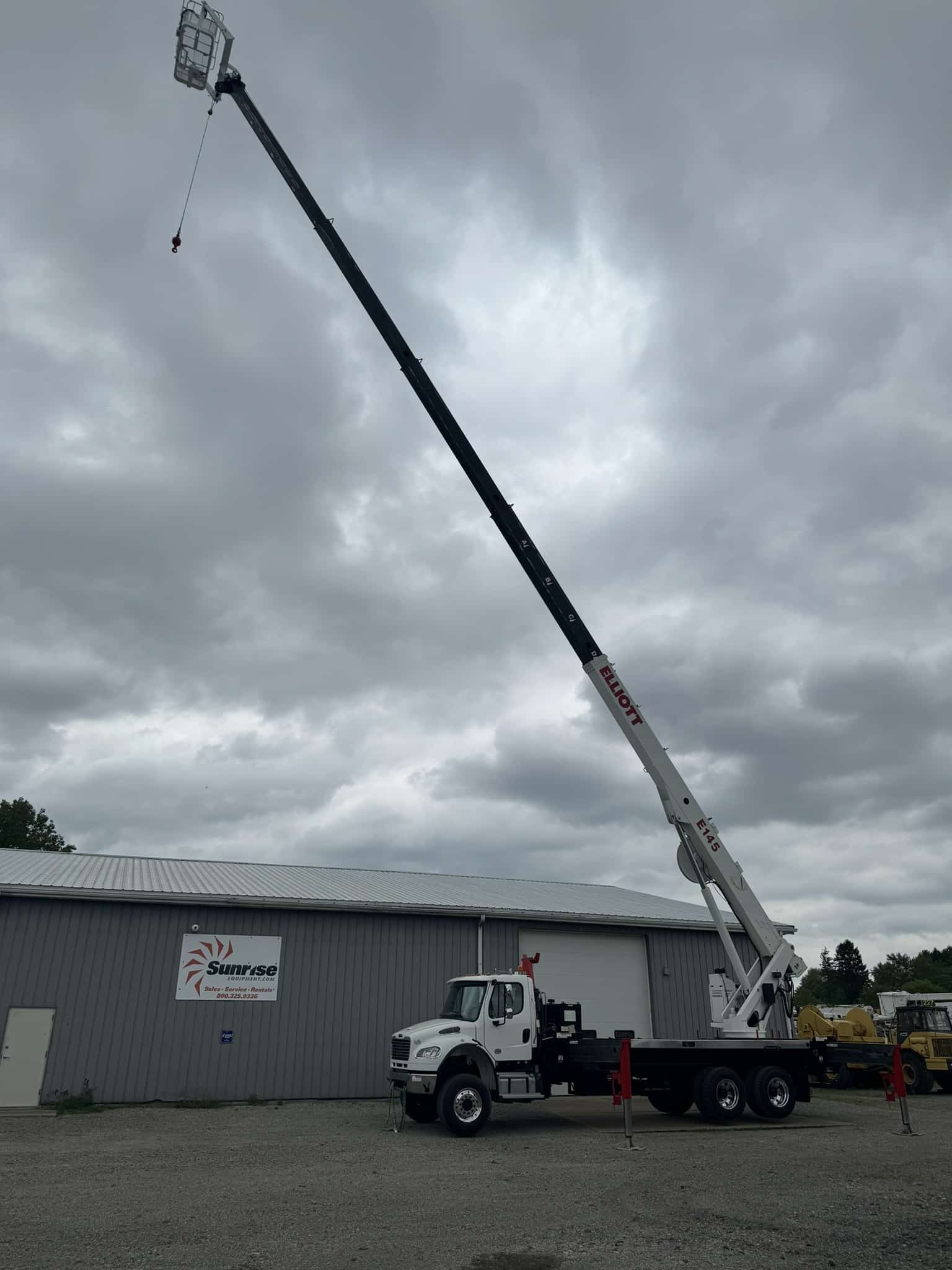

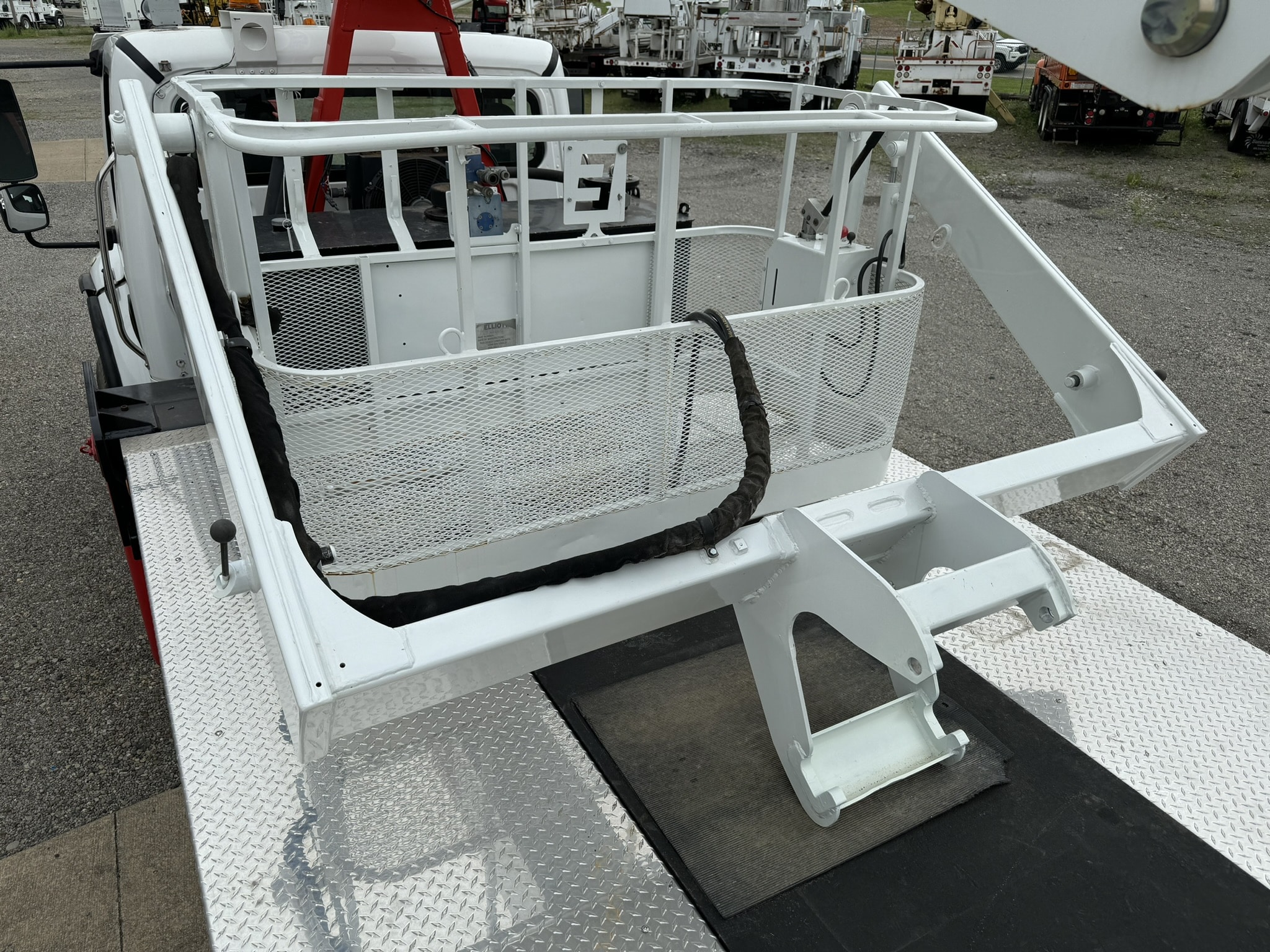

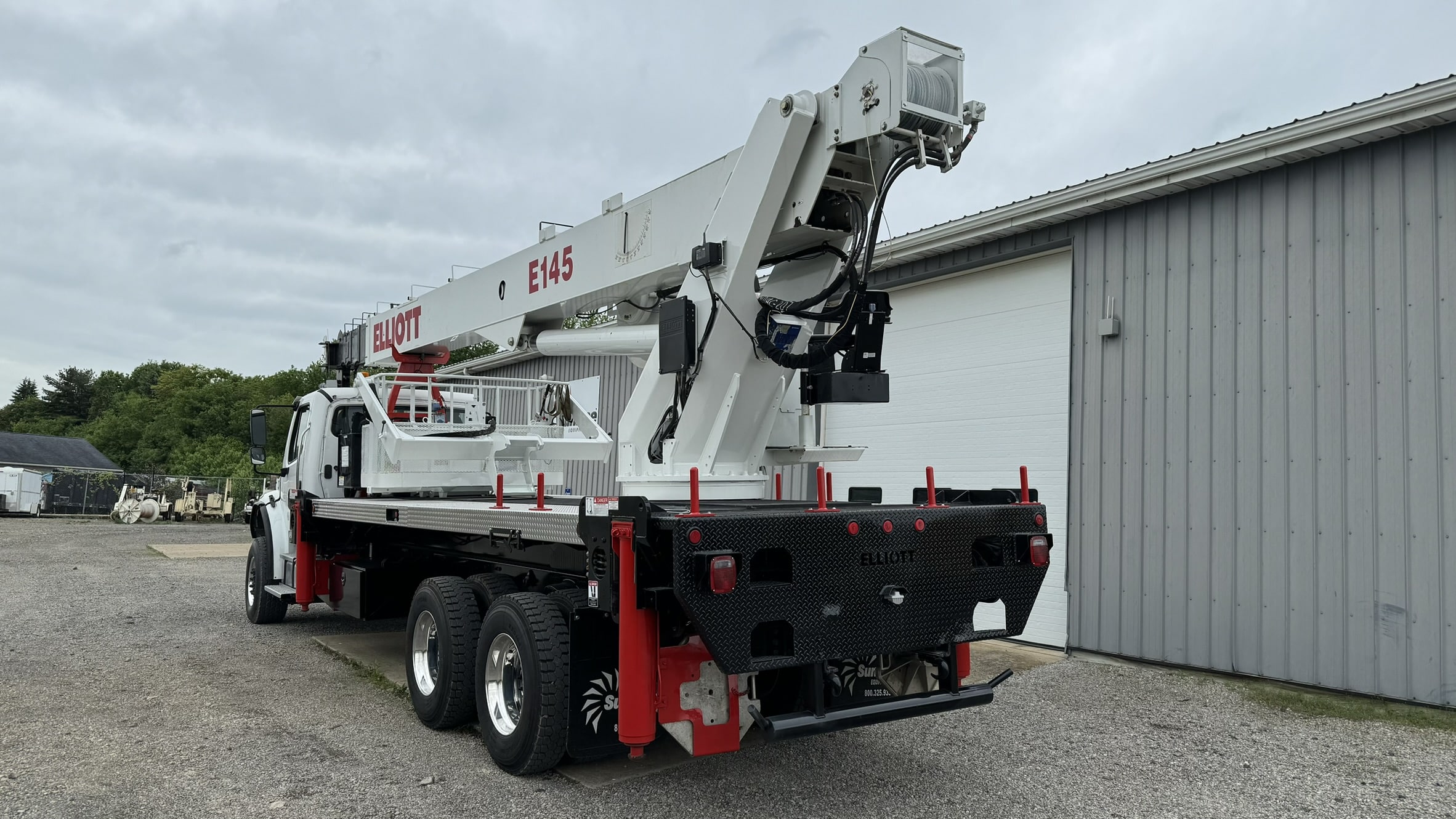

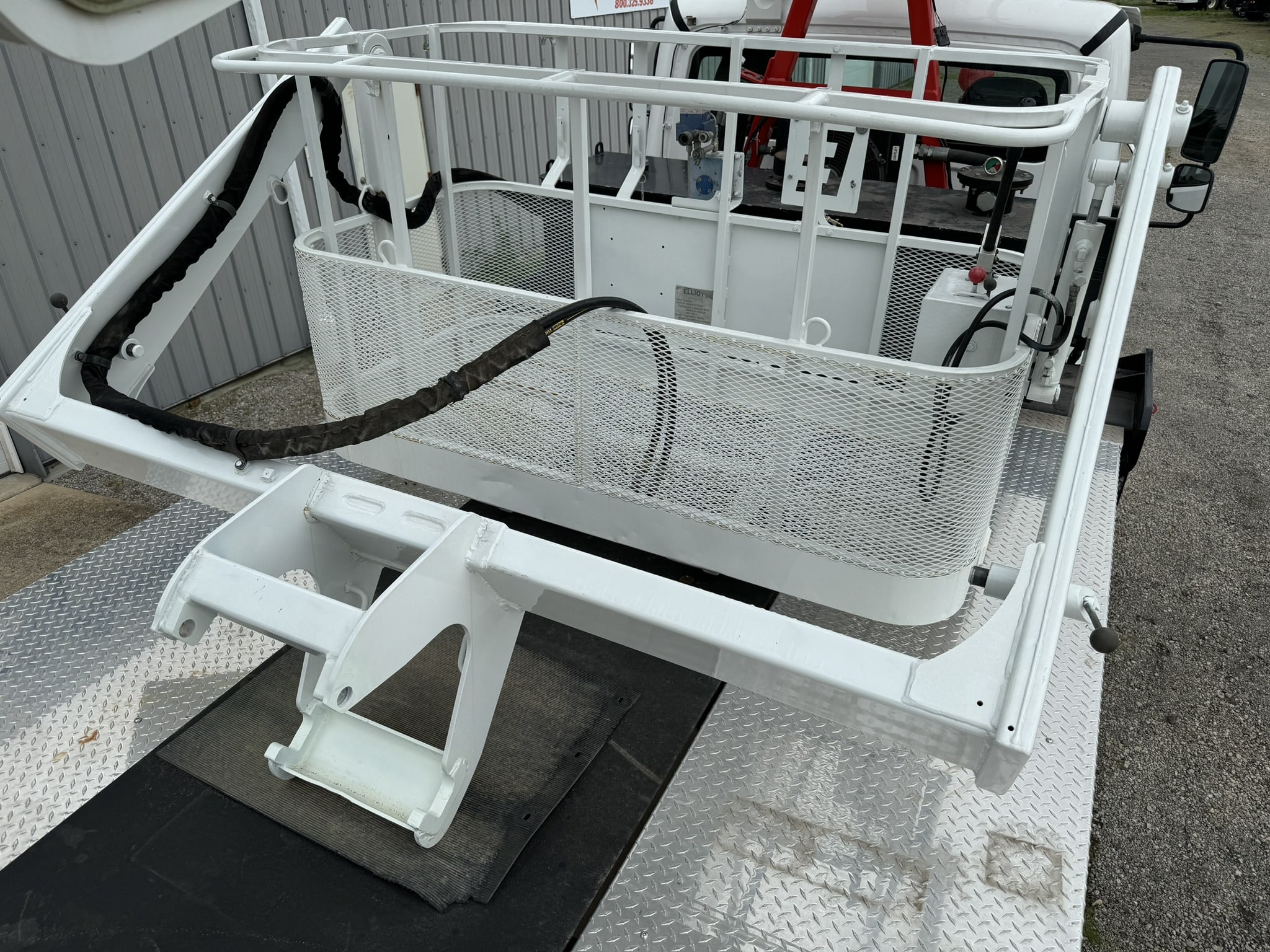

The Elliott E-145 E-Line is a 5-section telescopic aerial boom offering exceptional vertical and lateral outreach without sacrificing stability or safety. The steel yoke-mounted platform measures 36″ x 72″ and can carry up to 1,200 lbs, ideal for two workers plus tools or materials. The boom design allows full 360° continuous rotation, and the platform is hydraulically self-leveling and hydraulically rotating, providing optimal positioning for elevated work.
Boom Sections: 5-section hydraulic telescopic
Platform Size: 36″ x 72″
Platform Capacity: 1,200 lb (two-man)
Working Height: 145′
Side Reach: 80′
Main Winch: 18,000 lb capacity
Platform Type: Steel, yoke-mounted, gravity-leveled
Material Handling Boom: 9-ton crane functionality with powered winch

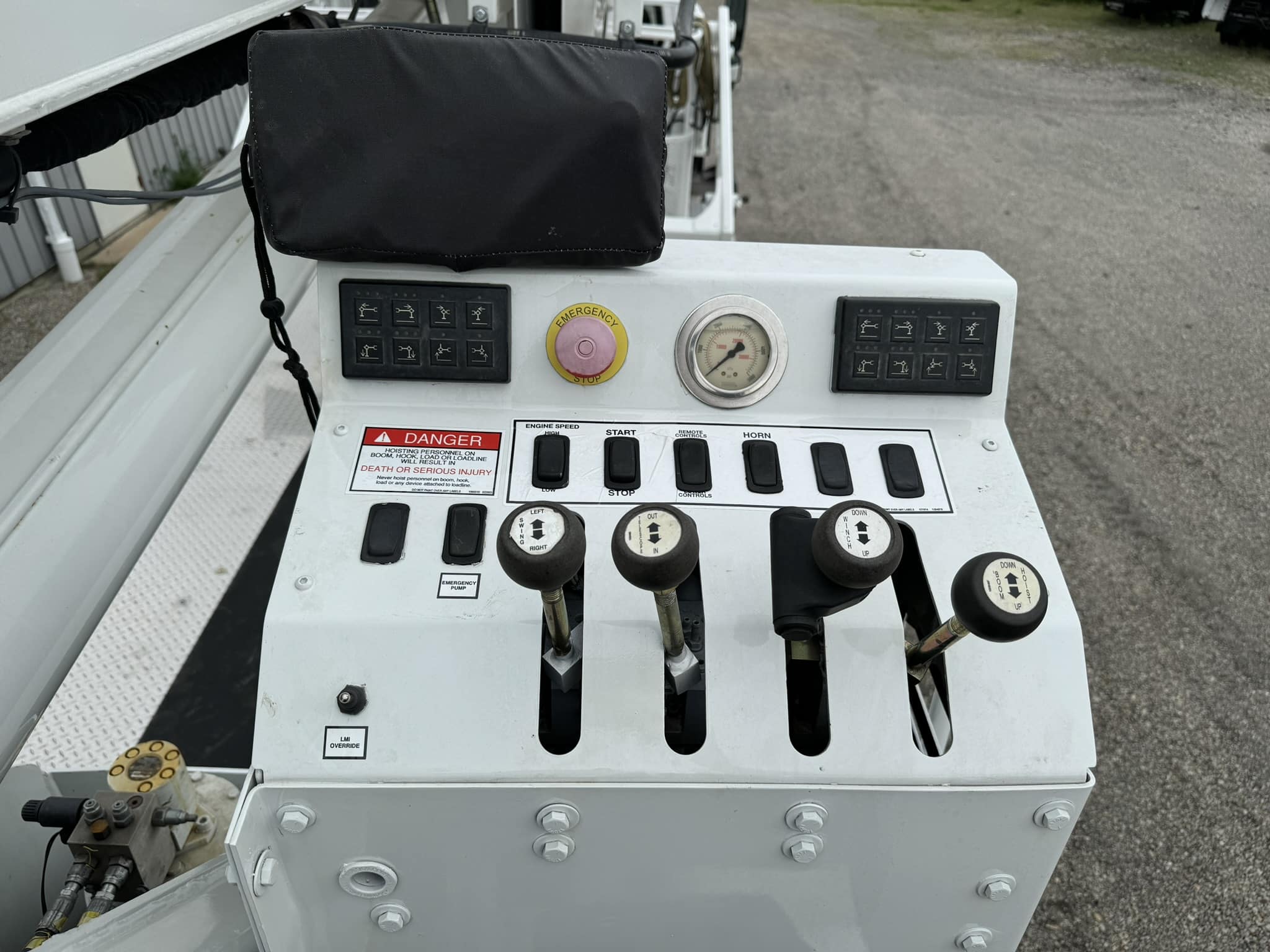

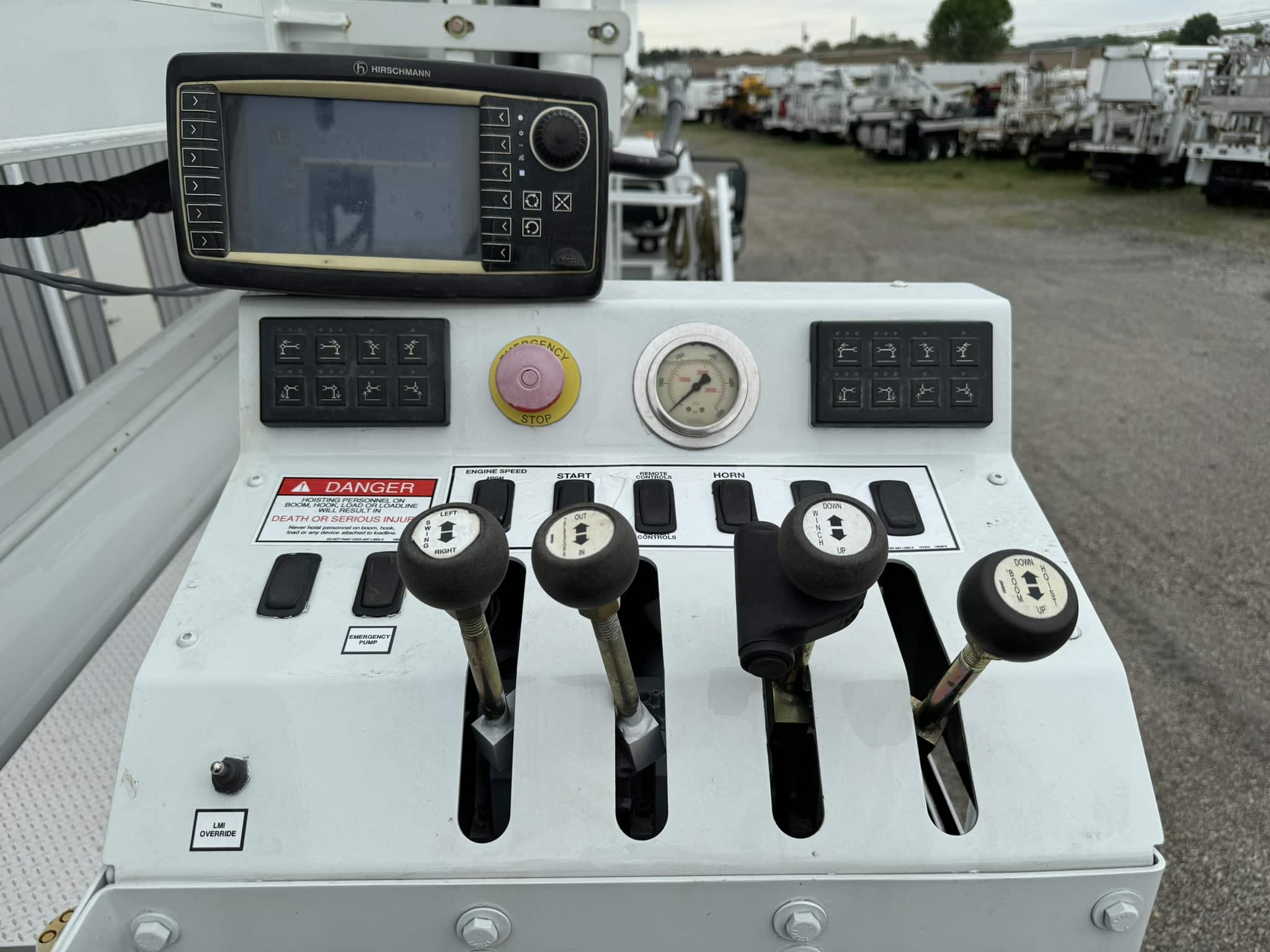

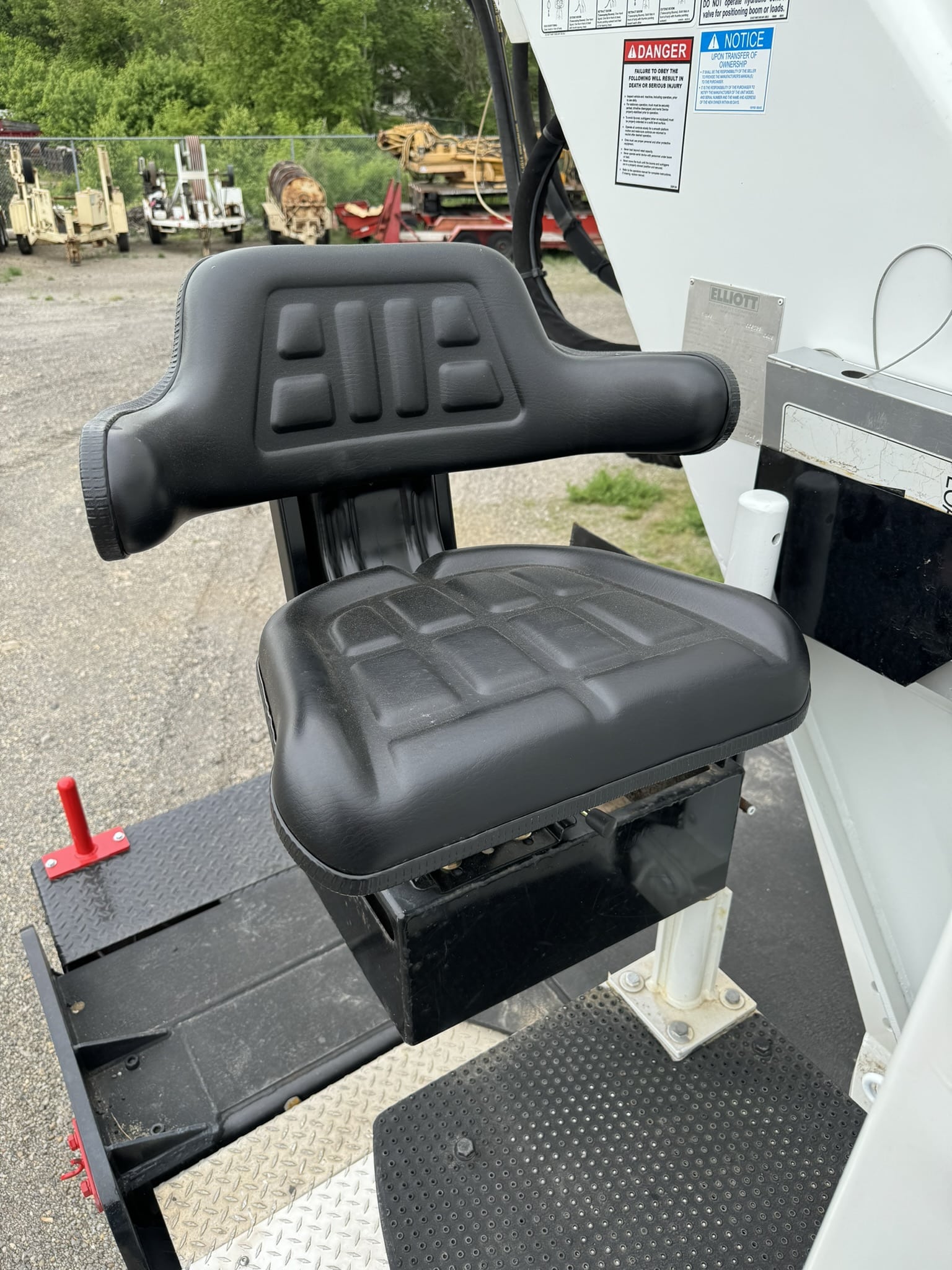

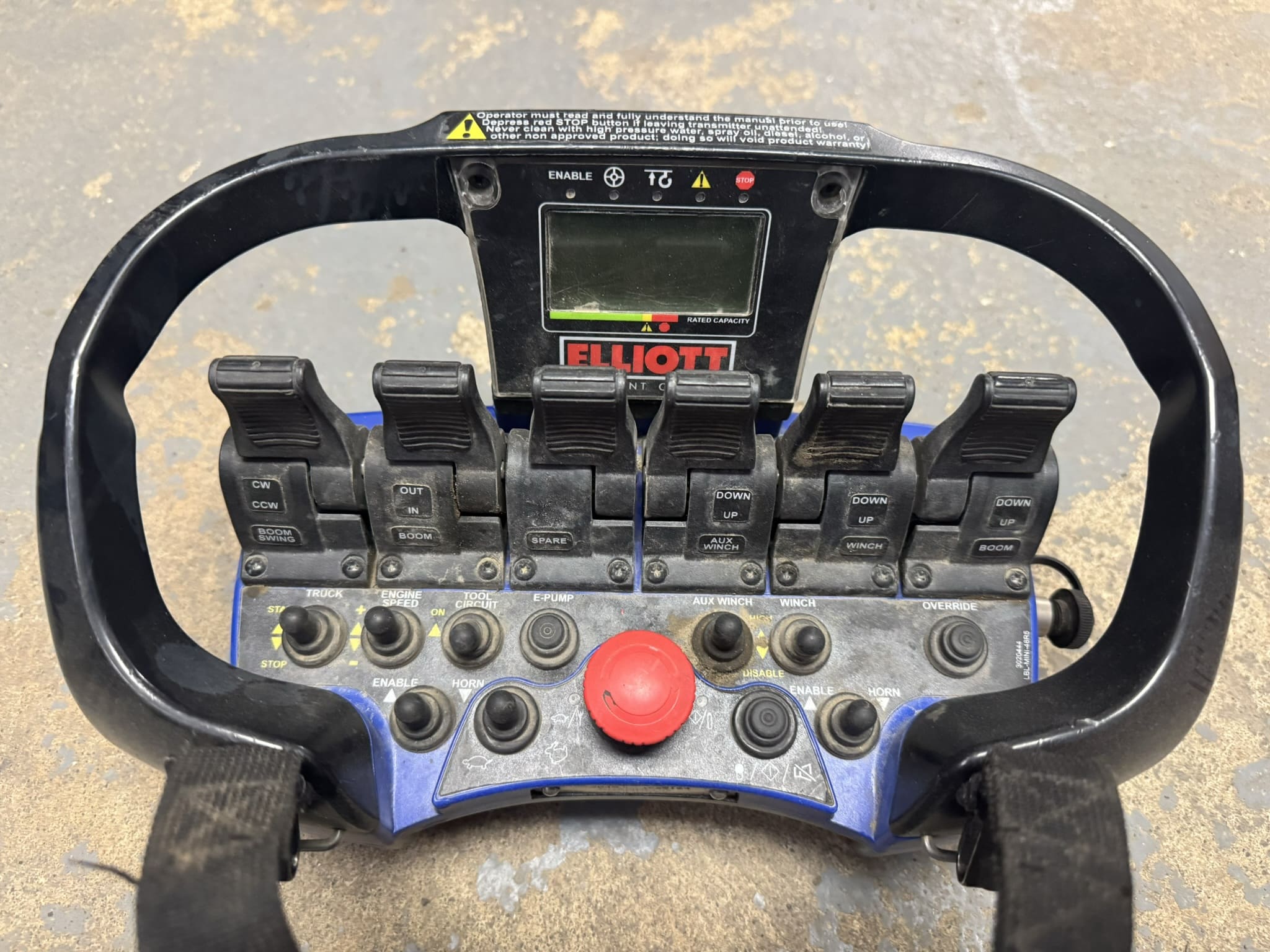

Controls: Lever-based ride-around controls, hydraulic tool circuit, remote radio controller

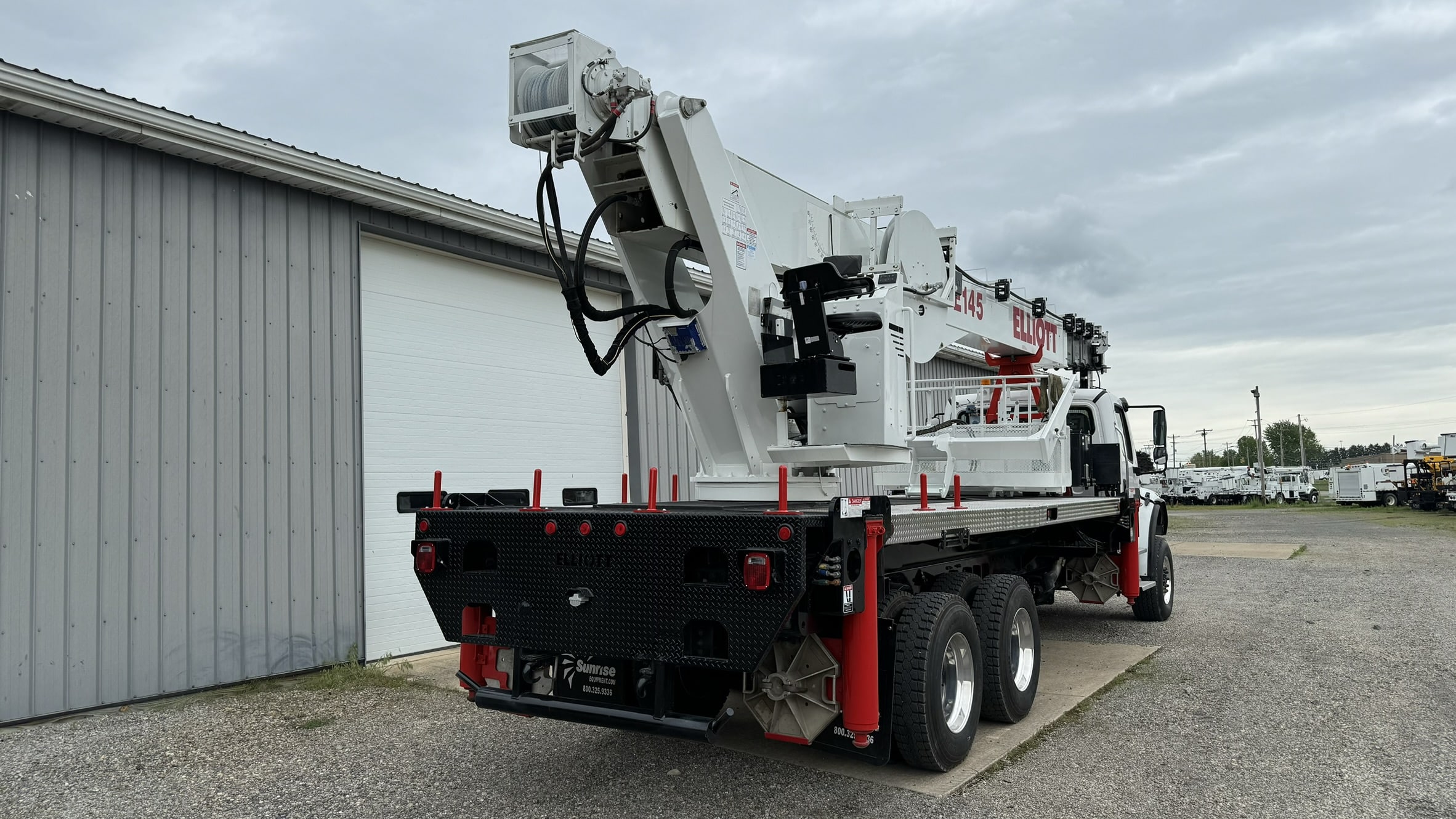

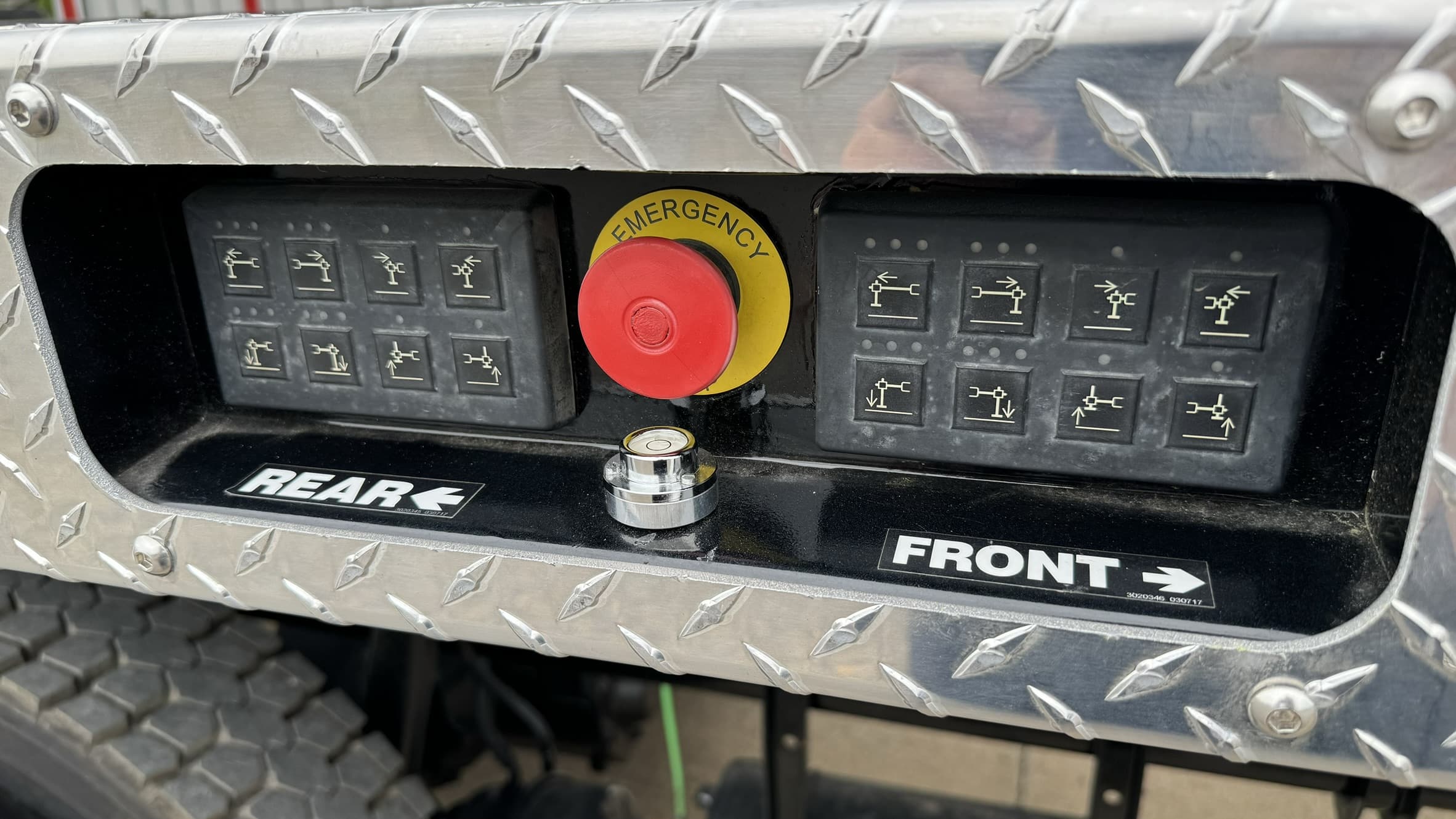

Outriggers: Front and Rear Out-Down EZ-Crib outriggers, 21’2″ spread front and rear
Wind Rating: Rated for up to 30 mph wind speeds
Unit Hours: 3,894 (aerial unit only)
Insulation: Non-insulated
Additional Features: Hydraulic hose reel, grounding lug, LMI system with anti-two block and speed reduction, tool circuit intensifier
Elliott’s E-Line series is engineered for serious jobsite demands. The E-145 model includes a rugged boom structure, oversized boom pads, and a reinforced subframe that supports full-capacity lifts at extended outreach. The EZ-Crib outriggers provide fast, stable deployment with minimal cribbing needs, even on uneven terrain. This unit is designed to perform with confidence and precision for years.
This truck is perfectly suited for:
Transmission line construction and maintenance
Wind energy blade and nacelle work
High-mast lighting and sports field lighting installs
Utility service and high-voltage infrastructure
Sign and billboard maintenance
Specialized lift services needing extreme height and reach
Contact us today for more details, spec sheet, or video walkthrough. This is a rare find with low miles, low hours, high-reach capabilities and work-ready.

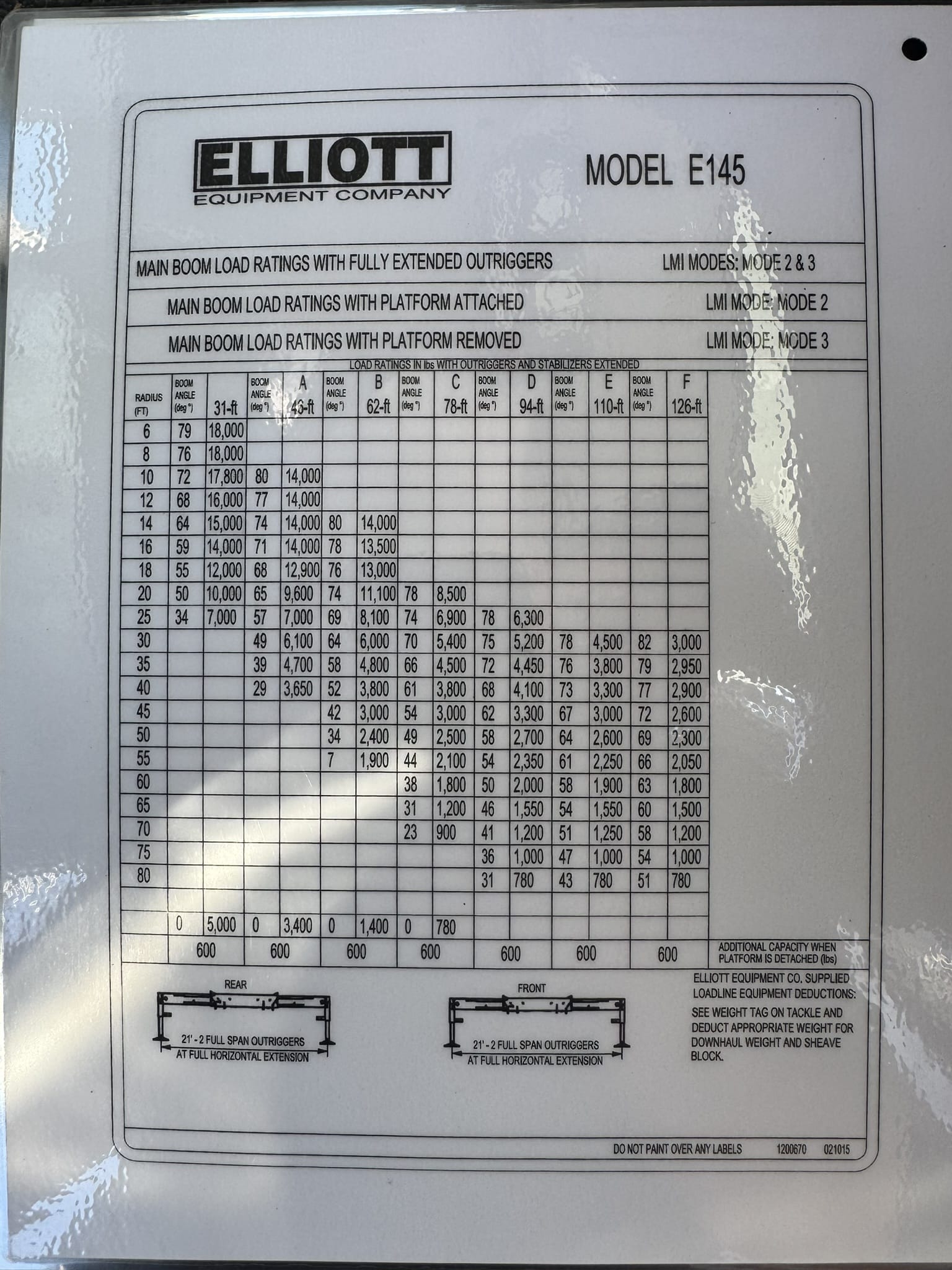

Elliot Technical Specifications:
https://elliottequip.com/wp-content/uploads/2020/10/E145_Spec_Brochure-2020.pdf
SR# 4304
Sale Price: $378,000
