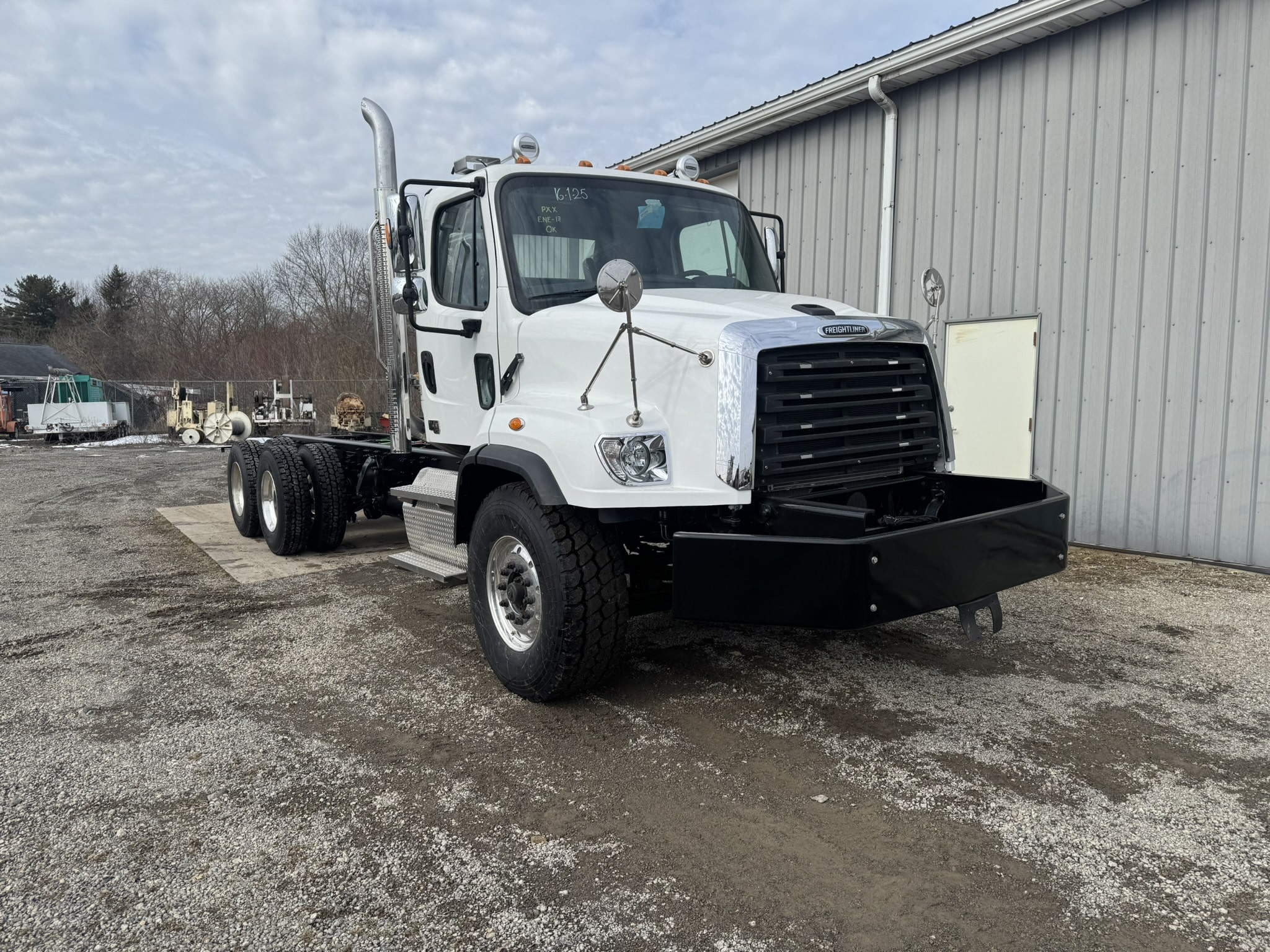

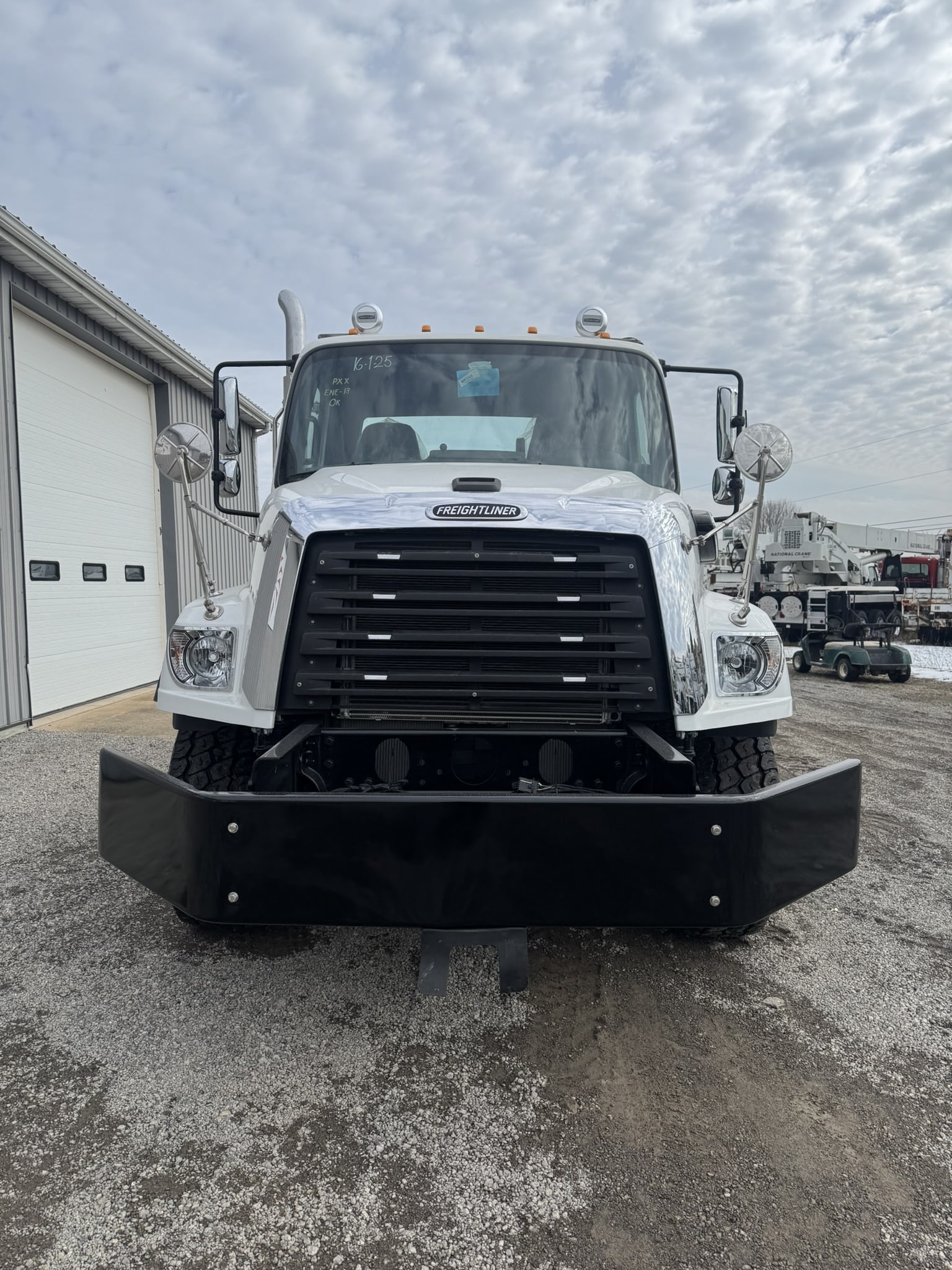

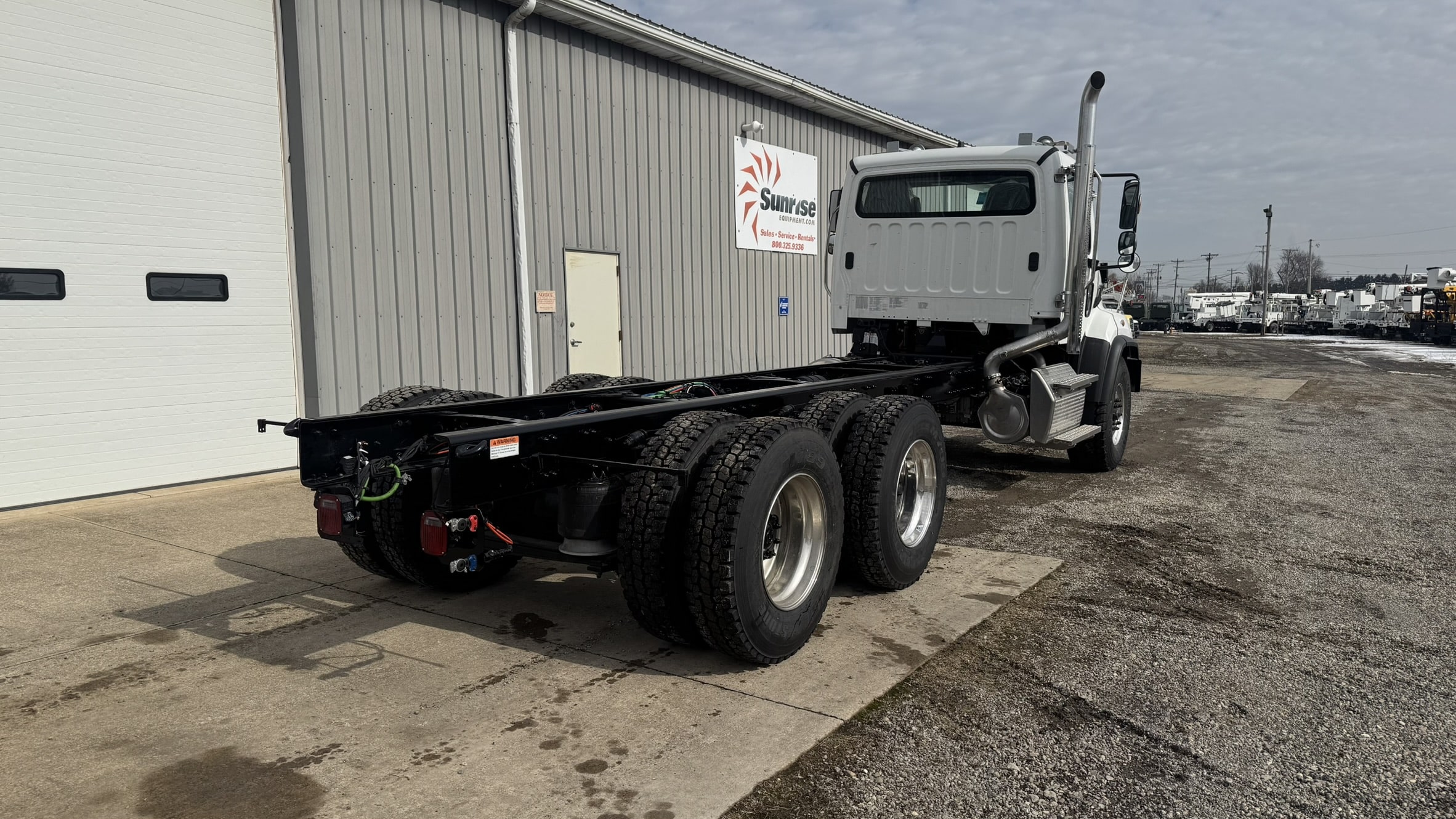

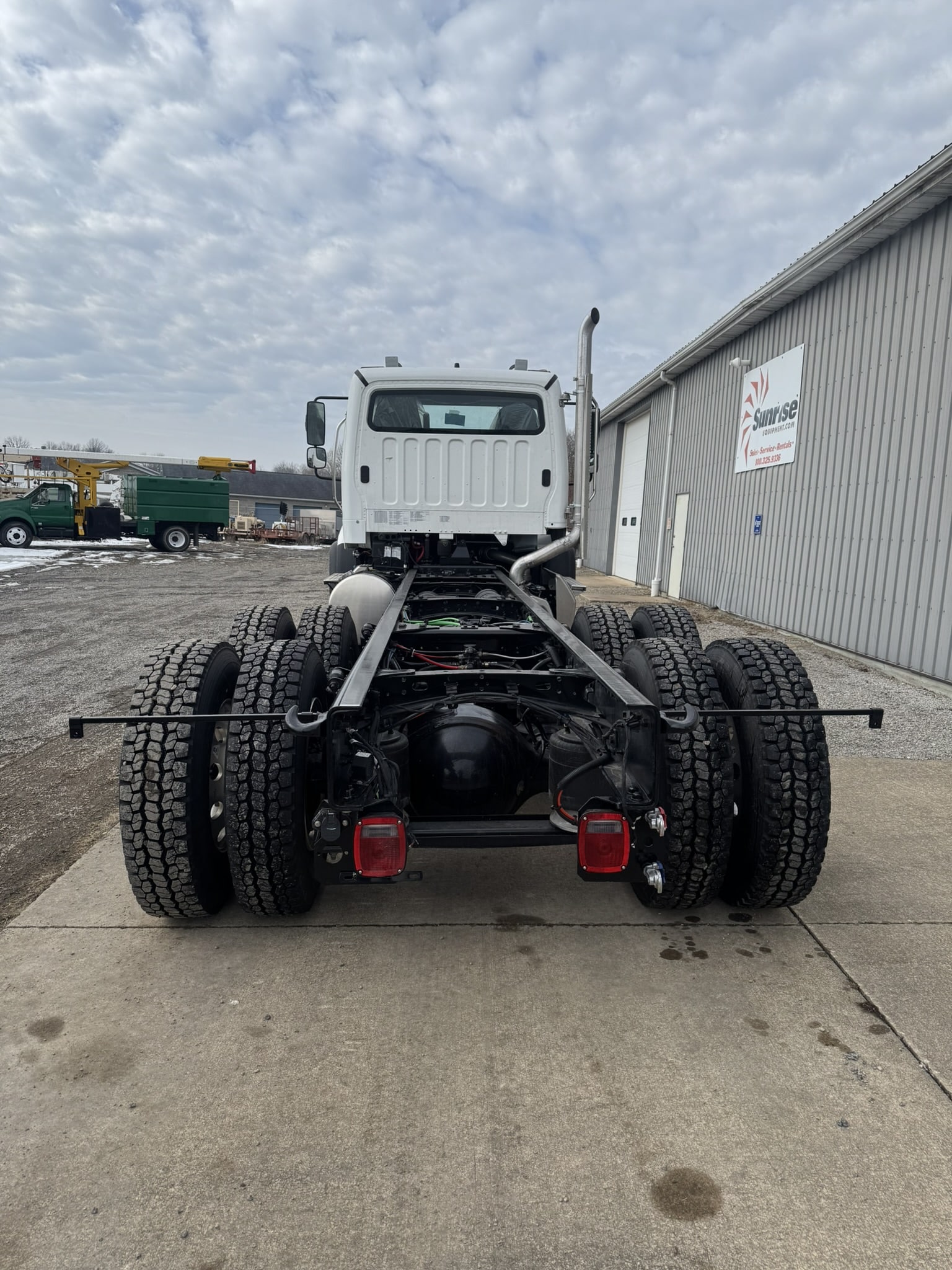

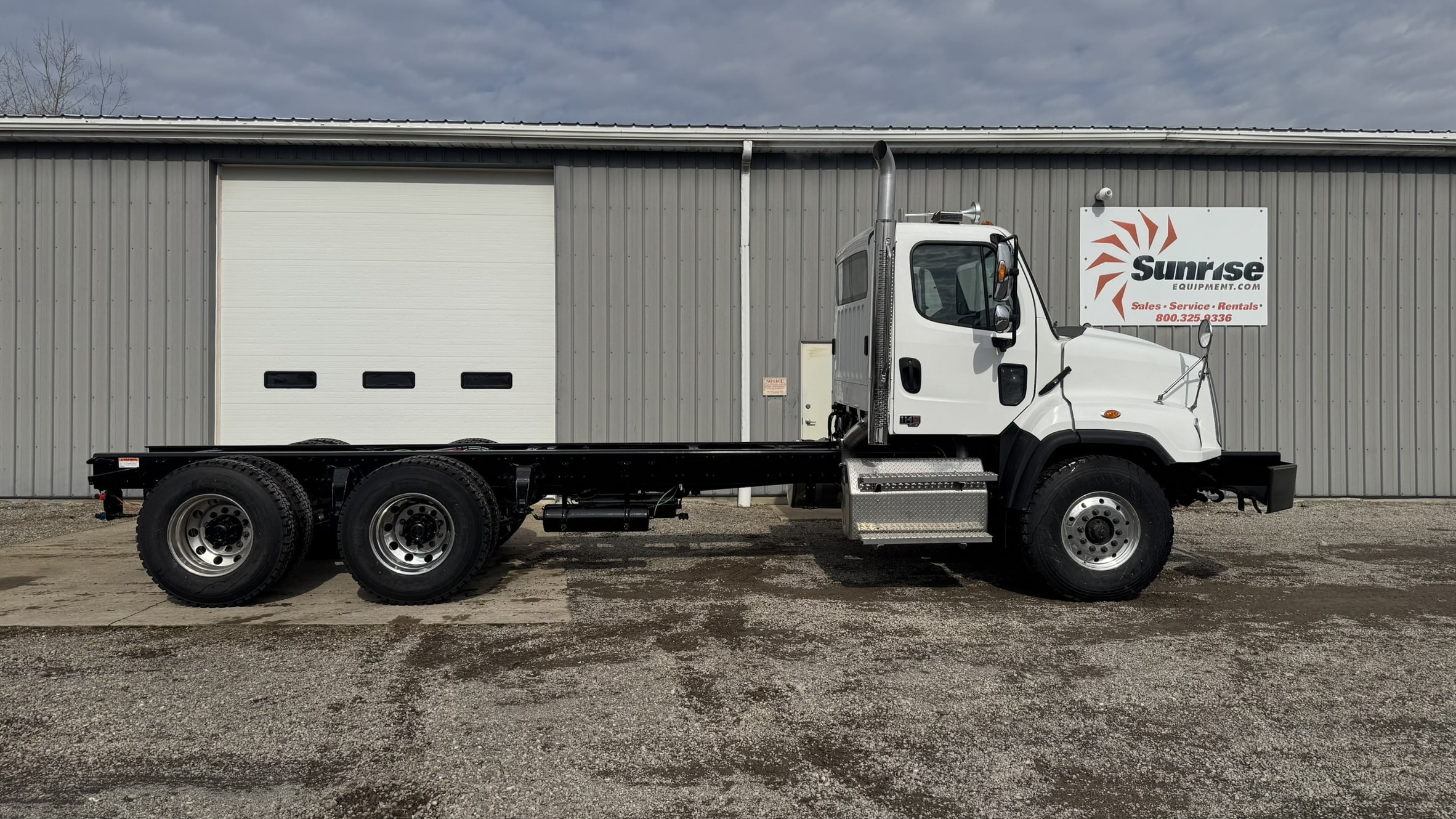

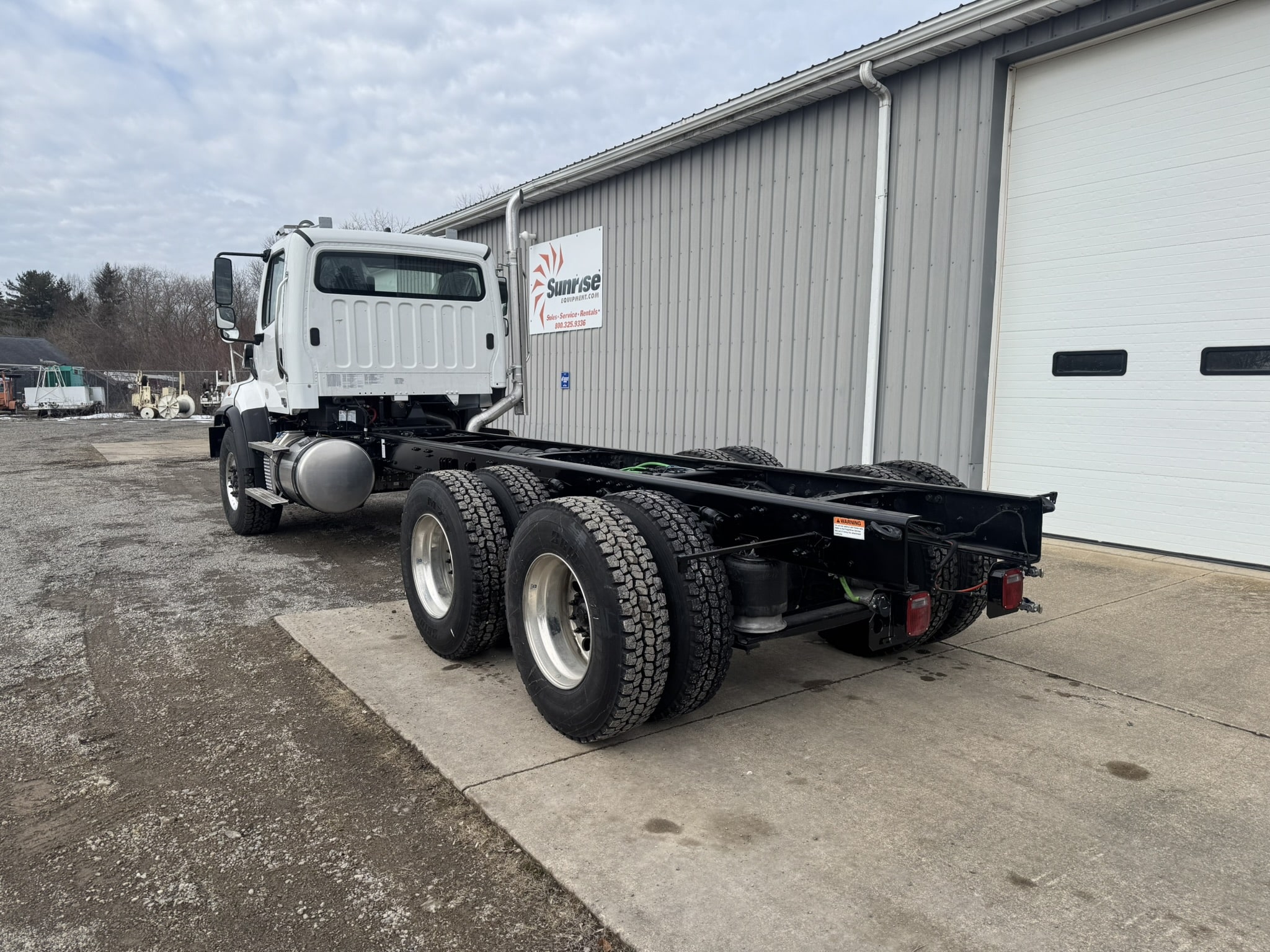

2026 FREIGHTLINER 114SD PLUS 6×4 CAB & CHASSIS 500 CUMMINS 4500 ALLISON TRANSMISSION

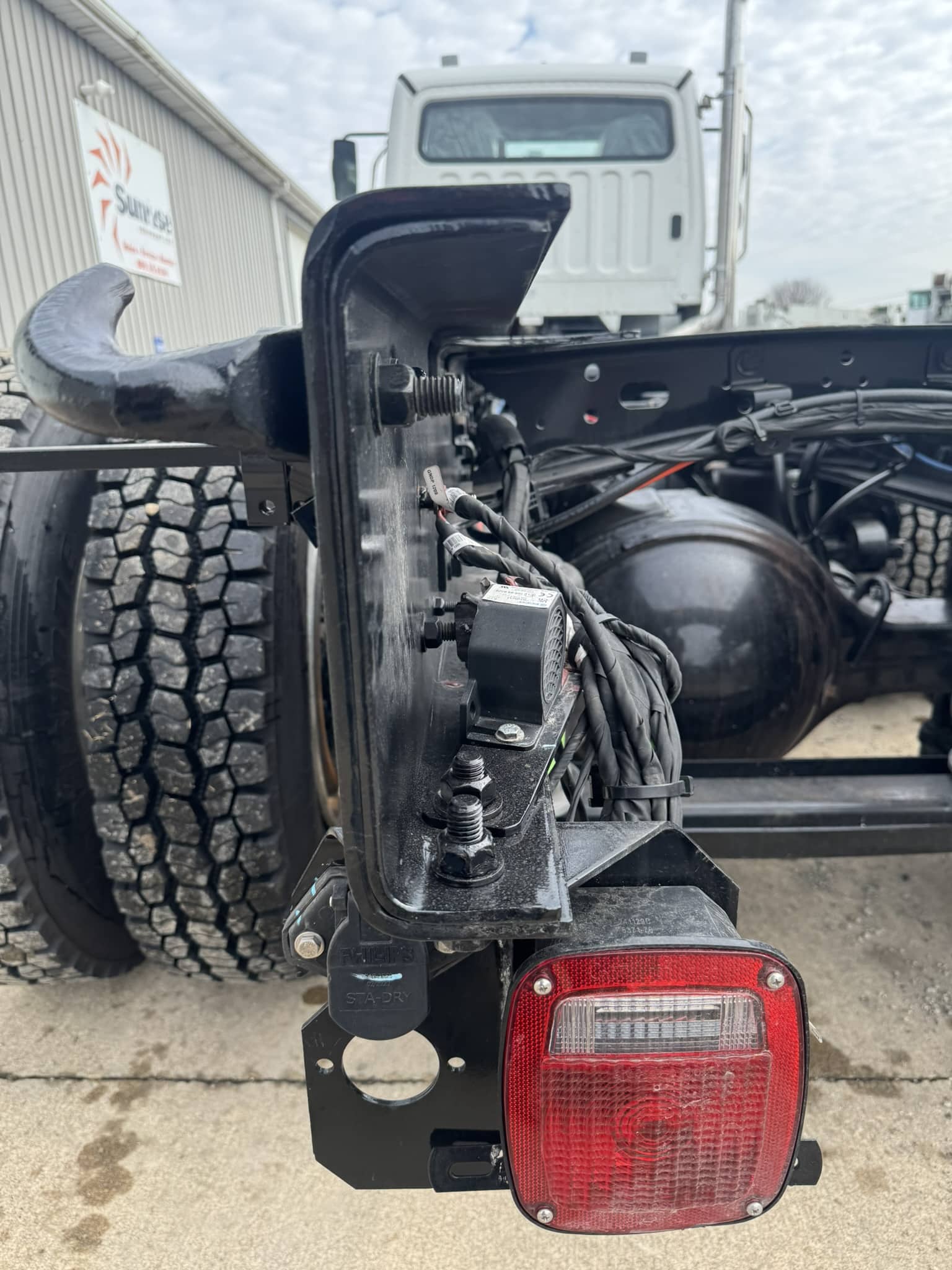

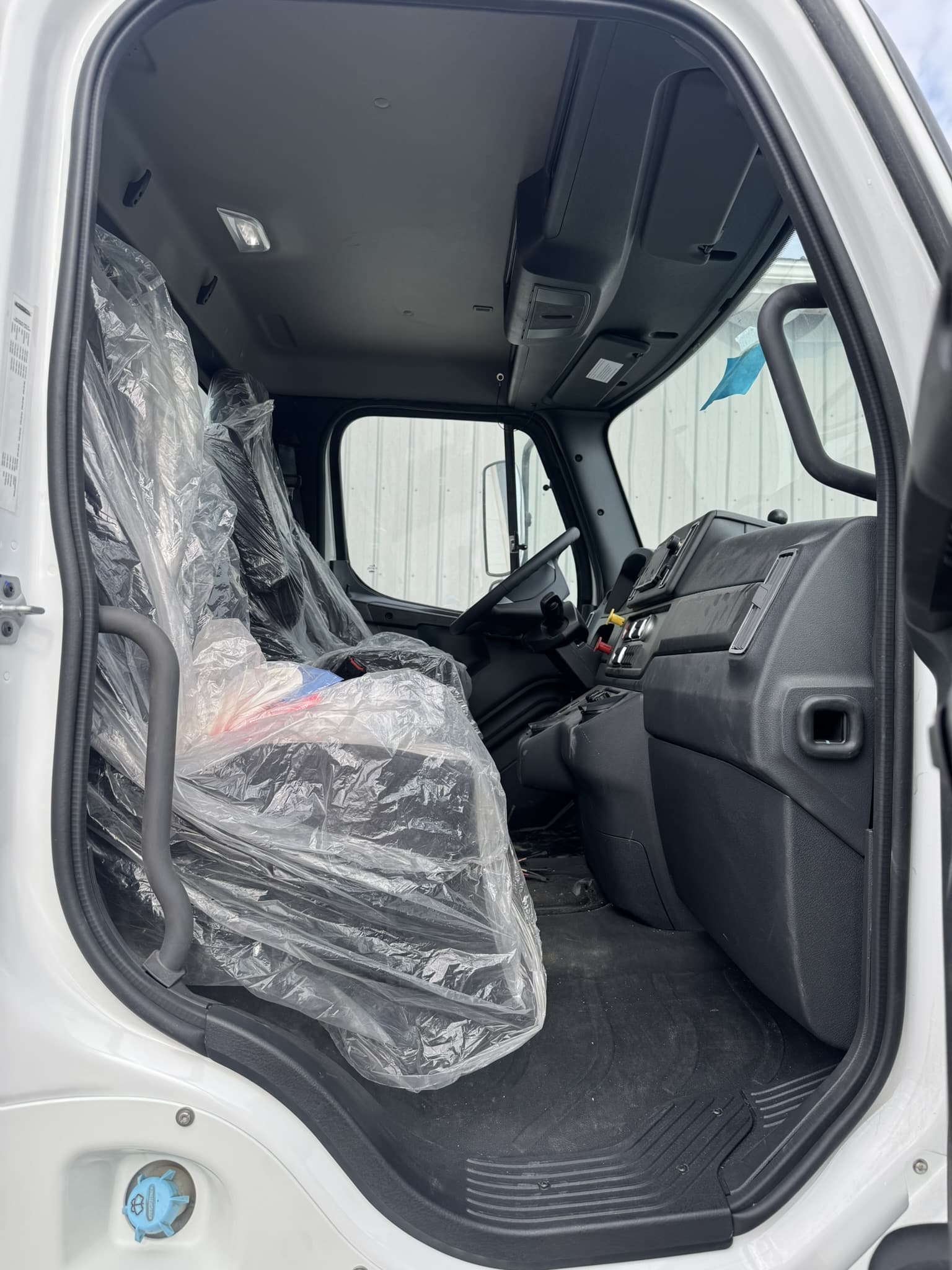

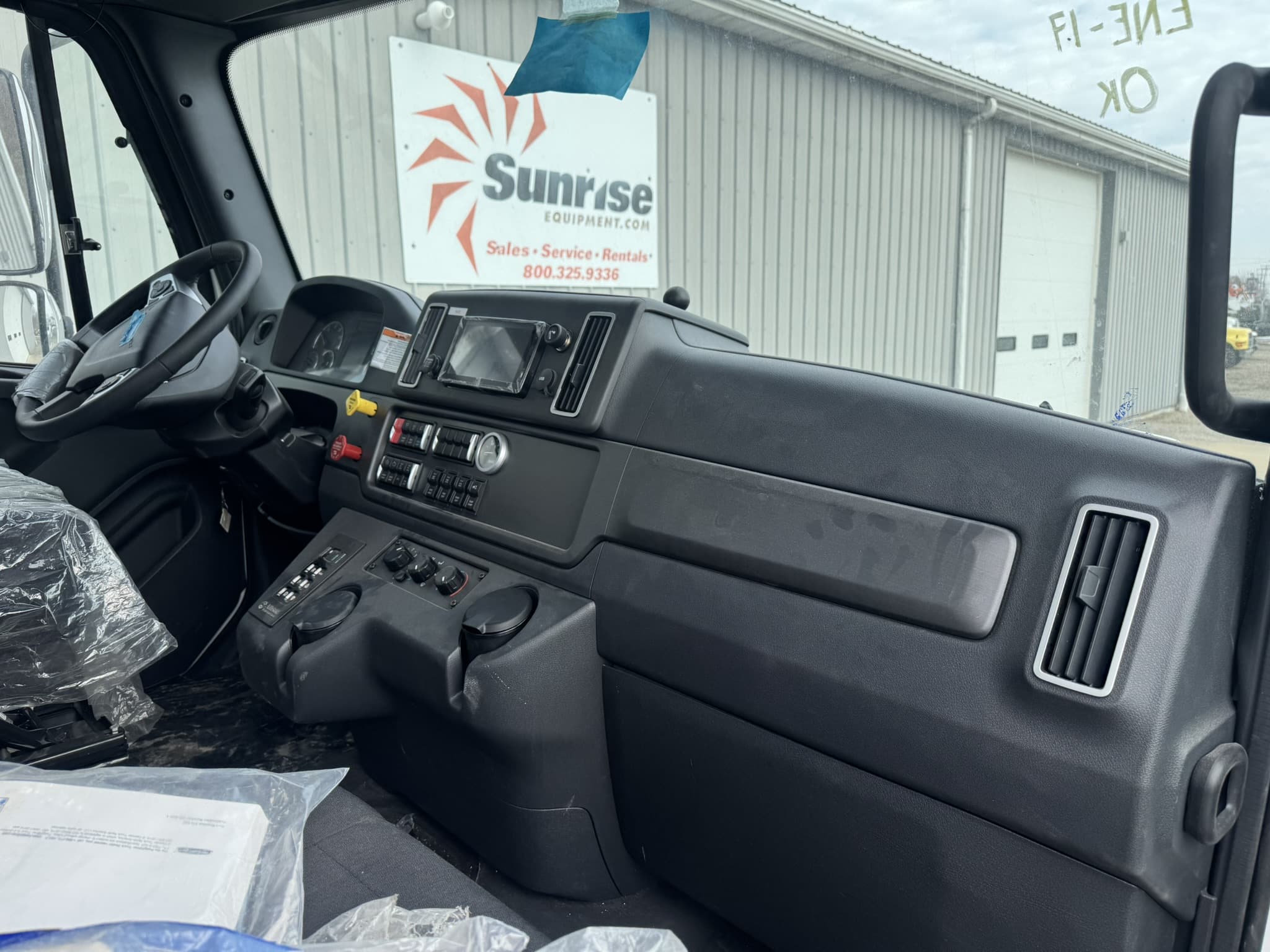

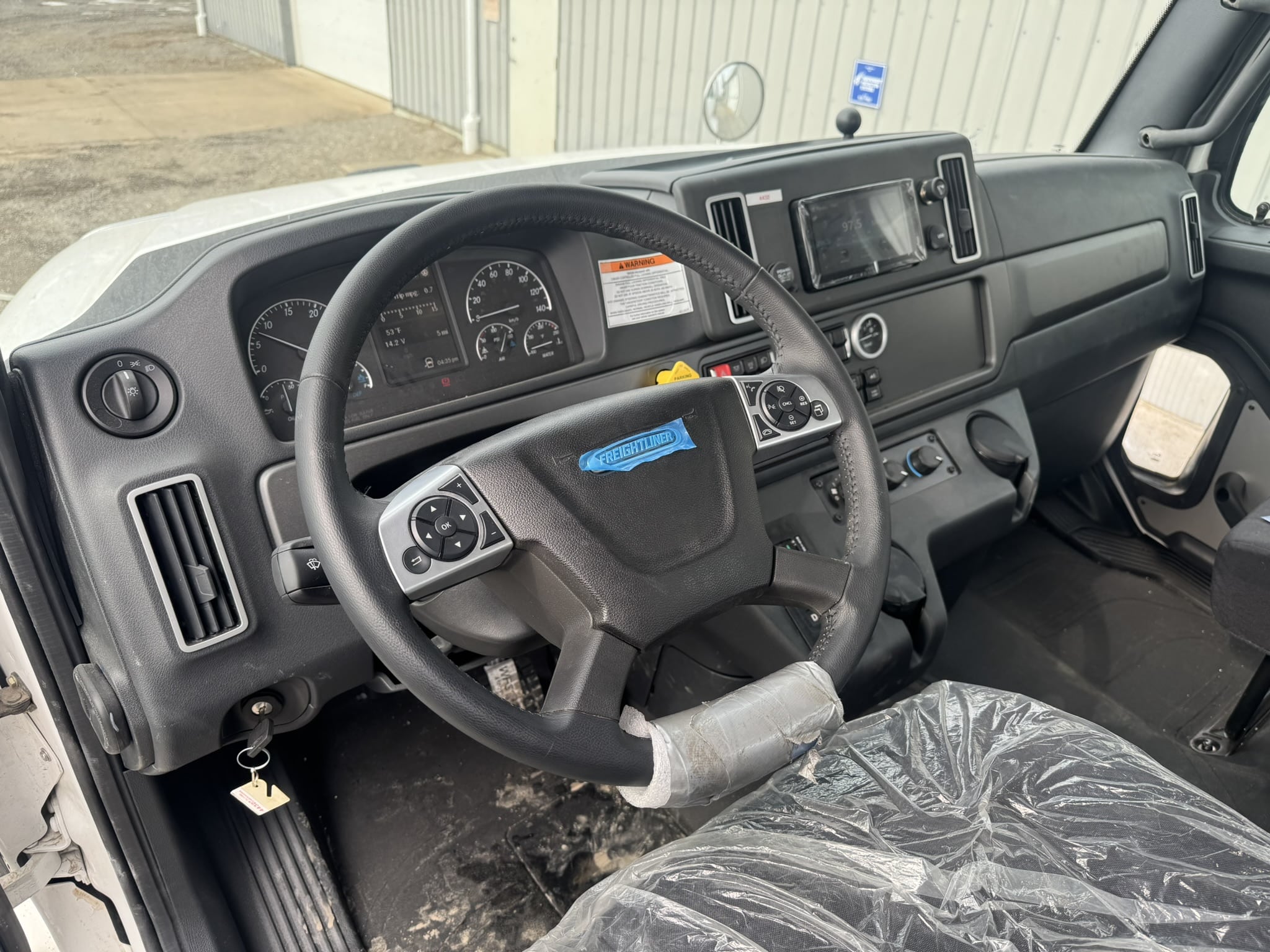

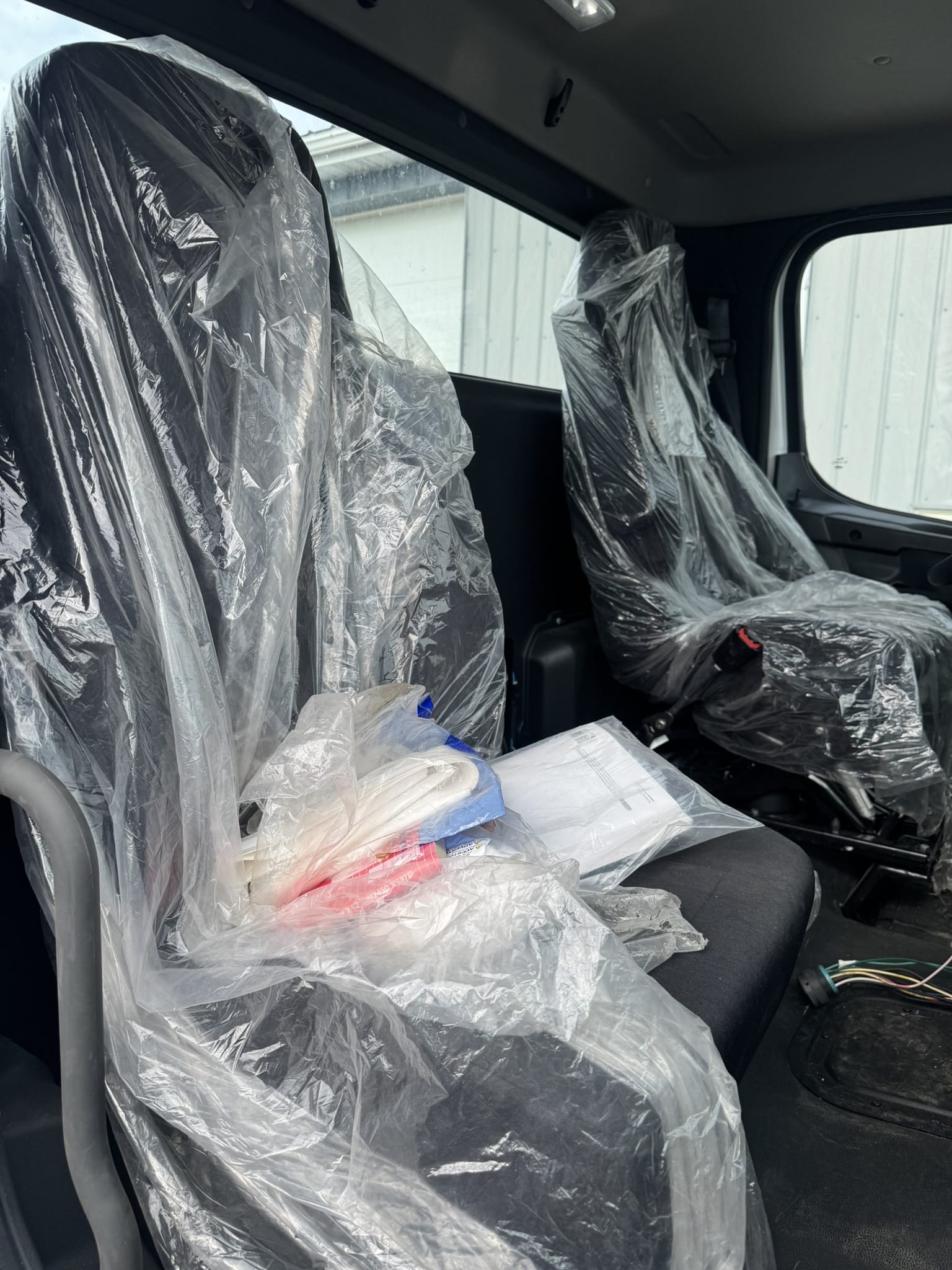

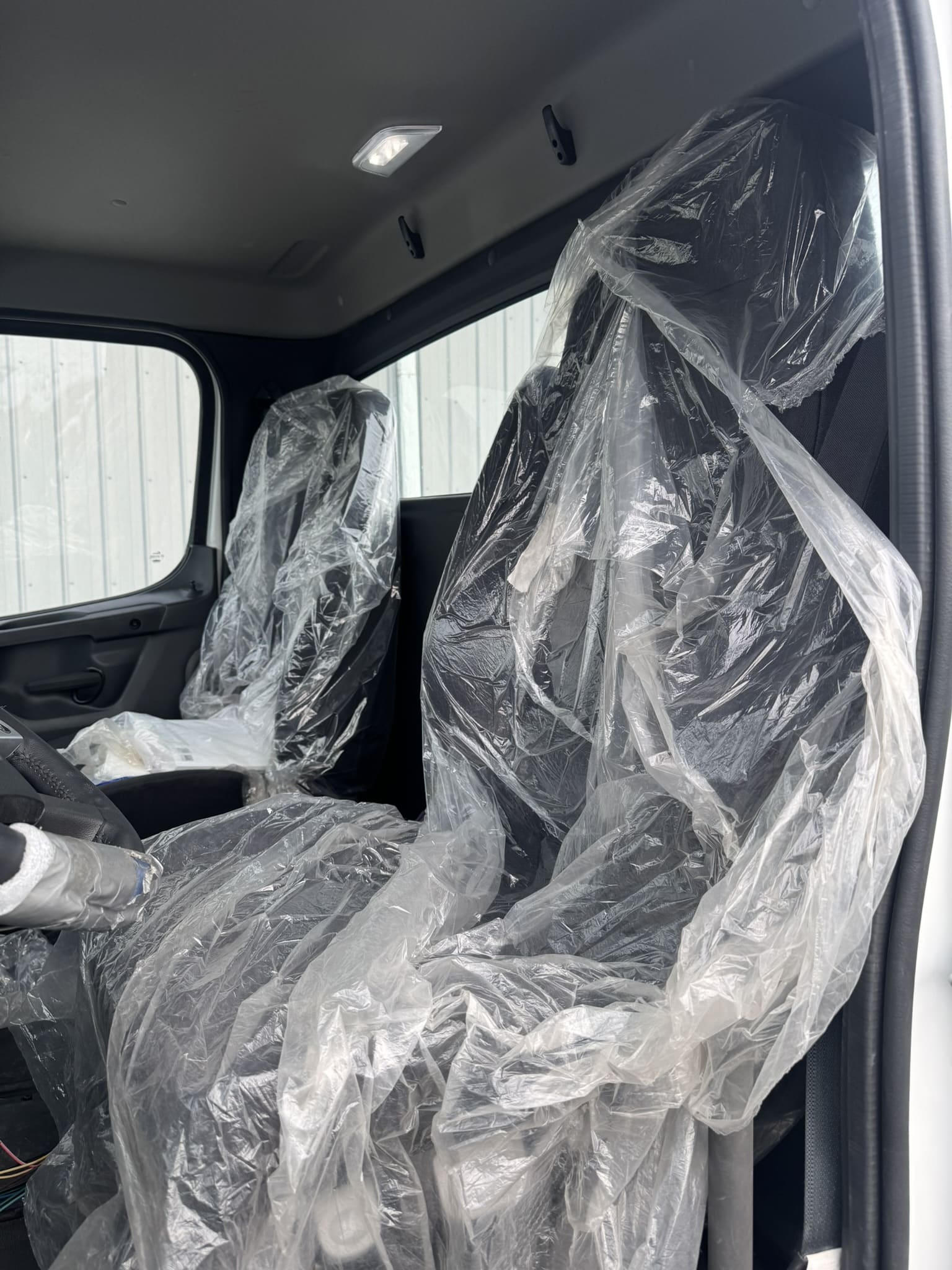

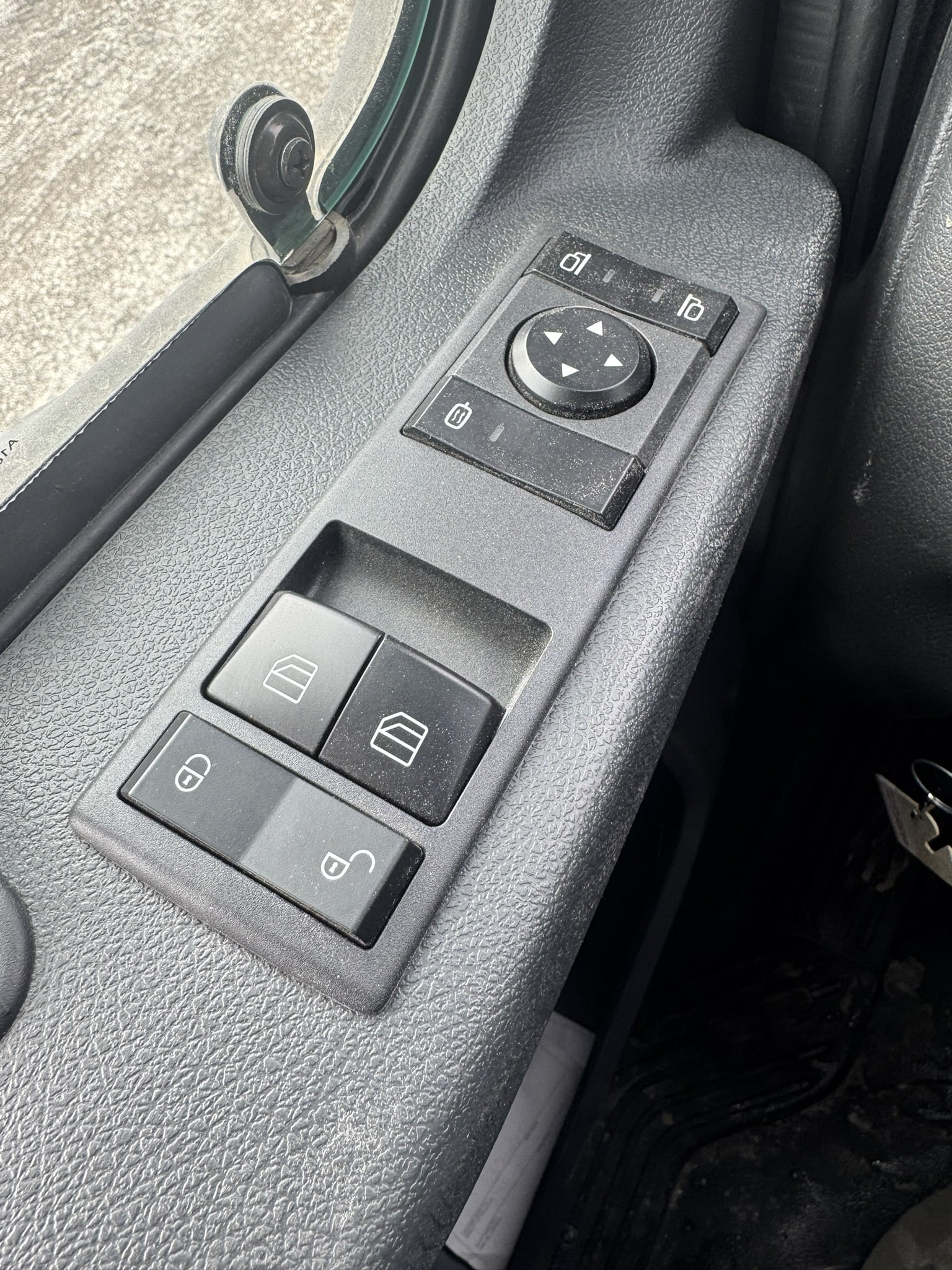

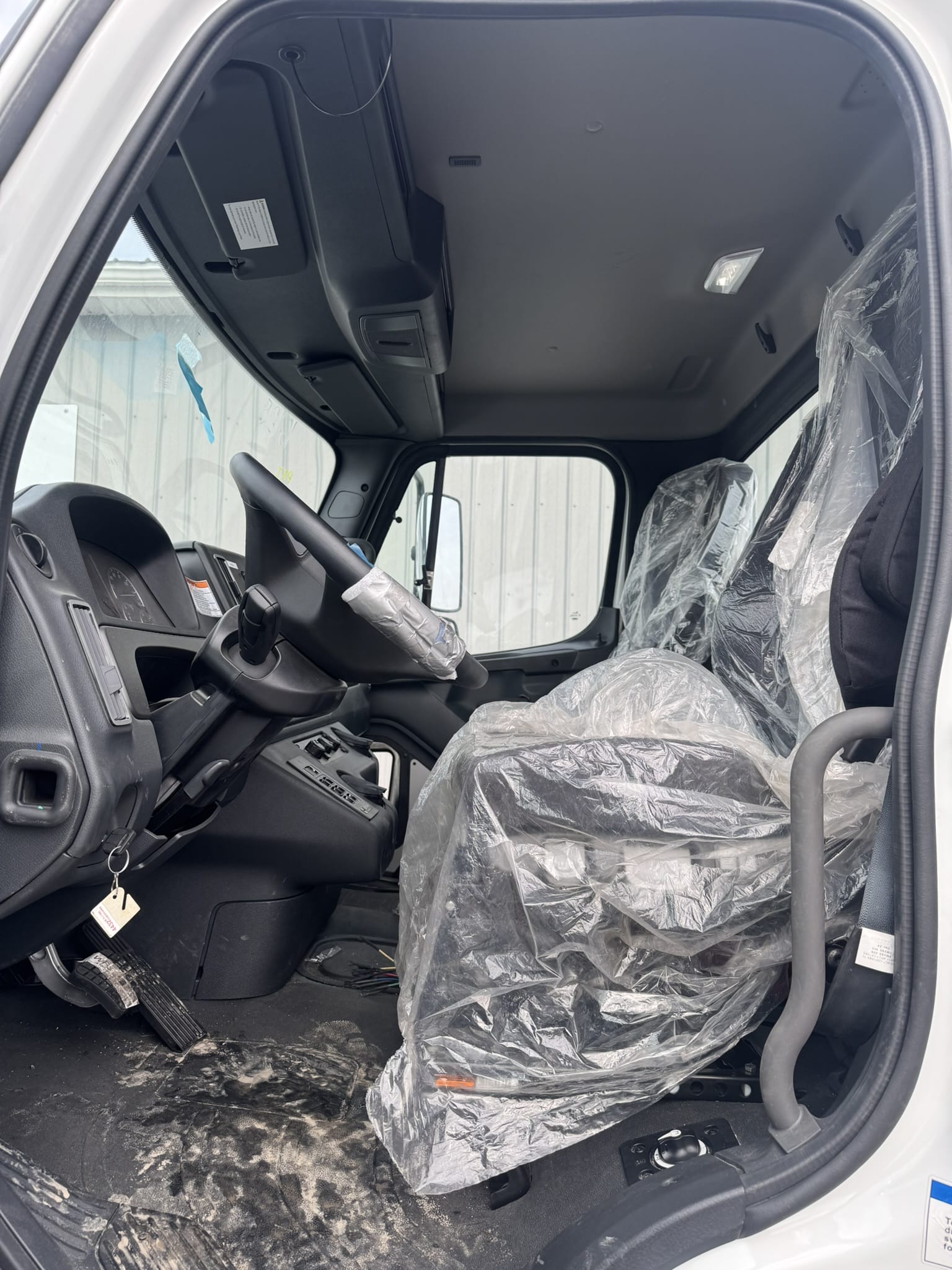

2026 Freightliner 114SD plus cab and chassis featuring a Cummins X12 500V HP, 6-speed Allison 4500 RDS Automatic transmission, Meritor 20,000 lb front axle and Meritor 46,000 lbs rear axles, 66,000 lbs GVWR- 425/65R 22.5 Front tires and 11R 22.5 rear tires, air brakes, 162″ CT measurement, Setback front axle, Airliner rear leaf suspension, trailer towing provision at the end of frame with SAE J560 connector, PTO plate Top and drivers side 3/4″ frane thickness, Touchscreen- AM/FM/Bluetooth Radio, 2 bucket seats, power windows, power locks, power mirrors, tilt steering wheel & crusise control.

Engine & Transmission
Powered by a Cummins X12 500 11.8L diesel engine pushing 500 HP! This truck ensures optimal power and efficiency.

Exterior Features
Side of hood air intake with firewall mounted donaldson air cleaner with safety element and inside/outside air with snow door
Positive load disconnect, in cab control switch monted onboard of driver seat
Positive & negative posts for jumpstart located on frame next to starter.
RH outboard under step mounted horizontal aftertreatment system assembly with RH b-pillar mounted vertical tailpipe
Non-polished aluminum diamond plate diesel exhaust fluid tank cover

Chassis & Axles
Designed for heavy-duty applications, the truck features:

20,000 lbs front axles and Meritor 46,000 lbs rear axles with a 4.10 rear axle ratio.
A double frame- 3/4″ thick for robust structural integrity.
A total GVWR of 66,000 lbs for heavy loads.

Additional Components

Flywheel PTO mounted at 1 o’clock with a 12.17 ratio and viscous damper.
Phillips-Temro 1500-watt block heater for reliable cold-weather starts.
PTO Plate on the bottom of the transmission

Suspension & Brakes

Airliner 46,000 lbs rear suspension with electric dump switch and dual air leveling valves.
Meritor Q+ rear brakes and WABCO 4S/4M ABS with traction control for enhanced safety and control.

Tires & Wheels

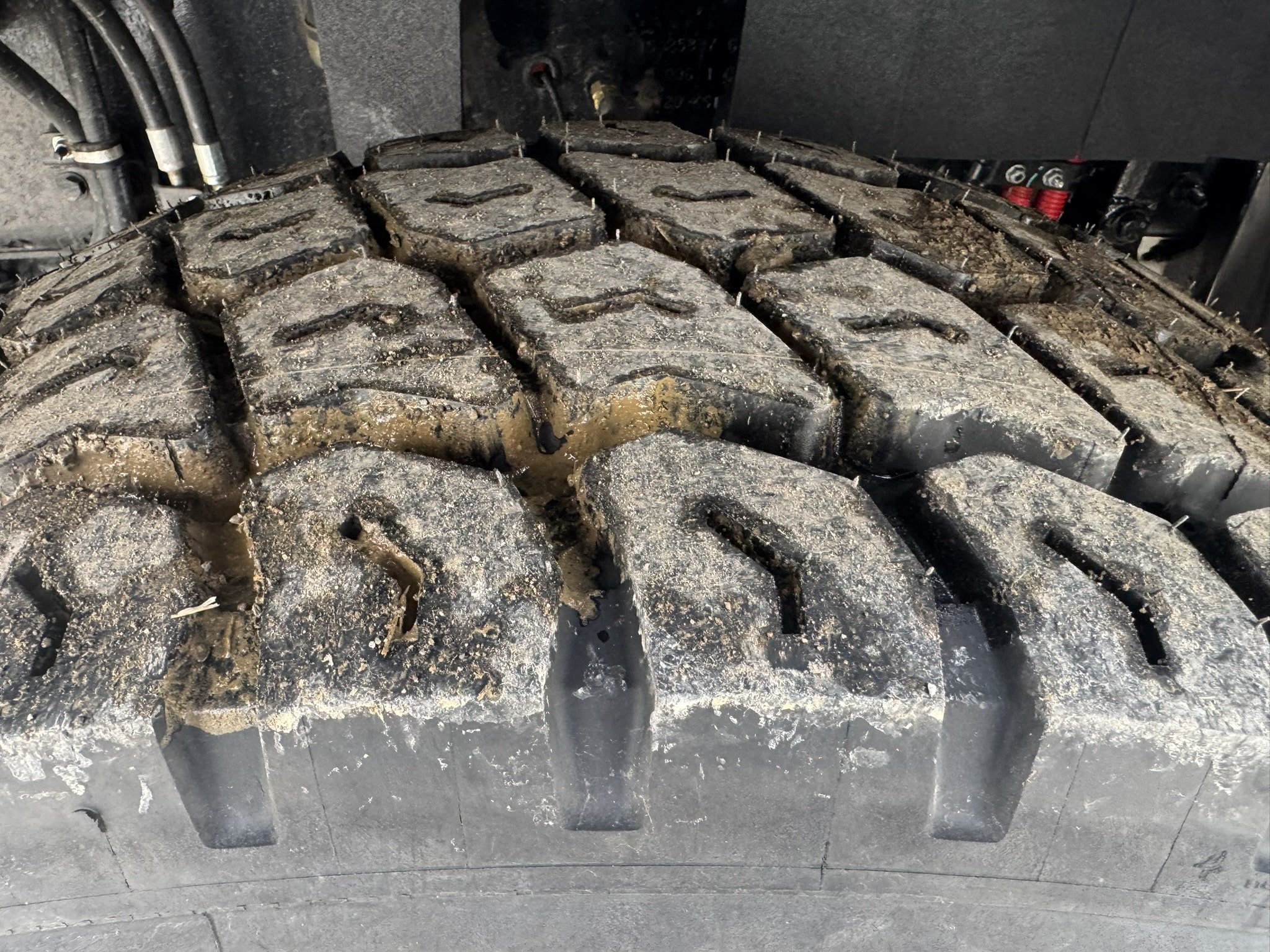

Front Tires: Michelin XZE 425/65R22.5, paired with Accuride 22.5×12.25 aluminum disc wheels.

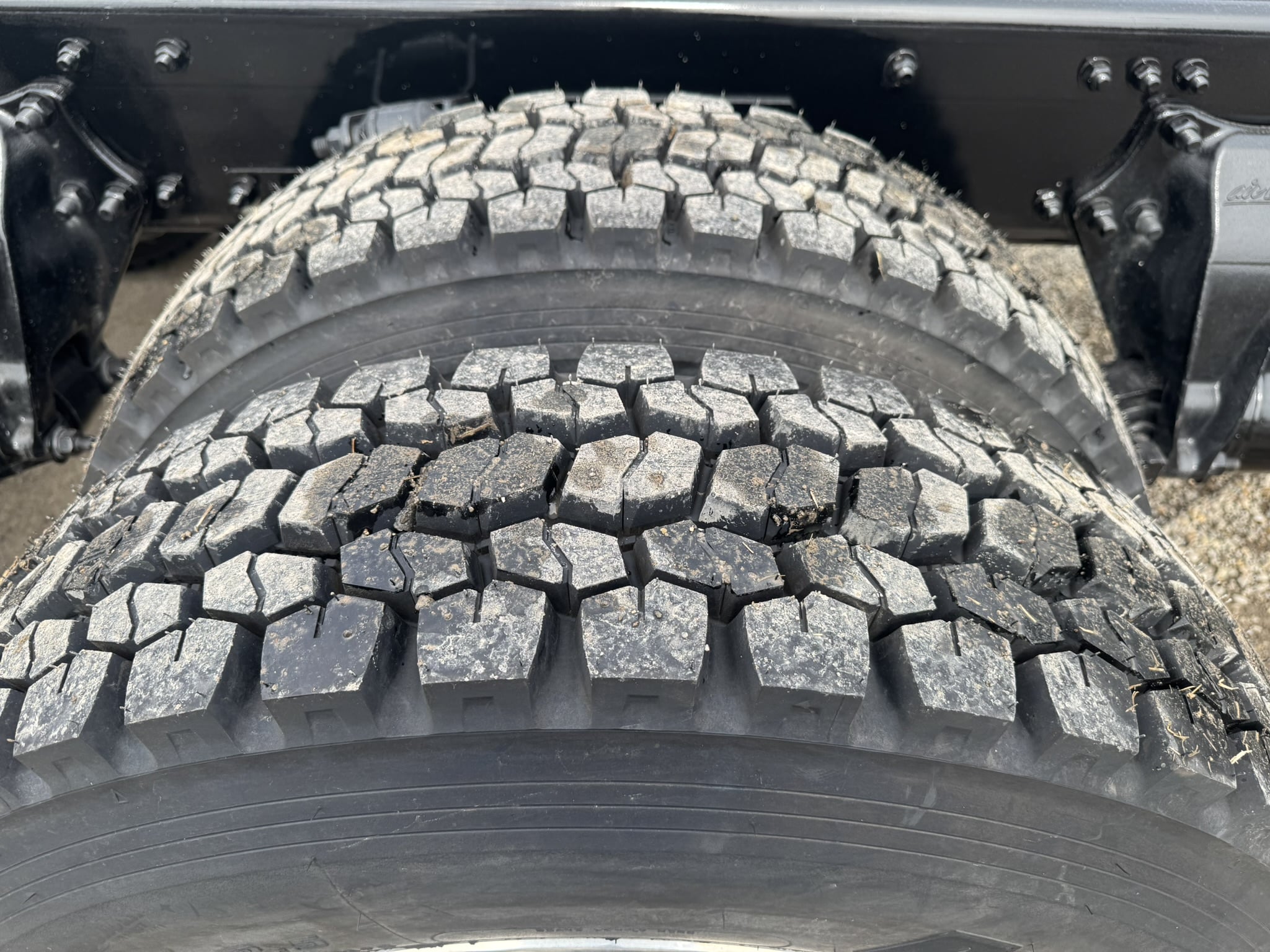

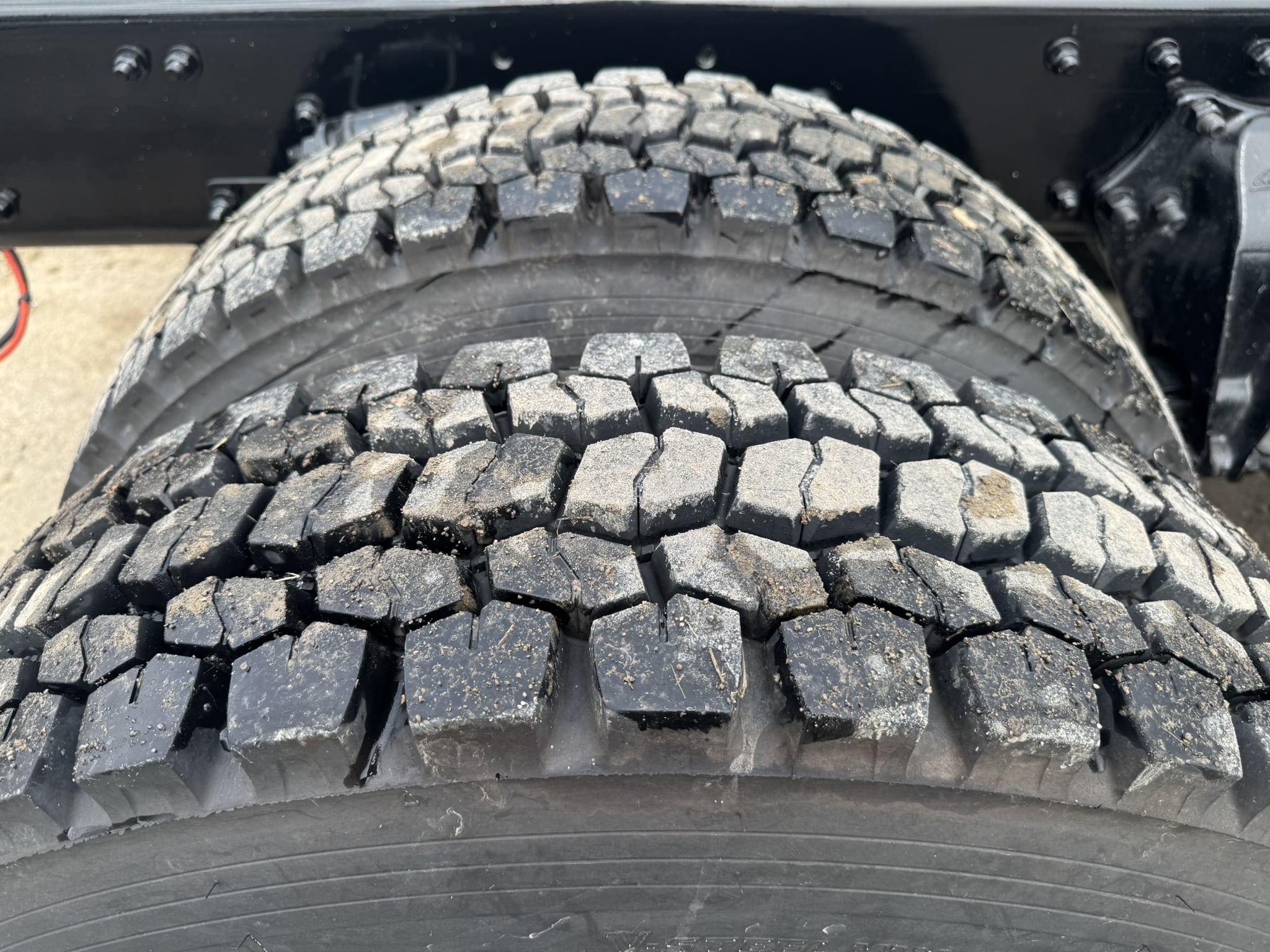

Rear Tires: Bridgestone M799 11R22.5, matched with Accuride 22.5×8.25 aluminum disc wheels.

Dimensions:
CT- 162″
Wheelbase: 227″
Cab to End of Frame: 238″
Cab to Center Front Rear Axle: 202″
Cab to Center Rear Rear Axle: 256″
Trunnion to End of Frame: 76″

Versatility
Ideal for conversions into a dump truck, concrete mixer, tanker, vacuum truck, heavy tow truck, wrecker, or utility vehicle, this Freightliner 114SD Plus is a flexible and reliable choice for any fleet.

This is a brand new unit that sustained minor damage when out for delivery to a new truck dealer. The parts that were damaged were replaced with new factory original parts. Call for details.

SR# 4432
Sale Price: #169,500
