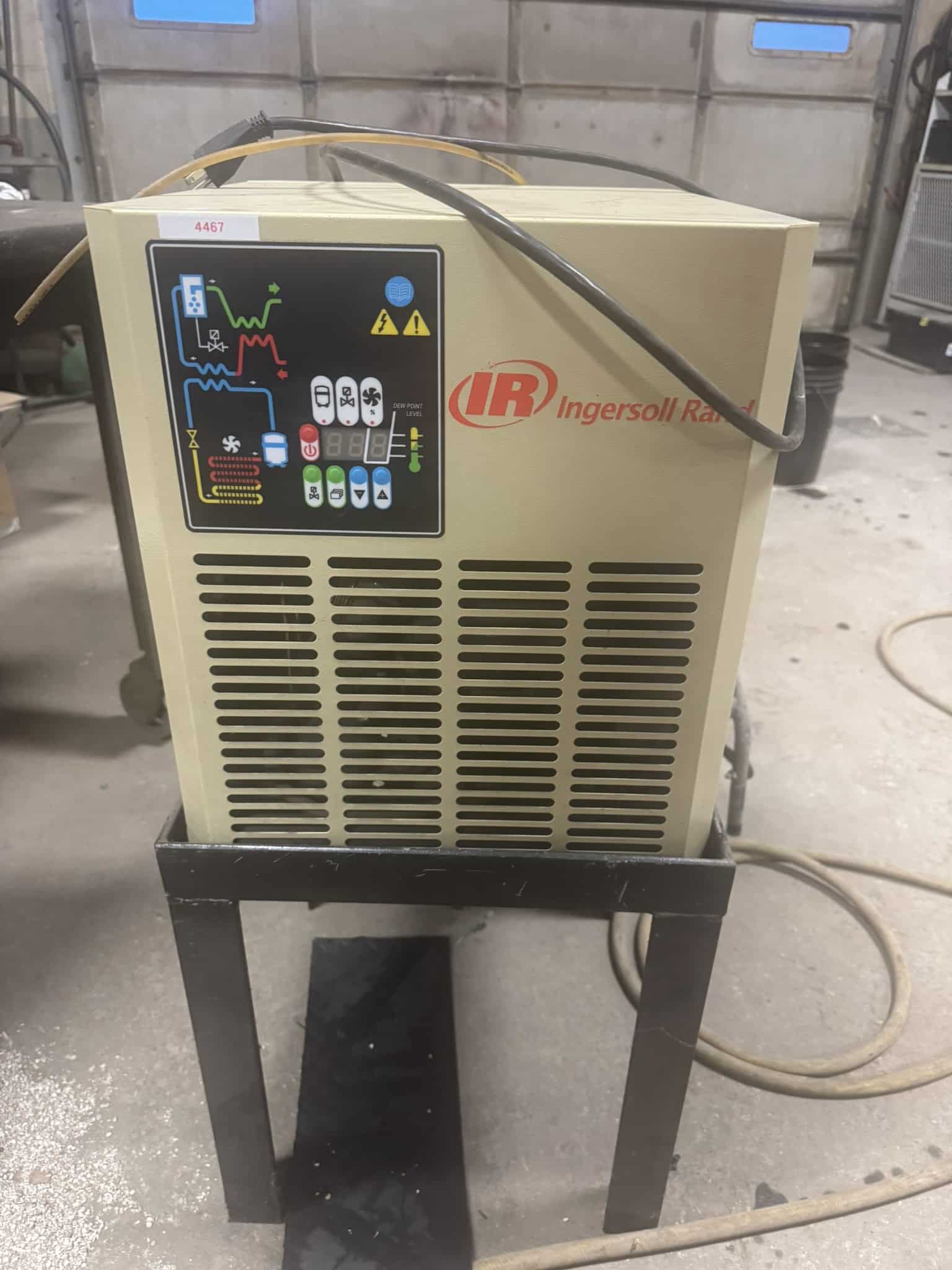

INGERSOLL RAND D42 AIR DRYER

This is a Ingersoll Rand D42 air dryer which is a reliable and efficient solution for removing moisture from compressed air systems by lowering the air temperature and separating condensate, helping protect downstream equipment and improve overall system performance.

Model: D42IN
Maximum Flow Rate: 25 CFM
Electric Power 0,27 kW
In Air Max Temp- 140 Degree F
Ambient Max Temp- 122 Degree F
Air Working Pressure: 101 PSI
Maximum opeating Pressure 203 PSI
Refrigerant: R-134a
Air Inlet/Outlet Size: 1/2″ NPT (Female) standard connection
Drain Type: Programmable electronic auto-drain

Electrical & Power
Voltage: 115V AC, Single- Phaze, 60 HZ
3.6A

SR# 4467
